Запчасти Case 9045B (9-110) - DECALS - FRENCH LANGUAGE, WARNING, DANGER AND MISCELLANEOUS (09) - CHASSIS

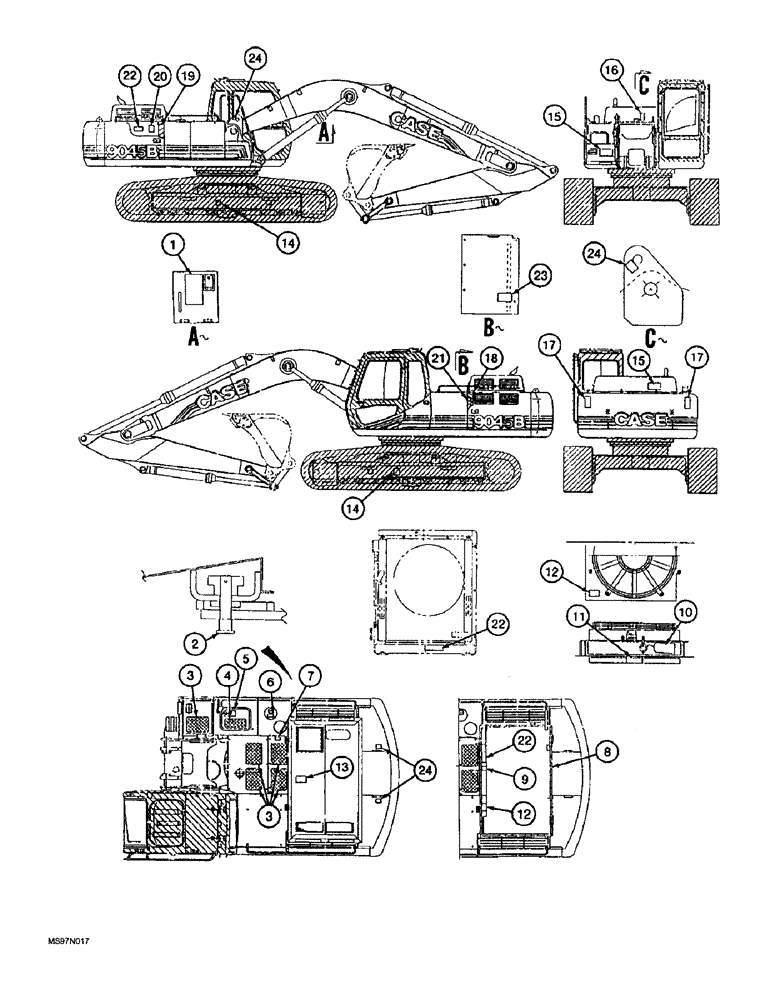

Схема запчастей Case 9045B - (9-110) - DECALS - FRENCH LANGUAGE, WARNING, DANGER AND MISCELLANEOUS (09) - CHASSIS
12
4
15
24
16
17
23
19
24
9
17
8
3
14
11
2
13
20
24
12
6
5
18
22
1
7
10
22
22
14
15
21
3

Артикул

Название

Примечание

Количество

1

165851A1

DECAL

- lubrication chart (English)

1шт.

2

162934A1

LARGE PLATE

PLATE - with adhesive backing, goes on button to release hood

1шт.

3

162935A1

ANTI-SKID STRIP

TAPE - non-skid

5шт.

4

162936A1

ADHESIVE STRIP

TAPE - non-skid, on top of fuel tank

1шт.

5

190489A1

DECAL

- diesel fuel (French)

1шт.

6

190478A1

DECAL

- Caution, hot hydraulic fluid (French)

1шт.

7

158287A1

DECAL

- Danger, starting in gear can cause death (French)

1шт.

8

162937A1

DECAL

TAPE - special, 5400 mm (212-5/8 inch) long

1шт.

9

321-6720

DECAL

- Warning, wrong jumper cable connections to starter terminals (French)

1шт.

10

158280A1

DECAL

TAG - antifreeze notice (French)

1шт.

11

321-6701

DECAL

- Warning, check and service cooling system (French)

1шт.

12

321-4324

DECAL

- Warning, rotating fan and belts (French)

2шт.

13

190483A1

DECAL

- Warning, slippery and unstable surface (French)

1шт.

14

190482A1

DECAL

- Warning, grease under pressure (French)

2шт.

15

158284A1

DECAL

- Warning, stay away from machine if close to power line (French)

2шт.

16

190484A1

DECAL

- Warning, falling engine hood (French)

1шт.

17

158285A1

DECAL

- Danger, keep clear of swinging upper (French)

2шт.

18

162939A1

DECAL

TAPE - special, 790 mm (31-1/8 inch) long

1шт.

19

162940A1

TAPE

- special, 760 mm

1шт.

20

190479A1

DECAL

- to check oil level (French)

1шт.

21

162947A1

ADHESIVE

TAPE - special, 420 mm (16-11/32 inch) long

1шт.

22

190503A1

DECAL

- Warning, hot surfaces (French)

3шт.

23

321-6719

DECAL

- Warning, batteries contain acid and explosive gas (French)

1шт.

24

191342A1

DECAL

- lift only (French)

4шт.

Выбрано товаров: 24
