(9-104) - ESCO BUCKET TOOTH OPTIONS,W/ 1-1/2" LIP ADAPTER,FOR GENL PURPS/HVY DTY BUCKTS

Запчасти Case 9045B (9-104) - ESCO BUCKET TOOTH OPTIONS,W/ 1-1/2" LIP ADAPTER,FOR GENL PURPS/HVY DTY BUCKTS (09) - CHASSIS

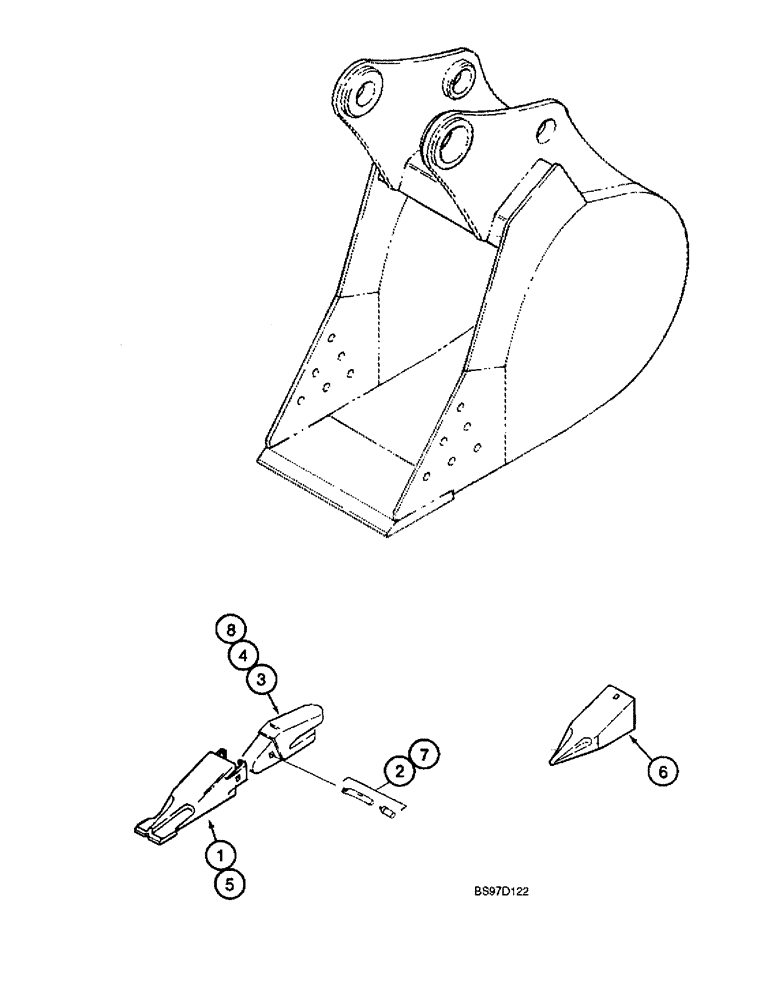

Схема запчастей Case 9045B - (9-104) - ESCO BUCKET TOOTH OPTIONS,W/ 1-1/2" LIP ADAPTER,FOR GENL PURPS/HVY DTY BUCKTS (09) - CHASSIS
5
7
6
4
3
2
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

127560A1

TOOTH

- chisel point

1шт.

2

127561A1

LOCK

-, Serial Range: tooth-shank

1шт.

3

127562A1

ADAPTER

SHANK - tooth, 1-1/2 inch

1шт.

4

127563A1

ADAPTER

SHANK - tooth, 1-1/2 inch, no longer used, order 127562A1

1шт.

5

127565A1

TOOTH

- chisel point, for severe duty buckets

1шт.

6

127566A1

TOOTH

- tiger point, for severe duty buckets

1шт.

7

127567A1

LOCK

- tooth to shank, for severe duty buckets

1шт.

8

127564A1

ADAPTER

SHANK - tooth, 2 inch, for severe duty buckets

1шт.
