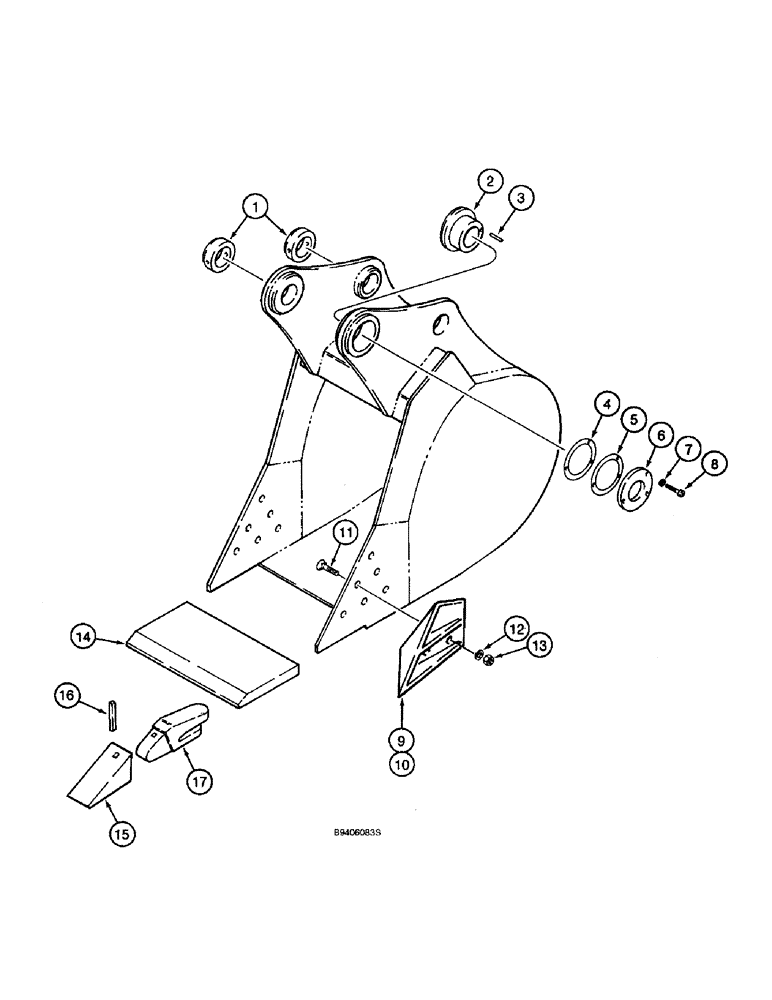

Запчасти Case 9045B (9-086) - CENTRAL FABRICATORS BUCKET, GENERAL PURPOSE AND HEAVY DUTY - STANDARD OR HIGH CAPACITY (09) - CHASSIS

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 0.95 cu. yd., order bucket assembly from Machinery Price List, general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 1.16 cu. yd., order bucket assembly from Machinery Price List, general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.38 cu. yd., order bucket assembly from Machinery Price List, general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1219 mm (48 inch), with 6 teeth, 1.60 cu. yd., order bucket assembly from Machinery Price List, general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1372 mm (54 inch), with 7 teeth, 1.82 cu. yd., order bucket assembly from Machinery Price List, general purpose, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 1.20 cu. yd., order bucket assembly from Machinery Price List, general pupose, high capacity

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 1.48 cu. yd., order bucket assembly from Machinery Price List, general pupose, high capacity

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.75 cu. yd., order bucket assembly from Machinery Price List, general pupose, high capacity

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 4 teeth, 0.95 cu. yd., order bucket assembly from Machinery Price List, heavy duty, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 5 teeth, 1.16 cu. yd., order bucket assembly from Machinery Price List, heavy duty, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.38 cu. yd., order bucket assembly from Machinery Price List, heavy duty, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1219 mm (48 inch), with 6 teeth, 1.60 cu. yd., order bucket assembly from Machinery Price List, heavy duty, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1372 mm (54 inch), with 7 teeth, 1.82 cu. yd., order bucket assembly from Machinery Price List, heavy duty, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 762 mm (30 inch), with 3 teeth, 1.20 cu. yd., order bucket assembly from Machinery Price List, heavy duty, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 914 mm (36 inch), with 4 teeth, 1.48 cu. yd., order bucket assembly from Machinery Price List, heavy duty, standard

1шт.

Order bucket assembly from Machinery Price List

1шт.

REF

INSTRUCTION

BUCKET - 1067 mm (42 inch), with 5 teeth, 1.75 cu. yd., order bucket assembly from Machinery Price List, heavy duty, high capacity, Includes: Ref. 1 - 17

1шт.

Order bucket assembly from Machinery Price List

1шт.

1

122688A1

BUSHING

- bucket, with locking collar, assembly, heavy duty, high capacity

2шт.

2

122684A1

BUSHING

- bucket, adjustable, assembly, heavy duty, high capacity, Includes: Ref. 3

1шт.

3

37-1816

DOWEL,1/2" x 1"

PIN - dowel, 1/2 x 1 inch, hardened, bucket assembly, heavy duty, high capacity

1шт.

4

122686A1

SHIM

- plate mounting, .02 inch thick, bucket assembly, heavy duty, high capacity

1шт.

5

122685A1

SHIM

- plate mounting, .039 inch thick, bucket assembly, heavy duty, high capacity

1шт.

6

122687A1

RETAINER

PLATE - bushing, bucket assembly, heavy duty, high capacity

1шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Bucket assembly, Heavy duty, High capacity 5/8"

3шт.

8

361-36232

HEX SOC SCREW,5/8" - 11 x 2"

BOLT - hex socket, 5/8 NC x 2 inch, bucket assembly, heavy duty, high capacity

3шт.

112222A1

HALF BLADE

KIT - edge, side cutting, 6 inch, bucket assembly, heavy duty, high capacity, Includes: Ref. 9 - 13

1шт.

9

122682A1

CUTTER

EDGE - cutting, bucket, right-hand side, bucket assembly, heavy duty, high capacity

1шт.

10

122683A1

CUTTER

EDGE - cutting, bucket, left-hand side, bucket assembly, heavy duty, high capacity

1шт.

11

320-21448

CARRIAGE BOLT,#3, 7/8" - 9 x 3", Gr 8

BOLT - plow, #3 head, 7/8 NC x 3 inch, grade 8, bucket assembly, heavy duty, high capacity

6шт.

12

392-21088

LOCK WASHER,7/8"

bucket assembly, heavy duty, high capacity 7/8"

6шт.

13

329-1014

NUT,7/8"-9, G8

Bucket assembly, heavy duty, high capacity 7/8"-9, G8

6шт.

14

125006A1

EDGE, CUTTING

EDGE - cutting, center, 762 mm (30 inch) bucket

1шт.

14

125007A1

EDGE, CUTTING

EDGE - cutting, center, 914 mm (36 inch) bucket

1шт.

14

125008A1

EDGE, CUTTING

EDGE - cutting, center, 1067 mm (42 inch) bucket

1шт.

14

125009A1

EDGE, CUTTING

EDGE - cutting, center, 1219 mm (48 inch) bucket

1шт.

14

125027A1

EDGE, CUTTING

EDGE - cutting, center, 1372 mm (54 inch) bucket

1шт.

15

122674A1

TOOTH

- standard point, cutting edge

1шт.

See Figures 9-102 and 9-104 for point, pin and shank options.

1шт.

16

122675A1

FASTENER

PIN - flex, point to shank, cutting edge

1шт.

See Figures 9-102 and 9-104 for point, pin and shank options.

1шт.

17

122676A1

BUCKET TOOTH SHANK

SHANK - tooth, 1-1/2 inch, cutting edge

1шт.

See Figures 9-102 and 9-104 for point, pin and shank options.

1шт.
