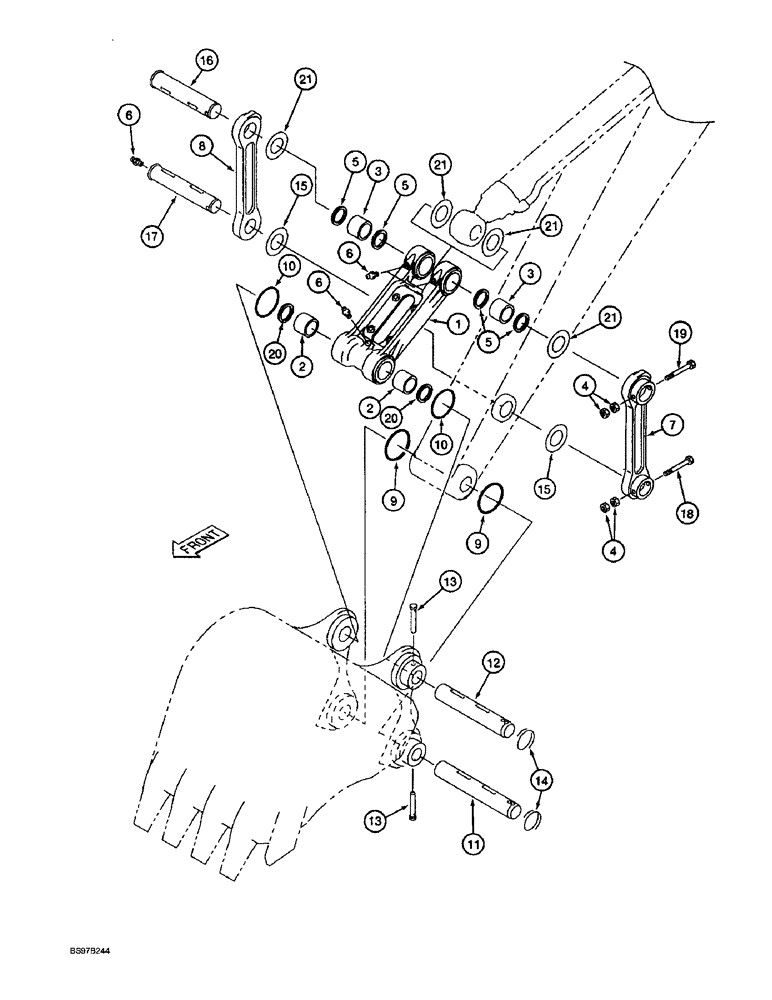

Запчасти Case 9045B (9-084) - ARMS LINKAGE (09) - CHASSIS

1

164442A1

BUCKLE

LINK ASSEMBLY - bucket, standard, ductile iron, Includes: Ref. 2 and 3

1шт.

1

164516A1

POWER ARM

LINK ASSEMBLY - bucket, heavy duty, steel, Includes: Ref. 2 and 3

1шт.

2

159449A1

BUSHING,90mm ID x 105mm OD x 90mm L

- center link, bucket end

2шт.

3

159450A1

RING,90mm ID x 105mm OD x 80mm L

BUSHING - center link, cylinder end

2шт.

4

829-11420

NUT,M20 x 1.5, Cl 10

- hex, 20 mm - 1.5, class 10

4шт.

5

159648A1

SEAL,90mm ID x 105mm OD x 5mm Thk

SEAL - dust

4шт.

6

153630A1

LUBE NIPPLE

FITTING - grease, straight

4шт.

7

165322A1

LINK

- arm, left-hand, standard, ductile iron

1шт.

7

164518A1

LINKAGE YOKE

LINK - arm, left-hand, heavy duty, steel

1шт.

8

165321A1

LINK

- arm, right-hand, standard, ductile iron

1шт.

8

164517A1

LINKAGE YOKE

LINK - arm, right-hand, heavy duty, steel

1шт.

9

153690A1

O-RING

- seal, bucket pin seal

2шт.

10

153689A1

O-RING

- seal, bucket pin seal

2шт.

11

159459A1

PIN

- attaching, Serial Range: bucket-boom

1шт.

12

153653A1

PIN

- bucket, at bucket

1шт.

13

153650A1

PIN,20mm OD x 134mm L

PIN - locking

2шт.

14

153651A1

RING

- retaining

2шт.

15

158459A1

SHIM,81mm ID x 150mm OD x 1.2mm Thk

- .05 inch thick, bucket link

1шт.

16

159443A1

PIN,90mm OD x 449mm L

- attaching, arm end, standard, ductile steel

1шт.

16

164519A1

PIN,95mm OD x 449mm L

- attaching, arm end, heavy duty, steel

1шт.

17

159444A1

PIN,80mm OD x 449mm L

- attaching, link arms at arm

1шт.

18

514-1221

BOLT,Hex, M20 x 1.5 x 160mm, Cl 10.9

BOLT - hex, 20 - 1.5 x 160 mm, class 10.9

1шт.

19

514-1222

BOLT,Hex, M20 x 1.5 x 170mm, Cl 10.9

- hex, 20 - 1.5 x 170 mm, class 10.9

1шт.

20

159648A1

SEAL,90mm ID x 105mm OD x 5mm Thk

SEAL - dust

2шт.

21

159744A1

SHIM

- .05 inch thick, bucket link

1шт.
