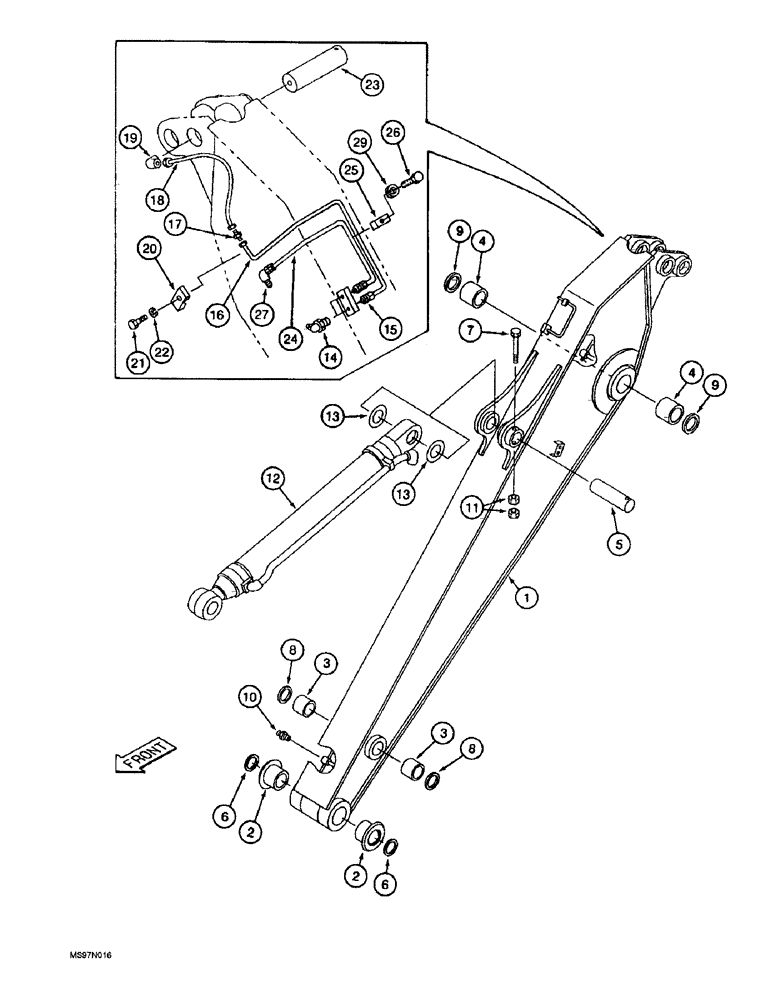

Запчасти Case 9045B (9-083A) - ARM AND CYLINDER, 4.0 M (13 FT. 3 INCH) ARM (09) - CHASSIS

1

165997A1

DIPPER

ARM - 4.0 M (13 ft 3 inch) long, with bushings, Includes: Ref. 2 - 4

1шт.

2

153654A1

BUSHING,90mm ID x 175mm OD x 90mm L

- arm, at bucket

2шт.

3

150264A1

BUSHING,80mm ID x 95mm OD x 65mm L

- arm, at bucket link

2шт.

4

159448A1

BUSHING,100mm ID x 115mm OD x 100mm L

- arm, at boom

2шт.

5

165857A1

PIN

- attaching, bucket cylinder

1шт.

6

159648A1

SEAL,90mm ID x 105mm OD x 5mm Thk

SEAL - dust

2шт.

7

514-1221

BOLT,Hex, M20 x 1.5 x 160mm, Cl 10.9

BOLT - hex, 20 - 1.5 x 160 mm, class 10.9

1шт.

8

159647A1

SEAL,80mm ID x 95mm OD x 5mm Thk

- dust

2шт.

9

159649A1

SEAL,100mm ID x 115mm OD x 5mm Thk

- dust

2шт.

10

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

11

829-11420

NUT,M20 x 1.5, Cl 10

- hex, 20 mm - 1.5, class 10

2шт.

12

159452A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 135 (5-5/16) ID x 1073 mm (42-1/4 inch) stroke, bucket - parts list Figure 8-134

1шт.

13

159741A1

SHIM

- 0.05 inch (1.27 mm) thick

1шт.

14

153630A1

LUBE NIPPLE

FITTING - grease, straight

2шт.

15

152599A1

MULTIPOLE CONNECTOR

CONNECTOR - straight, special

1шт.

16

165996A1

TUBE,6 mm ID, 8 mm OD

- lubrication, arm cylinder to arm

1шт.

17

152032A1

UNION

CONNECTOR - straight

1шт.

18

165994A1

HYDRAULIC HOSE

Lubrication

1шт.

19

163319A1

ELBOW

- 90 degree, special

1шт.

20

151504A1

CLAMP

- lubrication line, single type

1шт.

22

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

23

165993A1

PIN

- attaching, arm cylinder rod mounting

1шт.

24

165995A1

TUBE,6 mm ID, 8 mm OD

- lubrication, arm to boom

1шт.

25

153774A1

CLAMP

- double lubrication line

1шт.

27

152627A1

ELBOW

- 90 degree, special

1шт.

21

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

Full Thd Hex, M8 x 30, 10.9

2шт.

26

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, class 10.9

1шт.
