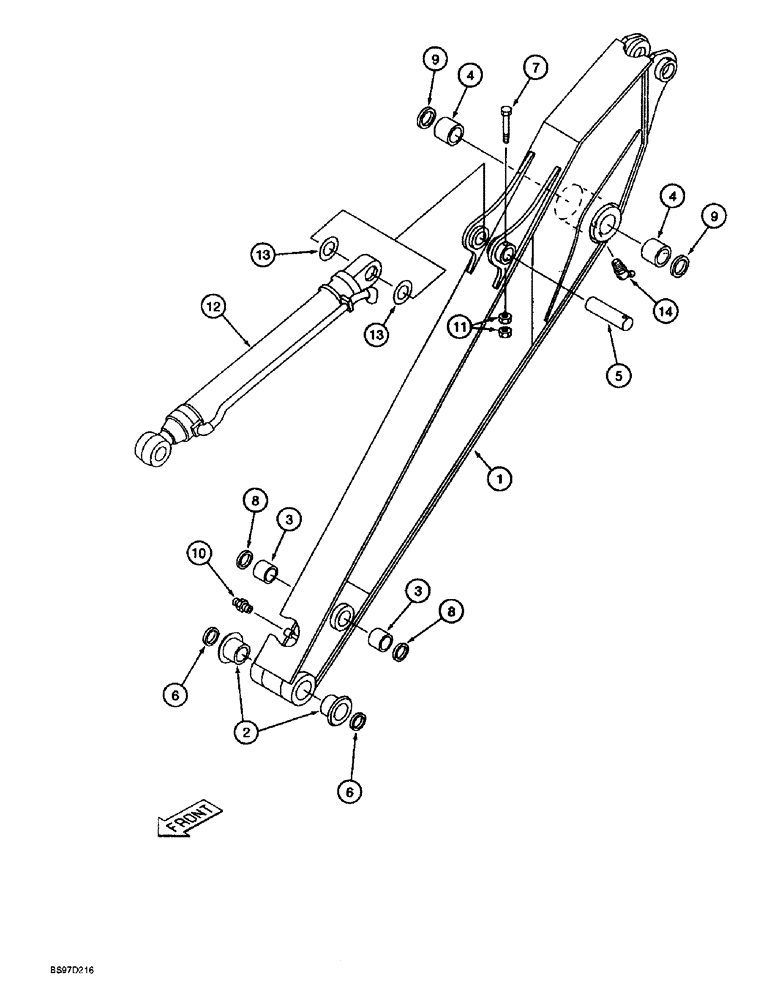

Запчасти Case 9045B (9-082) - ARM AND CYLINDER, 3.4 M (11 FT. 2 INCH) ARM (09) - CHASSIS

1

165856A1

DIPPER

ARM - 3.4 M (11 ft 2 inch) long, with bushings, Includes: Ref. 2 - 4

1шт.

2

153654A1

BUSHING,90mm ID x 175mm OD x 90mm L

- arm, at bucket

2шт.

3

150264A1

BUSHING,80mm ID x 95mm OD x 65mm L

- arm, at bucket link

2шт.

4

159448A1

BUSHING,100mm ID x 115mm OD x 100mm L

- arm, at boom

2шт.

5

165857A1

PIN

- attaching, bucket cylinder

1шт.

6

159648A1

SEAL,90mm ID x 105mm OD x 5mm Thk

SEAL - dust

2шт.

7

514-1221

BOLT,Hex, M20 x 1.5 x 160mm, Cl 10.9

BOLT - hex, 20 - 1.5 x 160 mm, class 10.9

1шт.

8

159647A1

SEAL,80mm ID x 95mm OD x 5mm Thk

- dust

2шт.

9

159649A1

SEAL,100mm ID x 115mm OD x 5mm Thk

- dust

2шт.

10

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

11

829-11420

NUT,M20 x 1.5, Cl 10

- hex, 20 mm - 1.5, class 10

2шт.

12

159452A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 135 (5-5/16) ID x 1073 mm (42-1/4 inch) stroke, bucket - parts list figures 8-180 and 8-182

1шт.

13

159741A1

SHIM

- 0.05 inch (1.27 mm) thick

1шт.

14

153631A1

LUBE NIPPLE,1/8"-27 NPT

FITTING - grease, 45 degree

1шт.
