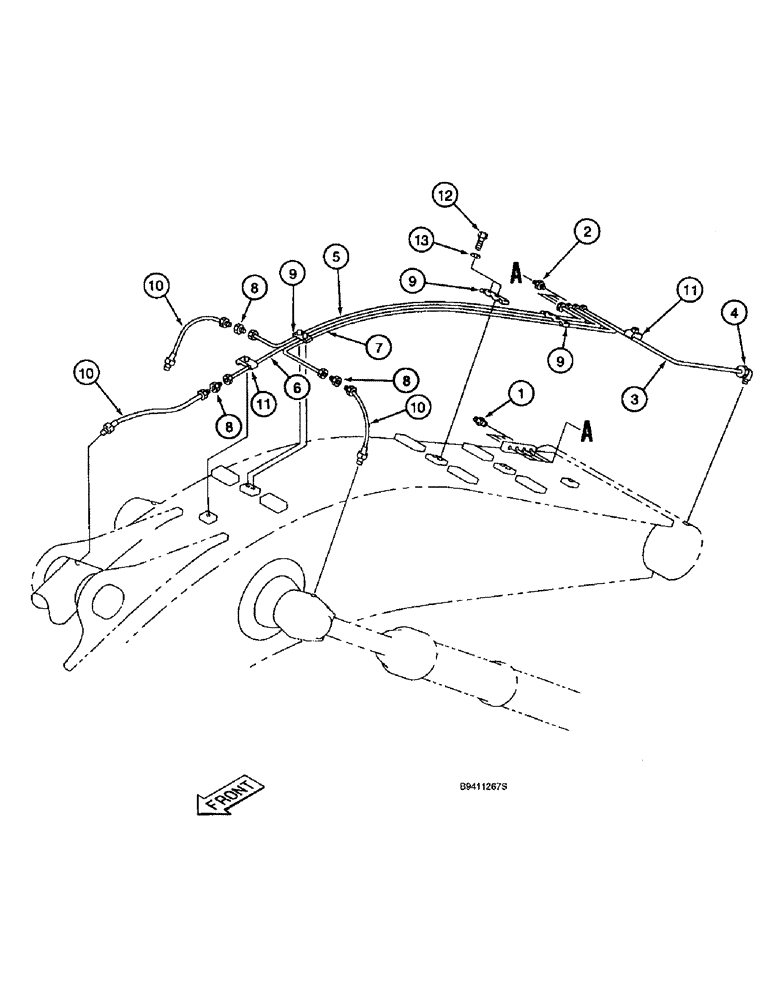

Запчасти Case 9045B (9-080) - BOOM LUBRICATION LINES (09) - CHASSIS

1

153630A1

LUBE NIPPLE

FITTING - grease, straight

4шт.

2

152599A1

MULTIPOLE CONNECTOR

CONNECTOR - straight, special

4шт.

3

159468A1

TUBE,509.5, 277.5 mm Length

- grease

1шт.

4

152627A1

ELBOW

- 90 degree, special

1шт.

5

158649A1

TUBE

- grease

1шт.

6

159466A1

TUBE,6 mm ID, 8 mm OD

- grease

1шт.

7

159467A1

TUBE

- grease

1шт.

8

152032A1

UNION

CONNECTOR - straight

3шт.

9

151497A1

CLAMP

- lubrication line, triple type

3шт.

10

152776A1

HOSE,560.00 mm

- Nylon 560.00 mm

3шт.

11

151504A1

CLAMP

- lubrication line, single type

2шт.

13

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

12

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

Full Thd Hex, M8 x 30, 10.9

8шт.
