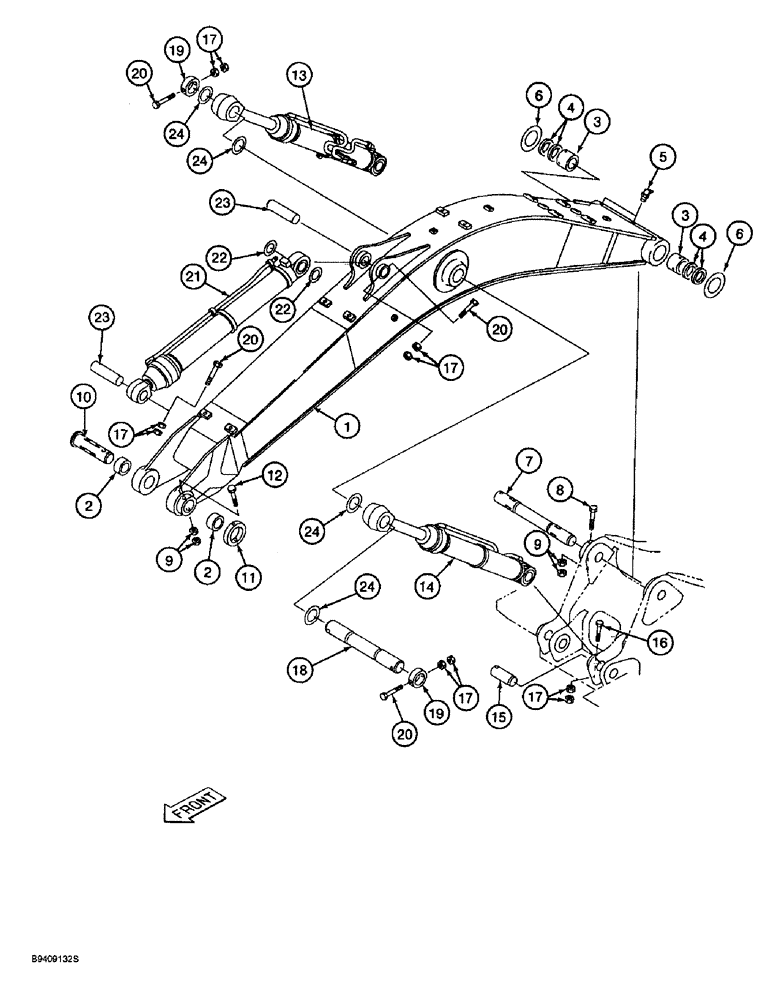

Запчасти Case 9045B (9-078) - BOOM, MOUNTING PINS AND CYLINDERS (09) - CHASSIS

1

165855A1

BOOM

ASSEMBLY - excavator, Includes: Ref. 2 and 3

1шт.

2

165858A1

BUSHING

- at arm (replaces 159448A1 )

2шт.

dims on 165858a1---5-1/8" O.D. x 3-15/16" ID x 3-9/16" length.

1шт.

3

159448A1

BUSHING,100mm ID x 115mm OD x 100mm L

- pin, at turntable (replaces 159460A1 )

2шт.

4

159649A1

SEAL,100mm ID x 115mm OD x 5mm Thk

- dust

4шт.

5

153631A1

LUBE NIPPLE,1/8"-27 NPT

FITTING - grease, 45 degree

2шт.

6

151231A1

SHIM

- 101 ID x 219 O.D. x 1.2 mm, Serial Range: boom-turntable

1шт.

7

159442A1

PIN

- attaching, Serial Range: boom-turntable

1шт.

8

514-1502

BOLT,Hex, M30 x 2 x 200mm, Cl 10.9

- hex, 30 - 2.0 x 200 mm. class 10.9

1шт.

9

825-11330

NUT,M30 x 2, Cl 8

- hex, 30 mm - 2

4шт.

10

165859A1

PIN

- attaching, Serial Range: boom-arm

1шт.

11

159461A1

COLLAR CLAMP

COLLAR - pin retaining

1шт.

12

514-1503

BOLT,Hex, M30 x 2 x 230mm, Cl 10.9

- hex, 30 - 2.0 x 230 mm, class 10.9

1шт.

13

165866A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 130 (5-1/8) ID x 1278 mm (50-3/16 inch) stroke, boom, right-hand, models without load hold, parts list figures 8-120 and 8-122

1шт.

Models without load hold only.

1шт.

13

162815A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 130 (5-1/8) ID x 1278 mm (50-3/16 inch) stroke, boom, right-hand, models with load hold, parts list figure 8-124

1шт.

Models with load hold only.

1шт.

14

165866A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 130 (5-1/8) ID x 1278 mm (50-3/16 inch) stroke, boom, left-hand, models without load hold, parts list figures 8-120 and 8-122

1шт.

Models without load hold only.

1шт.

14

162815A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 130 (5-1/8) ID x 1278 mm (50-3/16 inch) stroke, boom, left-hand, models with load hold, parts list figure 8-124

1шт.

Models with load hold only.

1шт.

15

159446A1

PIN,90mm OD x 261mm L

- attaching, boom cylinder at frame

2шт.

16

514-1222

BOLT,Hex, M20 x 1.5 x 170mm, Cl 10.9

- hex, 20 - 1.5 x 170 mm, class 10.9

2шт.

17

829-11420

NUT,M20 x 1.5, Cl 10

- hex, 20 mm - 1.5, class 10

12шт.

18

159445A1

PIN

- attaching, boom cylinder at boom

1шт.

19

159440A1

COLLAR

- pin retaining

2шт.

20

514-1222

BOLT,Hex, M20 x 1.5 x 170mm, Cl 10.9

- hex, 10 - 1.5 x 170 mm, class 10.9

4шт.

21

165860A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 160 (6-5/16) ID x 1621 mm (63-3/4 inch) stroke, arm, parts list figures 8-130 and 8-132

1шт.

22

159451A1

SHIM

- special, arm, Serial Range: cylinder-boom

2шт.

23

165857A1

PIN

- attaching, used on the rod end of the arm cylinder on models with 3.4 M (11 ft. 2 inch) arm and on the closed end of the arm cylinder for all applications

1-2шт.

23

165993A1

PIN

- attaching, used on the rod end of the arm cylinder on models with 4.0 M (13 ft. 3 inch) arm only

1шт.

24

159458A1

ADJUSTING PLATE

SHIM - 0.13 mm (.005 inch), boom, Serial Range: cylinder-boom

4шт.
