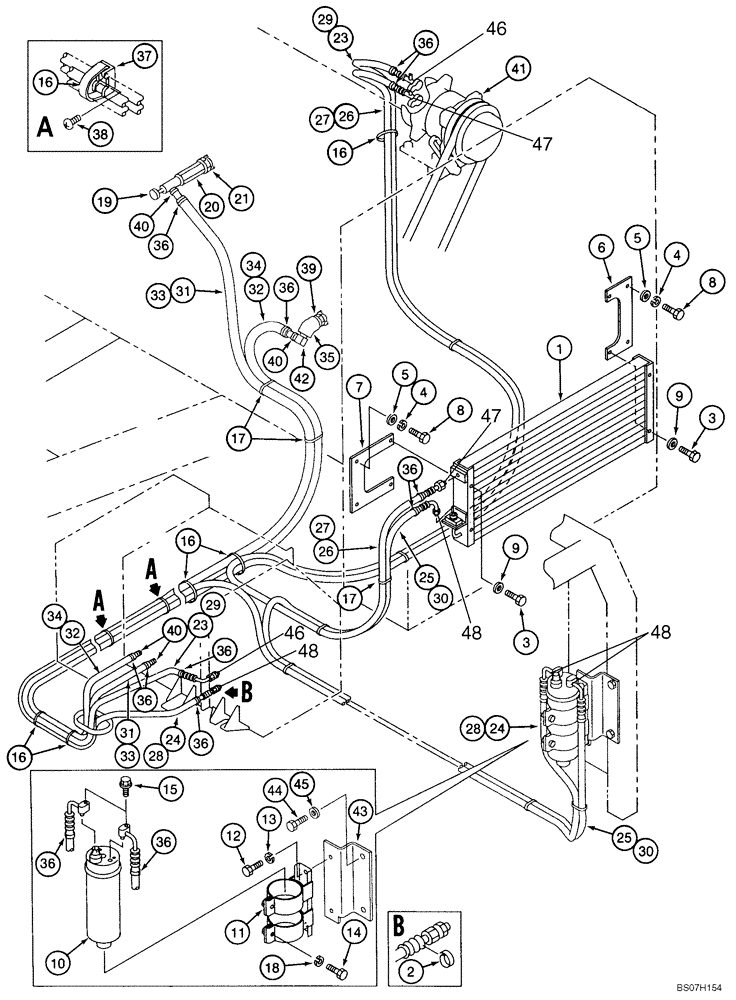

Запчасти Case 9045B (9-066) - AIR CONDITIONING WITH HEATER AND HOSES (09) - CHASSIS

1

159646A1

CONDENSER

- air conditioner

1шт.

2

157294A1

TAPE

- special, refrigerant, if used

1шт.

3

827-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

- hex, 8 - 1.25 x 55 mm, class 10.9

4шт.

4

892-11010

LOCK WASHER,M10

4шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

4шт.

6

162927A1

BRACKET

- condenser

1шт.

7

162928A1

BRACKET

- condenser

1шт.

8

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

6шт.

9

153081A1

WASHER

- flat, special

4шт.

10

159634A1

RECEIVER-DRYER

RECEIVER-DRIER - air conditioning

1шт.

10

KHR3751

RECEIVER-DRYER

P.I.N. DAC0452172 AND AFTER (includes high/low press switch)

1шт.

11

159635A1

SUPPORT

BRACKET - receiver-drier

1шт.

12

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

13

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

14

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

2шт.

15

162043A1

BOLT,Spcl, M6

BOLT - special

2шт.

16

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

17

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

1шт.

18

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

19

152664A1

VALVE

- water shut-off

1шт.

20

151110A1

BUSHING

- reducer

1шт.

21

151588A1

BUSHING

ADAPTER - straight, special

1шт.

23

162932A1

HOSE,4700.00 mm

1шт.

24

163580A1

A/C HOSE,3500.00 mm

- 3500.00 mm

1шт.

25

159641A1

HOSE,2200.00 mm

1шт.

26

162931A1

HOSE,4000.00 mm

1шт.

27

162933A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 3400 mm (133-7/8 inch) long

1шт.

28

151563A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 3800 mm (149-5/8 inch) long

1шт.

29

157922A1

TUBE

SLEEVE - corrugated, 4300 mm (167-5/16 inch) long

1шт.

30

150776A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 2000 mm (78-3/4 inch) long

1шт.

31

151544A1

PLASTIC-RUBBER TUBE,22 mm ID, 27 mm OD, 450 mm Length

SLEEVE - corrugated, 3800 mm (149-5/8 inch) long

1шт.

32

151544A1

PLASTIC-RUBBER TUBE,22 mm ID, 27 mm OD, 450 mm Length

SLEEVE - corrugated, 3800 mm (149-5/8 inch) long

1шт.

33

150827A1

HOSE,13.00 mm ID x 4000.00 mm

From Heater Back to Engine 13.00 mm ID x 4000.00 mm

1шт.

34

150827A1

HOSE,13.00 mm ID x 4000.00 mm

1шт.

35

153587A1

HYDROMETER

ELBOW - 45 degree, special

1шт.

36

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

24шт.

37

150860A1

COLLAR

BRACKET - support

8шт.

38

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

8шт.

39

151697A1

NIPPLE, LUBE

NIPPLE - special

1шт.

40

157271A1

CLIP

CLAMP - adjustable

4шт.

41

REF

INSTRUCTION

COMPRESSOR - air conditioner, see page 9-85

1шт.

42

150383A1

ELBOW

- 90 degree, special

1шт.

43

162929A1

BRACKET

- mounting, receiver-drier

1шт.

44

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

2шт.

45

150811A1

WASHER

- flat, special, 12 mm

2шт.

46

169052A1

O-RING

2шт.

47

169053A1

O-RING

2шт.

48

169054A1

O-RING

4шт.
