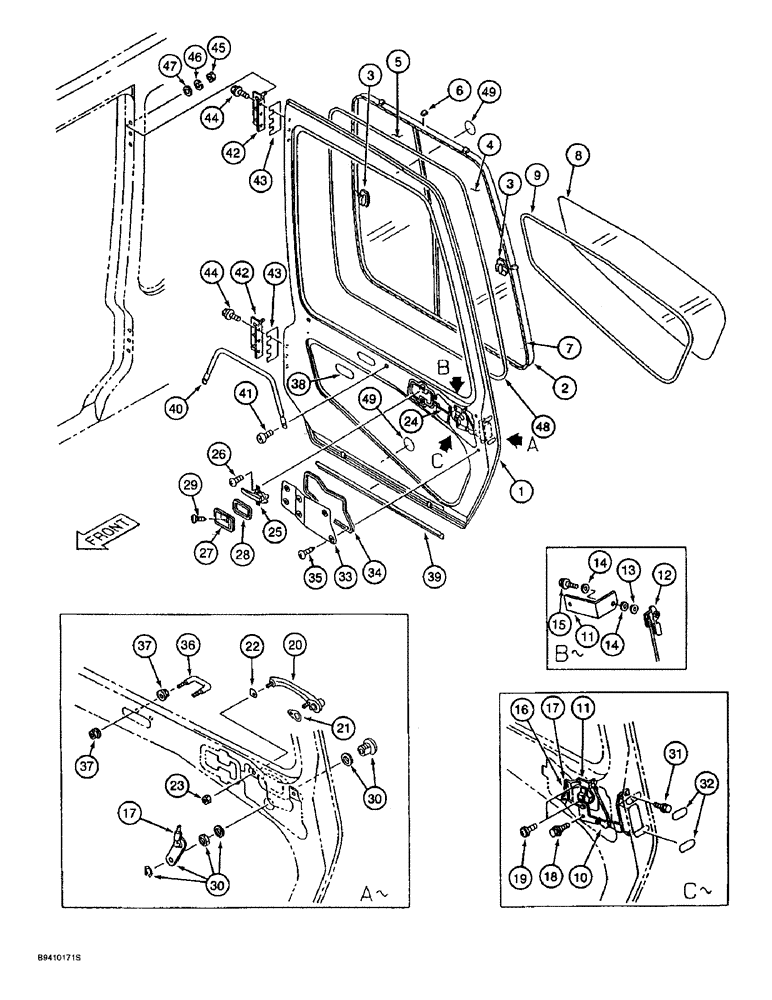

Запчасти Case 9045B (9-064) - CAB DOOR (09) - CHASSIS

164948A1

CAB

ASSEMBLY - operator's, includes all parts on Figures 9-54 - 9-64, Includes: Ref. 1 - 49

1шт.

166158A1

DOOR ASSY.

DOOR ASSEMBLY - cab, Includes: Ref. 1 - 49, Replaces 162170A1

1шт.

1

167464A1

CABIN DOOR

DOOR - cab, Replaces 159587A1

1шт.

162173A1

WINDOW ASSY

WINDOW ASSEMBLY - upper, Includes: Ref. 2 - 5

1шт.

In the text between Ref. 1 and Ref. 2 is 162173A1 upper window assy. The strip that runs vertically down the center of the window (strip that separates the two sliding windows as they pass each other) is not serviced separately.

1шт.

2

NSS

NOT SOLD SEPARAT

FRAME - window

1шт.

3

162829A1

LOCK

- window

2шт.

4

162180A1

WINDOW

- sliding, plastic, front

1шт.

5

162181A1

WINDOW

- sliding, plastic, rear

1шт.

6

159543A1

SPACER

- sash

8шт.

7

159590A1

DOOR SEAL

- rubber, window frame

1шт.

8

162182A1

WINDOW

- plastic, door, lower

1шт.

9

159551A1

WEATHERSTRIP

STRIP - weather

1шт.

10

159554A1

LATCH ASSY.

LOCK - door

1шт.

11

159555A1

SUPPORT

BRACKET - angled strap, link mounting

1шт.

12

159560A1

LEVER

LINK - connecting, outer handle

1шт.

13

159582A1

WASHER

- special

1шт.

14

159583A1

WASHER

- special

2шт.

15

159584A1

FLANGE BOLT,Shldr

BOLT - flange, special

1шт.

16

159559A1

LATCH

LOCK - manual

1шт.

17

159556A1

PITMAN

PIVOT - rod, door handle

2шт.

18

159574A1

FLANGE BOLT,Shldr

BOLT - flange, special

1шт.

19

159545A1

SELF-TAP SCREW

- self-tapping, special

2шт.

20

159566A1

HANDLE

- door, outer

1шт.

21

159567A1

SPACER

SEAT - handle mounting

1шт.

22

159568A1

SPACER

SEAT - handle mounting

1шт.

23

159585A1

NUT

- flange, special

2шт.

24

159557A1

THREADED ROD

LINK - connecting

1шт.

25

159563A1

HANDLE

- door, inner

1шт.

26

159589A1

SCREW,Pan Hd

- pan head, special

2шт.

27

159561A1

BEZEL

COVER - inside handle, door

1шт.

28

159562A1

LINING

GASKET - cover

1шт.

29

159576A1

SELF-TAP SCREW,Oval Hd

- self-tapping, special

1шт.

30

159558A1

LOCK ASSY

LOCK ASSEMBLY - outer keyed

1шт.

31

161377A1

BOLT

BOLT - special, door lever

4шт.

32

159572A1

SEAL

GASKET - latch mounting

2шт.

33

159552A1

COVER

PANEL - access, door latch

1шт.

34

159553A1

DOOR SEAL

GASKET - panel

1шт.

35

159545A1

SELF-TAP SCREW

Replaces 159577A1

6шт.

36

159570A1

U-BOLT

BOLT - U-type

1шт.

37

159579A1

NUT

- special

4шт.

38

159571A1

GROMMET

- rubber

1шт.

39

159588A1

DOOR SEAL

SEAL - rubber

1шт.

40

159569A1

HANDLE

- grab

1шт.

41

159586A1

BOLT,Hex Skt, M10 x 1.5 x 25mm

BOLT - special

2шт.

42

159564A1

HINGE

- door

2шт.

43

159565A1

ADJUSTING PLATE

SHIM - hinge mounting

2шт.

44

158544A1

BOLT

- special

6шт.

45

159578A1

NUT

- special

6шт.

46

159580A1

LOCK WASHER

- lock

6шт.

47

159581A1

WASHER

- flat

6шт.

48

159549A1

SEAL

TRIM - window

1шт.

49

159573A1

DOOR SEAL

BUMPER - door stop

2шт.
