Запчасти Case 9045B (9-060) - CAB FRONT WINDOW ASSEMBLY (09) - CHASSIS

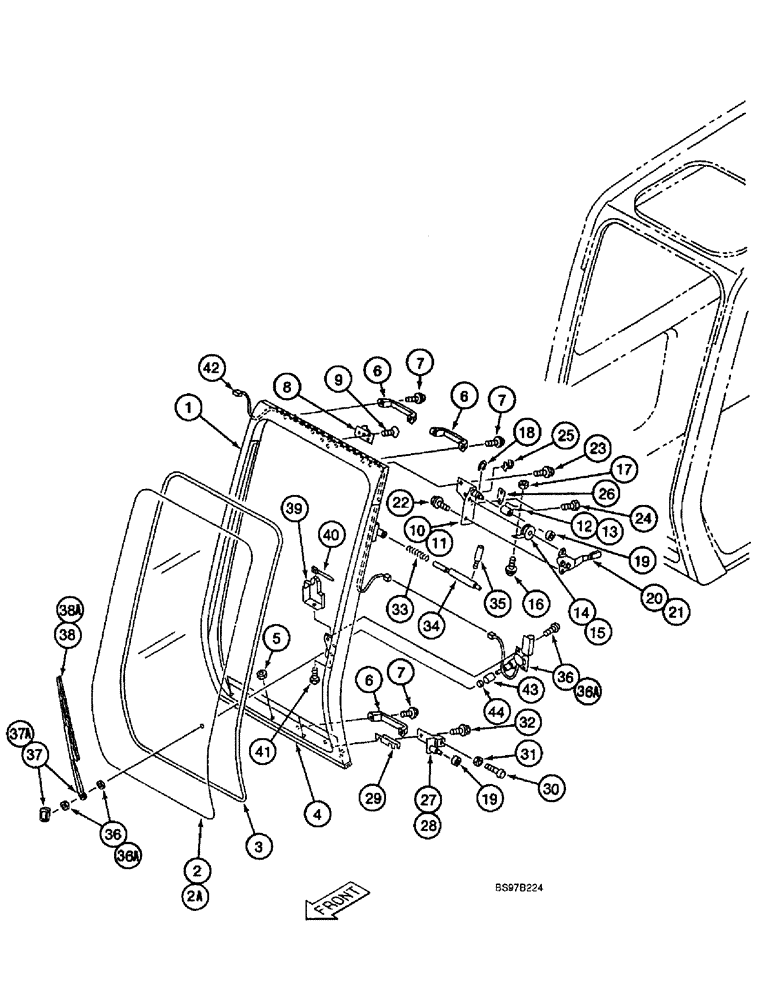

Схема запчастей Case 9045B - (9-060) - CAB FRONT WINDOW ASSEMBLY (09) - CHASSIS
36a
14
31
41
6
38a
37
5
2
38
40
33
7
8
42
12
25
23
19
13
11
24
22
6
44
7
27
36
32
2a
30
36a
19
43
15
4
16
1
6
21
26
36
3
29
28
9
39
17
37a
34
20
35
7
18
10

Артикул

Название

Примечание

Количество

164948A1

CAB

ASSEMBLY - operator's, includes all parts on Figures 9-54 - 9-64, Includes: Ref. 1 - 44

1шт.

164221A1

WINDOW ASSY

WINDOW ASSEMBLY - cab front, Includes: Ref. 1 - 44

1шт.

1

161406A1

WINDOW ASSY

Cab Front window frame, (15 inches from bottom of frame to top of wiper motor bracket)

1шт.

1

165331A1

WINDOW ASSY

Cab Front window frame, (19 inches from bottom of frame to top of wiper motor bracket)

1шт.

2

164576A1

GLASS

- tempered, cab front window, 346 mm (13-5/8 inch) from hole in glass to bottom of glass

1шт.

2a

REF

INSTRUCTION

GLASS - cab front window, not used in this application

1шт.

3

161408A1

SEAL, GLASS

STRIP - weather

1шт.

4

161409A1

SEAL, GLASS

STRIP - weather

1шт.

5

159585A1

NUT

- flange, special

4шт.

6

161410A1

HANDLE

- window

3шт.

7

161411A1

SCREW

- special, window handle

6шт.

8

161412A1

CATCH PLATE

STRIKER - front window

1шт.

9

161397A1

SCREW

- front window stopper

3шт.

10

161414A1

BRACKET

- window release, left-hand

1шт.

11

161415A1

BRACKET

- window release, right-hand

1шт.

12

161416A1

HOOK

- window catch, left-hand

1шт.

13

161417A1

HOOK

- window catch, right-hand

1шт.

14

164317A1

SPRING

- torsion-type, window lock, left-hand

1шт.

15

164316A1

SPRING

- torsion-type, window lock, right-hand

1шт.

16

161420A1

SCREW

- special

4шт.

17

161421A1

NUT

- special

4шт.

18

161422A1

RING

- snap, special

2шт.

19

161423A1

ROLLER

- window lock

4шт.

20

161424A1

LOCK

- front window, left-hand

1шт.

There is a small return spring included with these that is not shown in catalog. Per vendor, these springs are not serviced seperately, need to buy the assy.

1шт.

21

161425A1

LOCK

- front window, right-hand

1шт.

There is a small return spring included with these that is not shown in catalog. Per vendor, these springs are not serviced seperately, need to buy the assy.

1шт.

22

161426A1

BOLT,Sems, Hex, M6 x 20mm

BOLT - special, bracket and lock

4шт.

23

161427A1

BOLT

BOLT - special, bracket

6шт.

24

161342A1

BOLT

BOLT - flange, special, stopper

2шт.

25

161429A1

CLIP

- wire

1шт.

26

161430A1

STOP

PER - hook

2шт.

27

161431A1

BRACKET

- special, left-hand

1шт.

28

161432A1

BRACKET

- special, right-hand

1шт.

29

161433A1

ADJUSTING PLATE

SHIM - plate, special

4шт.

30

161434A1

STOP

PER - front window

2шт.

31

161357A1

NUT

- rubber door stopper

2шт.

32

161426A1

BOLT,Sems, Hex, M6 x 20mm

BOLT - special

4шт.

33

161436A1

SPRING

- compression-type

1шт.

34

161437A1

STEM

PIN - special, front window

1шт.

35

161438A1

LEVER

HANDLE - lock pin

1шт.

36

REF

INSTRUCTION

MOTOR - wiper, windshield, not used in this application

1шт.

36a

164577A1

WIPER MOTOR

MOTOR - wiper, windshield

1шт.

37

REF

INSTRUCTION

ARM - wiper, windshield, not used in this application

1шт.

37a

164578A1

WIPER ARM

ARM - wiper, windshield, 375 mm (14-3/4 inch) long

1шт.

38

REF

INSTRUCTION

BLADE - wiper, windshield, not used in this application

1шт.

38a

164579A1

WIPER BLADE

BLADE - wiper, windshield, 475 mm (18-11/16 inch) long

1шт.

39

161439A1

COVER

- wiper motor

1шт.

40

161440A1

MOUNTING CLIP

STRAP - tie, special

1шт.

41

161441A1

FLANGE BOLT

BOLT - flange, special

1шт.

42

161442A1

HARNESS

- electrical wiring, wiper motor

1шт.

43

164580A1

SPACER

- wiper motor

1шт.

44

164581A1

SPACER

- wiper motor

1шт.

Выбрано товаров: 53
