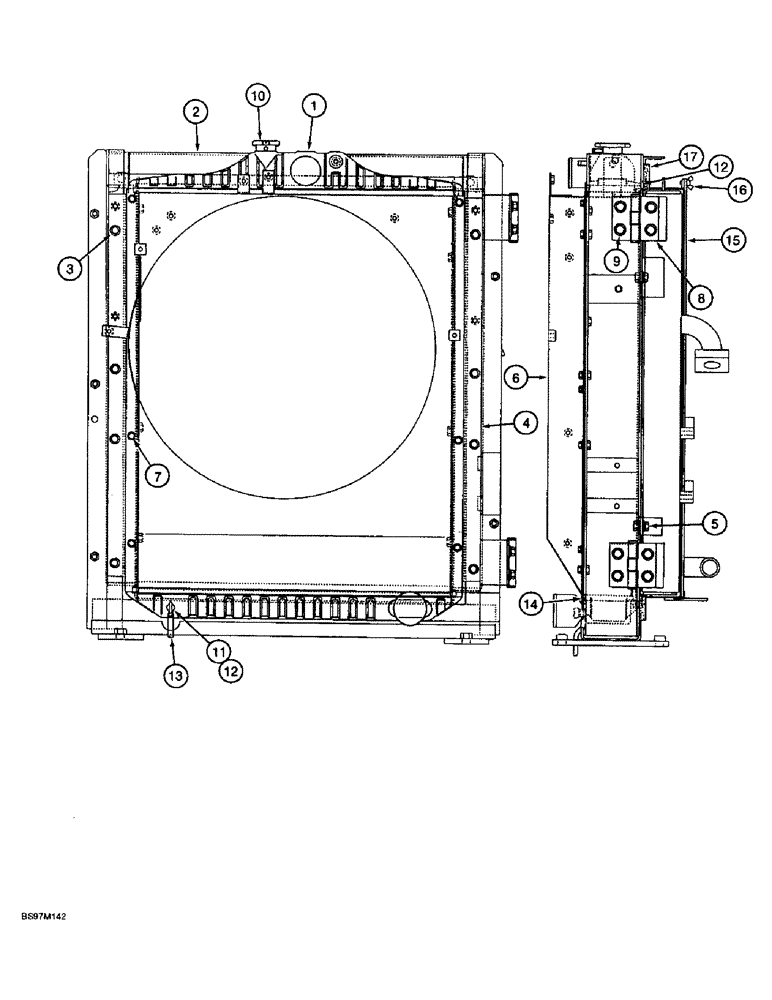

Запчасти Case 9045B (2-10) - RADIATOR ASSEMBLY (02) - ENGINE

NSS

NOT SOLD SEPARAT

RADIATOR ASSEMBLY - water and hydraulic oil cooling, Includes: Ref. 1 - 17

1шт.

1

165919A1

RADIATOR

CORE - radiator, engine cooling

1шт.

2

160139A1

FRAME

- radiator

1шт.

3

158870A1

BOLT

BOLT - special, with shakeproof washer

8шт.

4

162904A1

COOLER, OIL

CORE - cooler, hydraulic oil

1шт.

5

158869A1

BOLT

- special

5шт.

6

165927A1

SHROUD

- radiator

1шт.

7

156599A1

BOLT

BOLT - special

6шт.

8

165653A1

HINGE

- radiator

2шт.

9

158869A1

BOLT

- special

8шт.

10

156601A1

PLUG

CAP - radiator

1шт.

11

156602A1

COCK

VALVE - drain

1шт.

12

165641A1

PACKING

PAD - insulation

2шт.

13

156603A1

HOSE

- radiator drain

1шт.

14

160322A1

PACKING

PAD - insulation

2шт.

15

151399A1

PROTECTOR

SCREEN - radiator

1шт.

16

156606A1

BOLT,Wing, M6

BOLT - wing type, special, screen attaching

2шт.

17

160323A1

PACKING

PAD - insulation

4шт.
