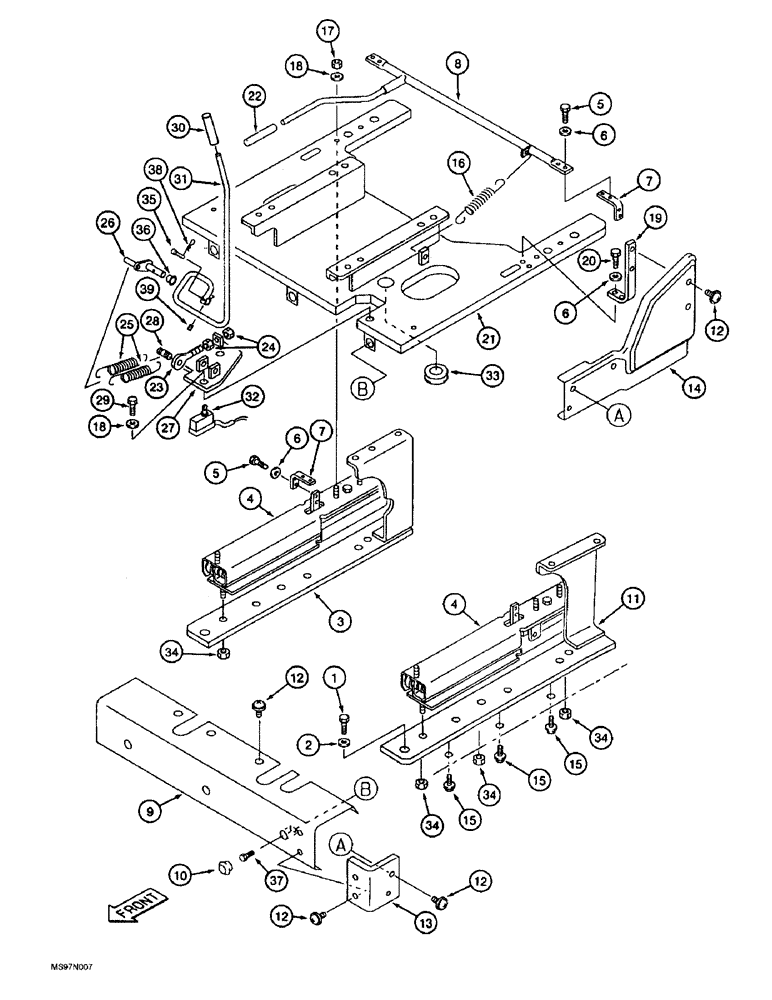

Запчасти Case 9045B (9-038) - SEAT SLIDE RAILS AND PLATFORM (09) - CHASSIS

1

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

2шт.

2

150811A1

WASHER

- flat, special, 12 mm

2шт.

3

159517A1

SUPPORT ASSY.

STAND - rail and platform mounting, right hand

1шт.

4

159513A1

RAIL ASSY.

RAIL - slide, seat

2шт.

6

153081A1

WASHER

- flat, special

10шт.

7

159331A1

BRACKET

- 90 degree, Serial Range: lever-rail

2шт.

8

165989A1

LEVER

- seat adjusting, forward and reverse

1шт.

9

166029A1

COVER

GUARD - front, rail protection

1шт.

10

159519A1

PLUG

COVER - bolt head

3шт.

11

159518A1

SUPPORT ASSY.

STAND - rail and platform mounting, left-hand

1шт.

12

159533A1

SCREW

- machine, special

10шт.

13

159287A1

COVER

BRACKET - 90 degree angle

1шт.

14

159260A1

COVER

GUARD - rail protection, left-hand side

1шт.

15

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, rail mounting

6шт.

16

159502A1

SPRING

- extension

1шт.

18

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

8шт.

19

159317A1

BRACKET

- 90 degree strap

1шт.

20

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

2шт.

21

165988A1

PLATFORM

- seat mounting

1шт.

22

159501A1

CAP

GRIP - vinyl, forward and reverse lever

1шт.

23

159346A1

BALL JOINT

EYE - threaded, spring anchor, gate lock control lever

1шт.

25

159539A1

SPRING

- return, gate lock control lever

2шт.

26

165190A1

LINK

BELLCRANK - control lever, gate lock

1шт.

27

165506A1

BRACKET

- lever pivot, gate lock

1шт.

28

159249A1

PIN

- grooved, spring anchor

1шт.

29

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

2шт.

30

159547A1

CAP

GRIP - vinyl, gate lock control lever

1шт.

31

165189A1

LEVER

- control, gate lock

1шт.

32

159541A1

LIMIT SWITCH

SWITCH - limit, gate lock control

1шт.

33

150413A1

GROMMET

- rubber

1шт.

34

150472A1

FLANGE NUT

- hex flange, special, 8 mm - 1.25

6шт.

35

165902A1

COTTER PIN

PIN - headed, special

1шт.

36

159244A1

RING

BUSHING - lever, gate lock control

2шт.

37

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

3шт.

38

165192A1

COTTER PIN

PIN - clip, special

1шт.

39

878-10812

SET SCREW,Hex Skt, M8 x 12mm, Cup Pt

SCREW - set, hex socket, 8 - 1.25 x 12 mm, cup point

1шт.

40

159895A1

CABLE,1500mm L

ROPE - steel wire, operator’s manual tether, not shown

1шт.

41

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special, to fasten wire rope to seat platform, not shown

1шт.

159538A1 console limit switch has two wire leads (one is white and one is black) that are each 100 mm long. This switch is wired normally open. The Sumitomo part # is probably stamped somewhere on the switch body. The Sumitomo part # is KHN1432.

1шт.

There is another limit switch used for the gate lock control. This limit switch is part # 159541A1. It has two wire leads (both are green) that are each 150 mm long. This switch is wired normally closed. The Sumitomo part # is probably stamped somewhere on the switch body. The Sumitomo part # is KHN1439.

1шт.

5

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, class 10.9

8шт.

17

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

24

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
