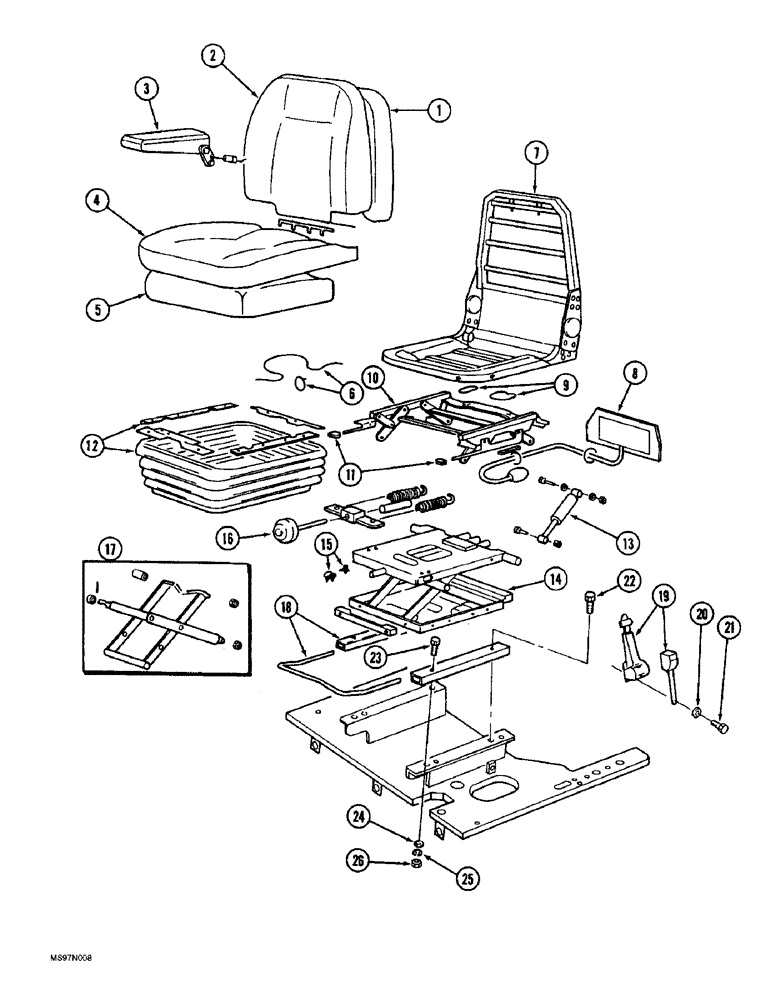

Запчасти Case 9045B (9-036) - 300642A1 SUSPENSION SEAT ASSEMBLY, SEAT BACK CUSHION HAS CASE LOGO (09) - CHASSIS

300642A1

SEAT ASSY.

SEAT ASSEMBLY - operators, with belt and suspension, Includes: Ref. 1 - 21

1шт.

307040A1

SEAT ASSY.

SEAT ASSEMBLY - operators, without belt or suspension, Includes: Ref. 1, 2, 4 - 8

1шт.

1

P4841461

CUSHION

INNER CUSHION-backrest

1шт.

2

307042A1

DRIVER'S SEAT COVER

COVER -outer backrest cushion

1шт.

3

307048A1

ARMREST ASSY.

Right Hand and Left Hand

1шт.

4

P2547002

SEAT COVER

COVER - seat cushion

1шт.

5

P4841462

CUSHION

- seat

1шт.

6

P2447088

KIT

- recliner cable

1шт.

7

307043A1

FRAMEWORK

KIT - seat frame

1шт.

8

307044A1

KIT

- lumbar support, pneumatic

1шт.

307045A1

KIT

- height riser, Includes: Ref. 9 - 11

1шт.

9

307046A1

KIT

- spring, height riser

1шт.

10

NSS

NOT SOLD SEPARAT

RISER - height

1шт.

11

307047A1

SET OF PARTS

KIT - knobs, height riser

1шт.

12

307052A1

KIT

- suspension cover

1шт.

307049A1

SUSPENSION

KIT - suspension, seat, Includes: Ref. 13 - 17

1шт.

13

P4143253

SHOCK ABSORBER

KIT - shock absorber, seat

1шт.

14

NSS

NOT SOLD SEPARAT

FRAME - suspension

1шт.

15

307050A1

KIT

- suspension bumper stop

1шт.

16

P2447086

KIT

- weight adjustment

1шт.

17

307051A1

BEARING ASSY

- bearing, blocks and roll pins for four joints

1шт.

18

307053A1

KIT

- slide rail, seat

1шт.

19

304621A1

SAFETY BELT

SAFETY BELT, Kit

1шт.

20

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

21

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

22

863-8016

HEX SOC SCREW,M8 x 16mm, Cl 12.9

SCREW, Hex Soc Hd, M8 x 16, 12.9

2шт.

23

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

24

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm, Operator’s manual tether

4шт.

25

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , With attached lockwasher M8

4шт.

26

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

4шт.
