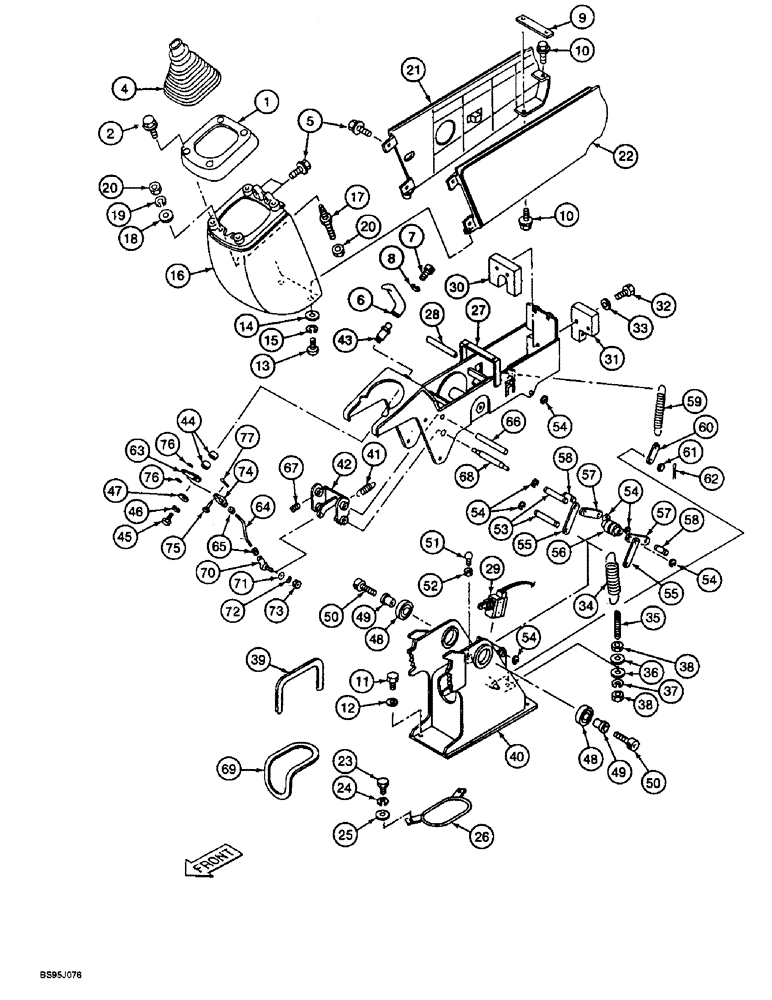

Запчасти Case 9045B (9-030) - LEFT-HAND CONTROL CONSOLE ASSEMBLY (09) - CHASSIS

1

159318A1

SHIN

FLANGE - boot retainer

1шт.

2

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

4шт.

4

159506A1

BELLOWS

BOOT - dust protection

1шт.

5

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

8шт.

6

159321A1

HANDLE

- control

1шт.

7

862-8035

HEX SOC SCREW,M8 x 35mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 35 mm, class 12.9

1шт.

8

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

9

159319A1

BRACKET

STRAP - mounting

1шт.

10

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

2шт.

11

627-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 16 mm, class 10.9

4шт.

12

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

13

159507A1

CARRIAGE BOLT,M6 x 12mm

BOLT - special

2шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

15

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

16

159510A1

COVER

HOUSING - controller

1шт.

17

159509A1

BOLT,Spcl, M6 x 38mm

STUD - special

2шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

20

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

21

159511A1

COVER

- side, right-hand

1шт.

22

159512A1

COVER

- side, left-hand

1шт.

23

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

2шт.

24

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

26

159320A1

GUIDE

- hose

1шт.

164617A1

CUP COVER

CONSOLE ASSEMBLY - control, left-hand, Includes: Ref. 27 - 77

1шт.

27

164550A1

FRAME

- tilt

1шт.

28

REF

INSTRUCTION

TRIM - edge, not used in this application

1шт.

29

159538A1

LIMIT SWITCH

SWITCH - limit

1шт.

30

REF

INSTRUCTION

PLATE - console, not used in this application

1шт.

31

REF

INSTRUCTION

PLATE - console, not used in this application

1шт.

32

REF

INSTRUCTION

BOLT - hex, not used in this application

2шт.

33

REF

INSTRUCTION

WASHER - flat, not used in this application

2шт.

34

159523A1

SPRING

- tension

1шт.

35

164508A1

HOOK

ANCHOR - spring, threaded

1шт.

37

892-11010

LOCK WASHER,M10

1шт.

39

159309A1

TRIM

- edge, 390 mm (15-3/8 inch) long

1шт.

40

159536A1

FRAME

- console

1шт.

41

159594A1

SPRING

- latch return

1шт.

42

159300A1

BRACKET

- tilt

1шт.

43

159295A1

COTTER PIN

PIN - special

1шт.

44

159296A1

BUSHING

- special

2шт.

45

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

1шт.

46

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

47

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

48

159504A1

BEARING, BALL,20 mm ID x 42 mm OD x 12 mm

BEARING - special

2шт.

49

159294A1

COTTER PIN

PIN - special

2шт.

50

862-6030

HEX SOC SCREW,M6 x 30mm, Cl 12.9

SCREW - hex socket, 6 - 1.0 x 30 mm, class 12.9

2шт.

51

159091A1

STOP

PER - rubber

1шт.

53

159304A1

COTTER PIN

PIN - special

2шт.

54

800-436

CIRCLIP,M6

RING - E-type, external retaining, No. 6

7шт.

55

159307A1

LINK

- front

2шт.

56

159306A1

COLLAR

- special

1шт.

57

159303A1

COTTER PIN

LINK - rear

2шт.

58

159305A1

COTTER PIN

PIN - special

2шт.

59

159524A1

SPRING

- counterbalance

1шт.

60

159316A1

PITMAN

LINK - connecting, lower

1шт.

61

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

62

153077A1

COTTER PIN

CLIP - hair pin type

1шт.

63

159297A1

BRACKET

- console

1шт.

64

159299A1

ROD,THREADED

ROD - threaded

1шт.

65

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

66

159301A1

COTTER PIN

PIN - special

1шт.

67

878-1046

SET SCREW,Hex Skt, M4 x 6mm, Cup Pt

Hex Socket, 4 - 0.7 x 6 mm, Cup Point

2шт.

68

159302A1

COTTER PIN

PIN - lock

1шт.

69

159308A1

TRIM

- edge, 390 mm (15-3/8 inch) long

1шт.

70

157155A1

BALL JOINT

JOINT - ball

1шт.

71

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

72

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

73

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

74

159298A1

FORK

END - yoke

1шт.

75

159505A1

COTTER PIN

PIN - headed, special

1шт.

76

159508A1

WASHER

- nylon

2шт.

77

733-1616

COTTER PIN,M1.6 x 16

PIN - cotter, 1.6 x 16 mm

1шт.

159538A1 console limit switch has two wire leads (one is white and one is black) that are each 100 mm long. This switch is wired normally open. The Sumitomo part # is probably stamped somewhere on the switch body. The Sumitomo part # is KHN1432.

1шт.

There is another limit switch used for the gate lock control. This limit switch is part # 159541A1. It has two wire leads (both are green) that are each 150 mm long. This switch is wired normally closed. The Sumitomo part # is probably stamped somewhere on the switch body. The Sumitomo part # is KHN1439.

1шт.

38

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

52

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

36

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.
