Запчасти Case 9045B (9-024) - REMOTE CONTROL VALVES AND MOUNTING (09) - CHASSIS

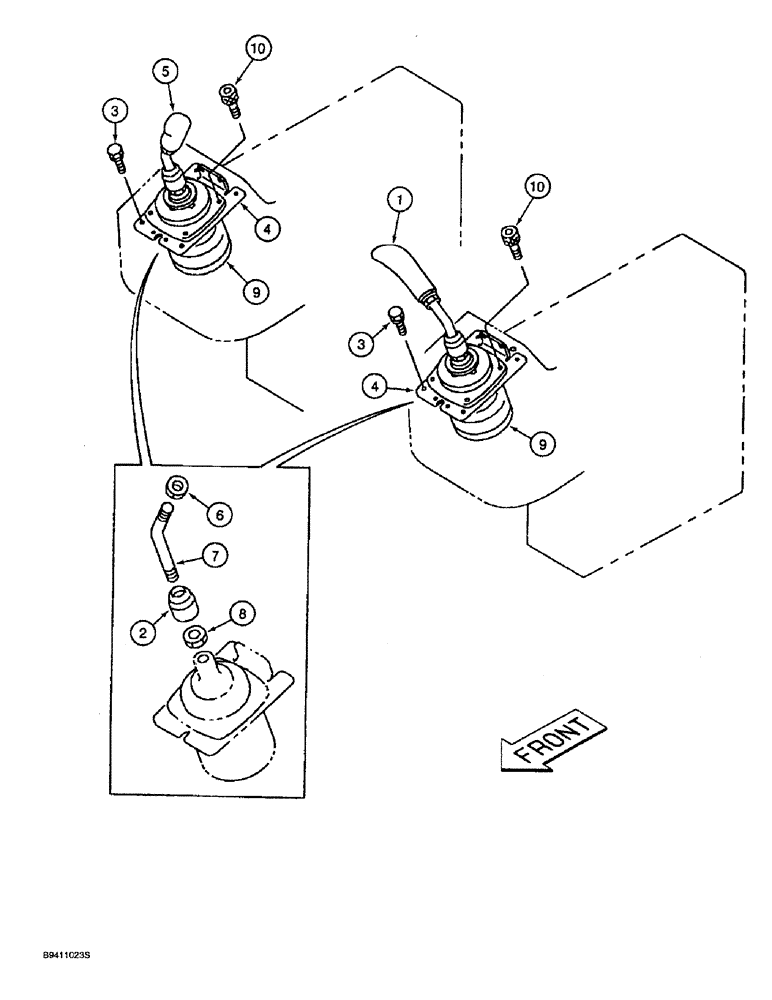

Схема запчастей Case 9045B - (9-024) - REMOTE CONTROL VALVES AND MOUNTING (09) - CHASSIS
10
8
3
4
2
5
3
9
7
6
4
10
9
1

Артикул

Название

Примечание

Количество

1

159270A1

KNOB

- left-hand, with horn button, left hand

1шт.

2

151302A1

CAP

BOOT - dust protection

2шт.

3

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

4шт.

4

159268A1

SUPPORT

BRACKET - mounting

2шт.

5

159486A1

KNOB

- right hand

1шт.

6

159487A1

NUT

- hex, special

2шт.

7

159269A1

LEVER

- control

2шт.

8

151154A1

JAM NUT

- hex

2шт.

9

159700A1

CONTROL BLOCK

VALVE ASSEMBLY - remote control, see parts list Figure 8-88

2шт.

10

862-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

SCREW - hex socket, 6 - 1.0 x 25 mm, class 12.9

8шт.

Выбрано товаров: 10
