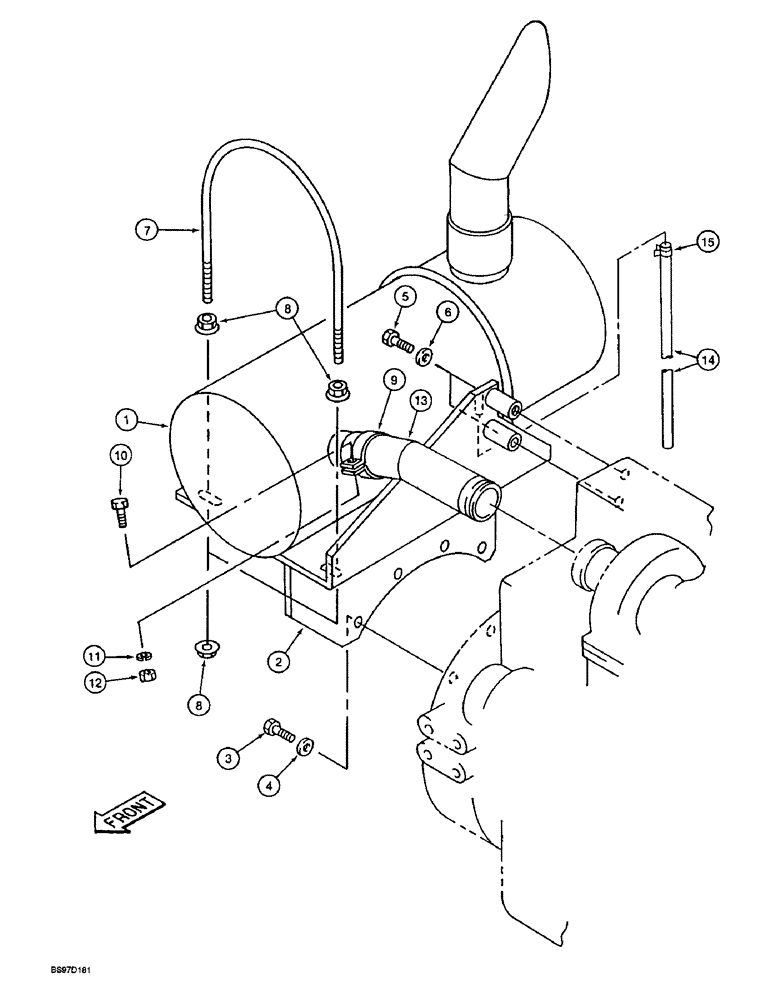

Запчасти Case 9045B (2-08) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

256381A1

MUFFLER

- exhaust

1шт.

2

165563A1

BRACKET

- muffler mounting

1шт.

3

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 40 mm, class 10.9

4шт.

4

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

5

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

2шт.

6

150811A1

WASHER

- flat, special, 12 mm

2шт.

7

150772A1

U-BOLT,M12 x 315mm W x 337.10mm L

- muffler retaining

2шт.

8

150475A1

FLANGE NUT

- flanged, 12 mm - 1.75

8шт.

9

150670A1

CLAMP

- special

2шт.

10

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

2шт.

11

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

12

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

13

164277A1

PIPE, EXHAUST SYSTEM

PIPE - exhaust

1шт.

14

165396A1

TUBE

- drain, muffler

1шт.

15

151367A1

COLLAR

CLAMP - adjustable

1шт.
