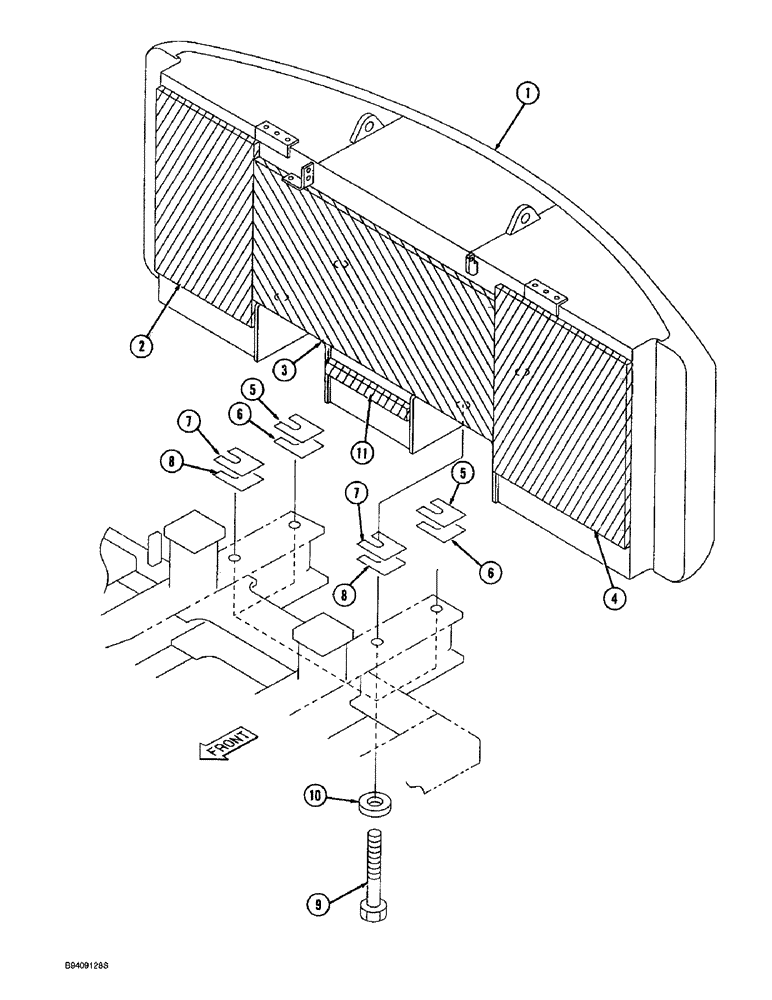

Запчасти Case 9045B (9-012) - COUNTERWEIGHT (09) - CHASSIS

1

164212A1

WEIGHT PACKAGE

COUNTERWEIGHT - 5620 kgs (12392 lbs)

1шт.

2

158939A1

NOISE PROTECTION

INSULATION - acoustic, right-hand

1шт.

3

158938A1

NOISE PROTECTION

INSULATION - acoustic, upper center

1шт.

4

158940A1

NOISE PROTECTION

INSULATION - acoustic, left-hand

1шт.

5

158933A1

SHIM

- plate, 0.8 mm (0.03 inch) thick

2шт.

6

158934A1

SHIM

- plate, 1.2 mm (0.05 inch) thick

2шт.

7

158935A1

ADJUSTING PLATE

SHIM - plate, 2.3 mm (0.09 inch) thick

2шт.

8

158936A1

ADJUSTING PLATE

SHIM - plate, 4.5 mm (0.18 inch) thick

2шт.

9

157427A1

BOLT

BOLT - hex, special, 30 x 300 mm

4шт.

10

163858A1

WASHER

- high strength

4шт.

11

158941A1

NOISE PROTECTION

INSULATION - acoustic, lower center

1шт.
