(9-004) - TURNTABLE BEARING LUBRICATION LINES

Запчасти Case 9045B (9-004) - TURNTABLE BEARING LUBRICATION LINES (09) - CHASSIS

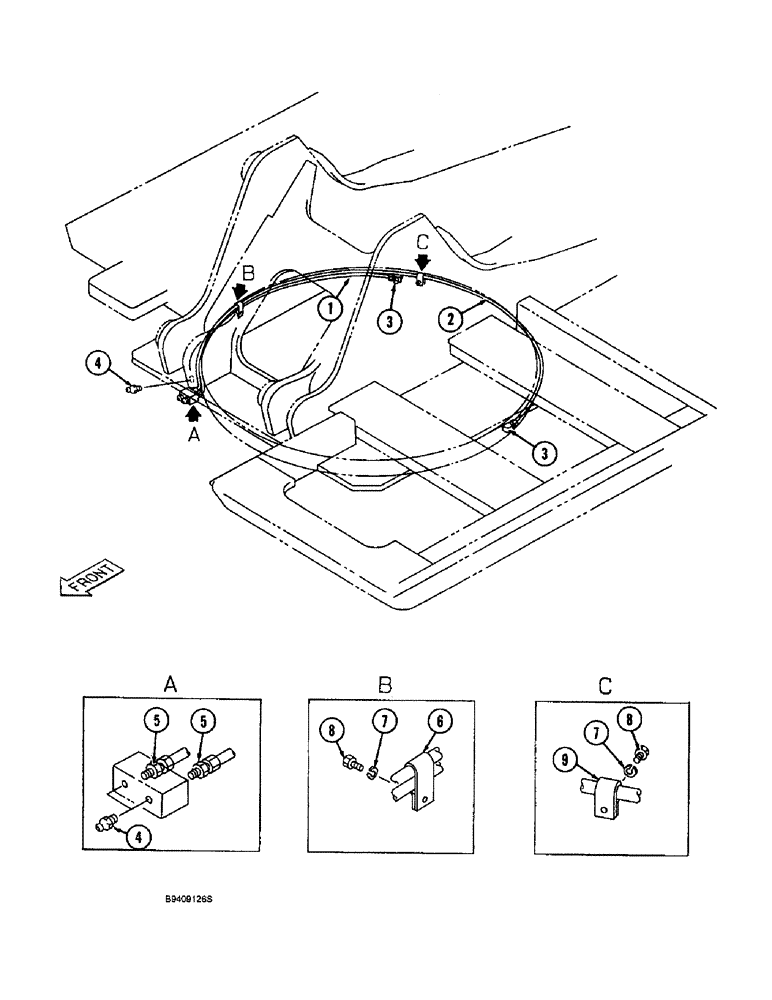

Схема запчастей Case 9045B - (9-004) - TURNTABLE BEARING LUBRICATION LINES (09) - CHASSIS
3
9
6
7
4
3
1
7
4
2
5
5
8
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

158932A1

TUBE,1167.9, 176.1 mm Length

- metal, lubrication

1шт.

2

158931A1

TUBE

- metal, lubrication

1шт.

3

152627A1

ELBOW

- 90 degree, special

2шт.

4

153630A1

LUBE NIPPLE

FITTING - grease, straight

3шт.

5

152599A1

MULTIPOLE CONNECTOR

CONNECTOR - straight, special

2шт.

6

150578A1

CLAMP

- P-type

1шт.

7

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

8

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

2шт.

9

150566A1

CLAMP

- P-type

1шт.
