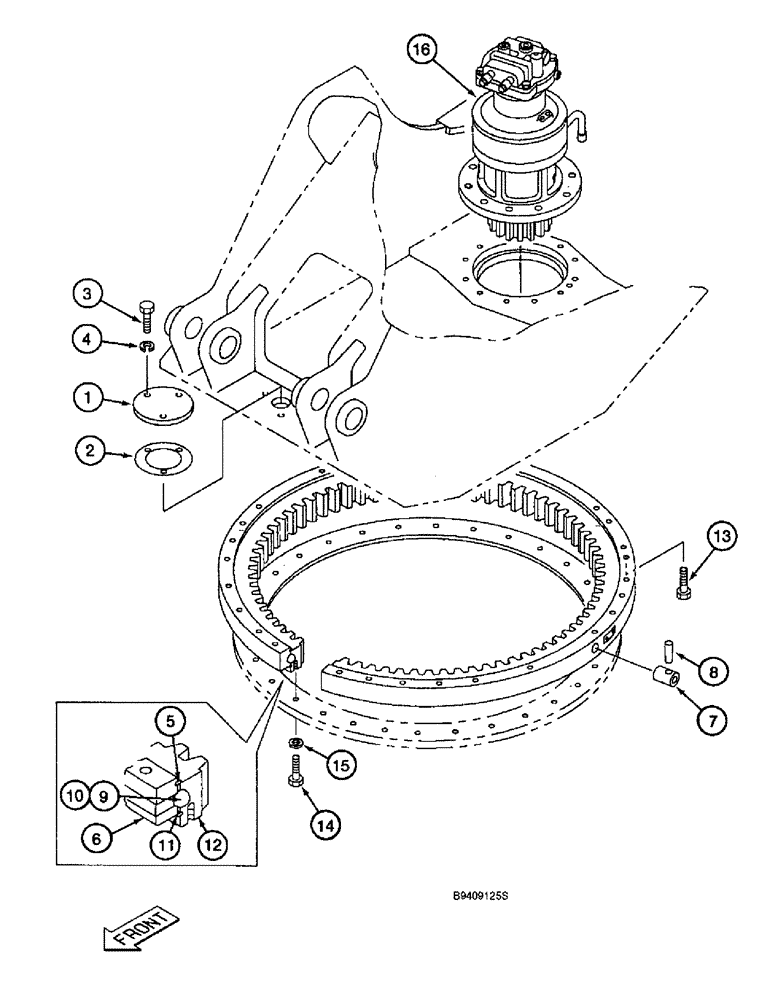

Запчасти Case 9045B (9-002) - TURNTABLE BEARING (09) - CHASSIS

1

158929A1

LID

COVER - access, grease fill, turntable gear

1шт.

2

158930A1

CORK SEAL

GASKET - access cover

1шт.

3

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

3шт.

4

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

3шт.

164210A1

SLEWING RING

BEARING ASSEMBLY - turntable, Includes: Ref. 5 - 12

1шт.

5

158927A1

SEALING RING

RING - seal

1шт.

6

NSS

NOT SOLD SEPARAT

RACE - bearing, outer

1шт.

7

NSS

NOT SOLD SEPARAT

STOPPER - turntable

1шт.

8

158925A1

COTTER PIN

PIN - special

1шт.

9

159695A1

BALL

BEARING - ball, turntable

112шт.

10

158926A1

SPACER

- ball bearing

112шт.

11

158928A1

SEALING RING

RING - seal

1шт.

12

NSS

NOT SOLD SEPARAT

RACE - bearing, inner

1шт.

13

827-24110

BOLT,Hex, M24 x 3 x 110mm, Cl 10.9

- hex, 24 - 3.0 x 110 mm, class 10.9

26шт.

14

827-24080

BOLT,Hex, M24 x 3 x 80mm, Cl 10.9

- hex, 24 - 3.0 x 80 mm, class 10.9

45шт.

15

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

- flat, special

45шт.

16

REF

INSTRUCTION

DRIVE ASSEMBLY swing, for mounting and parts list, see Figure 8-136

1шт.

See figure 1-2 for explanation of model variations.

1шт.
