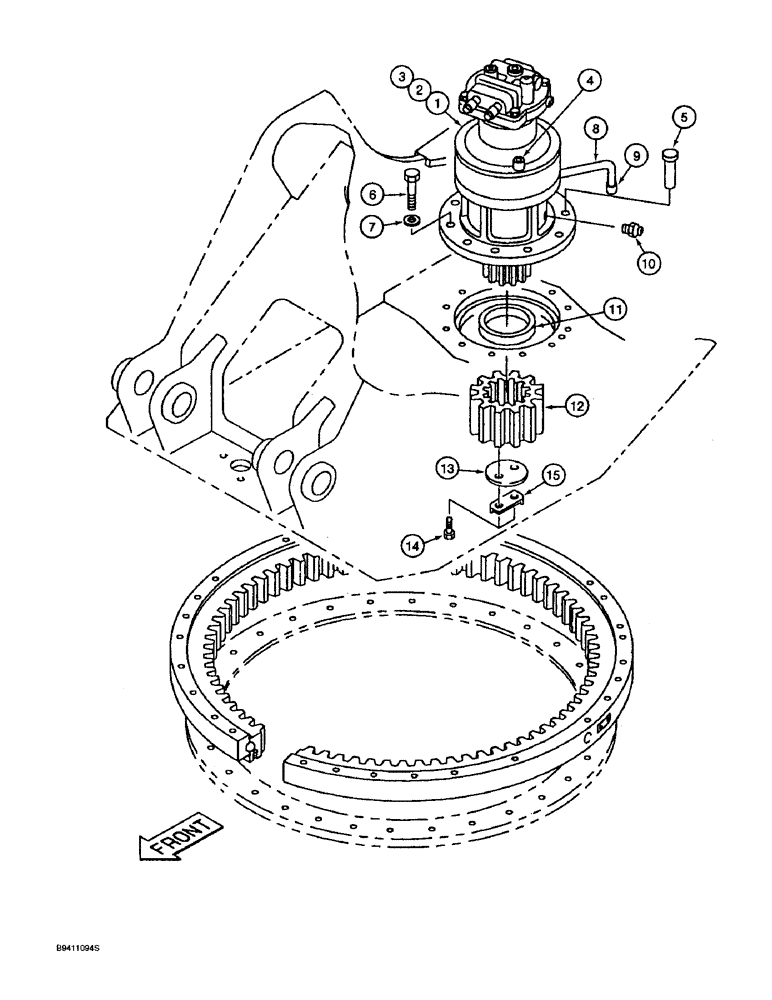

Запчасти Case 9045B (8-136) - SWING DRIVE ASSEMBLY MOUNTING (08) - HYDRAULICS

1

164614A1

MOTOR

DRIVE ASSEMBLY - swing, with reduction gear, Includes: Ref. 2 - 4

1шт.

2

165594A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - swing, without reduction gear, parts list Figure 138

1шт.

3

160152A1

GEAR

ASSEMBLY - reduction, swing drive, parts list on Figure 140

1шт.

4

LA00727

HEX SOC SCREW

Replaces 828-16155

12шт.

5

158955A1

HEADED PIN

PIN - headed, special, locator

1шт.

6

827-24080

BOLT,Hex, M24 x 3 x 80mm, Cl 10.9

- hex, 24 - 3.0 x 80 mm, class 10.9

11шт.

7

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

- flat, special

11шт.

8

158956A1

TUBE

- drain

1шт.

9

159390A1

CAPSCREW,Flat Hd, M4 x 30mm, Cl 8.8

CAP - tube

1шт.

10

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

11

158953A1

SPACER

- motor assembly

1шт.

12

158952A1

PINION

- drive

1шт.

13

158954A1

PLATE, LOCKING

PLATE - flat, pinion retaining

1шт.

14

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

15

150002A1

LOCKING PLATE

RETAINER - plate

1шт.
