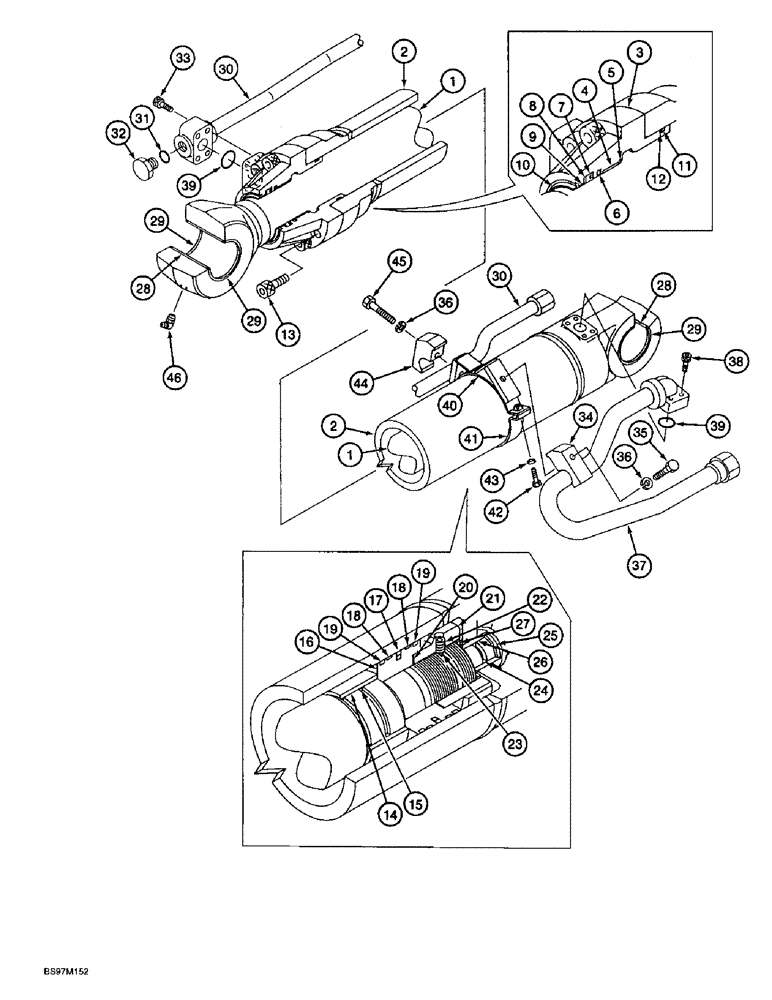

Запчасти Case 9045B (8-130) - ARM CYLINDER (08) - HYDRAULICS

165860A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 160 (6-5/16) ID x 1621 mm (63-3/4 inch) stroke, arm, Includes: Ref. 1 - 46

1шт.

1

165921A1

PISTON ROD

KIT - cylinder rod, with bushing, includes one of Ref. 28, Includes: Ref. 1 - 46

1шт.

2

165920A1

HYD TUBE

KIT - cylinder tube, with bushing, includes one of Ref. 28, Includes: Ref. 1 - 46

1шт.

3

165922A1

HEAD (CYLINDER)

KIT - cylinder gland, includes Refs. 4 and 5

1шт.

4

155428A1

BUSHING

- Gland

1шт.

5

155704A1

RING, SNAP

RING SNAP - Retaining

1шт.

6

155153A1

SEALING RING

RING - buffer

1шт.

Part of repair kit P/N 165926A1

1шт.

7

155114A1

RING

Seal - U-cup

1шт.

Part of repair kit P/N 165926A1

1шт.

8

155237A1

BACK-UP RING

1шт.

Part of repair kit P/N 165926A1

1шт.

9

155339A1

RING

SEAL - piston rod

1шт.

Part of repair kit P/N 165926A1

1шт.

10

155127A1

WIPER SEAL

WIPER - Piston rod

1шт.

Part of repair kit P/N 165926A1

1шт.

11

154812A1

O-RING,149.6mm ID x 5.7mm Width

SEAL - gland

1шт.

Part of repair kit P/N 165926A1

1шт.

12

155242A1

BACK-UP RING

1шт.

Part of repair kit P/N 165926A1

1шт.

13

863-24080

HEX SOC SCREW,M24 x 80mm, Cl 12.9

BOLT - hex socket, 24 - 3.0 x 80 mm, class 12.9

8шт.

14

165923A1

RING

- cushion

1шт.

15

165924A1

SEAL

- cushion

1шт.

Part of repair kit P/N 165926A1

1шт.

16

165562A1

JACK PISTON

PISTON - cylinder

1шт.

17

162706A1

SEALING RING

Piston

1шт.

Part of repair kit P/N 165926A1

1шт.

18

165925A1

RING

- wear

2шт.

Part of repair kit P/N 165926A1

1шт.

19

155341A1

RING

Wear

2шт.

Part of repair kit P/N 165926A1

1шт.

20

165556A1

WASHER

SHIM - special

1шт.

Part of repair kit P/N 165926A1

1шт.

21

165557A1

NUT

- piston retaining

1шт.

22

165558A1

SCREW

- set

1шт.

23

155981A1

BALL

- Steel

1шт.

24

160127A1

SEAL

- Cushion

1шт.

25

160128A1

STOP

- Cushion

2шт.

26

162709A1

BEARING

RING - cushion

1шт.

27

160129A1

RING, SNAP

RING SNAP

1шт.

28

155427A1

BUSHING

- Cylinder end

2шт.

29

164147A1

WIPER SEAL

WIPER - pin, cylinder end

4шт.

165926A1

KIT

- repair, Includes: Refs. 6 - 12, 15, 17 - 20 and 30 - 46

1шт.

30

165917A1

HYD TUBE

TUBE ASSEMBLY - hydraulic, rod end, includes plug and O-ring, Includes: Ref. 31 and 32

1шт.

31

154503A1

O-RING

- plug

1шт.

32

NSS

NOT SOLD SEPARAT

PLUG - port, hydraulic tube

1шт.

33

863-12055

HEX SOC SCREW,M12 x 55mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 80 mm, class 12.9

4шт.

34

155716A1

COLLAR

CLAMP - tube

1шт.

35

164114A1

BOLT

BOLT - hex, special

1шт.

36

112312A1

LOCK WASHER

- lock, 12 mm

2шт.

37

165918A1

HYD TUBE

TUBE - hydraulic cylinder, closed end

1шт.

38

861-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

SCREW - hex socket 12 - 1.75 x 40 mm, class 12.9

4шт.

39

154543A1

O-RING

- Hydraulic tube to cylinder tube

2шт.

40

165928A1

BAND

CLAMP - band, half with two tube mounting flats

1шт.

41

156390A1

BAND

CLAMP - band, plain half

1шт.

42

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

BOLT - hex, special

2шт.

43

156227A1

WASHER

- lock, special

2шт.

44

155717A1

COLLAR

CLAMP - tube, special

1шт.

45

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, 12 - 1.75 x 50 mm, class 10.9

1шт.

46

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.
