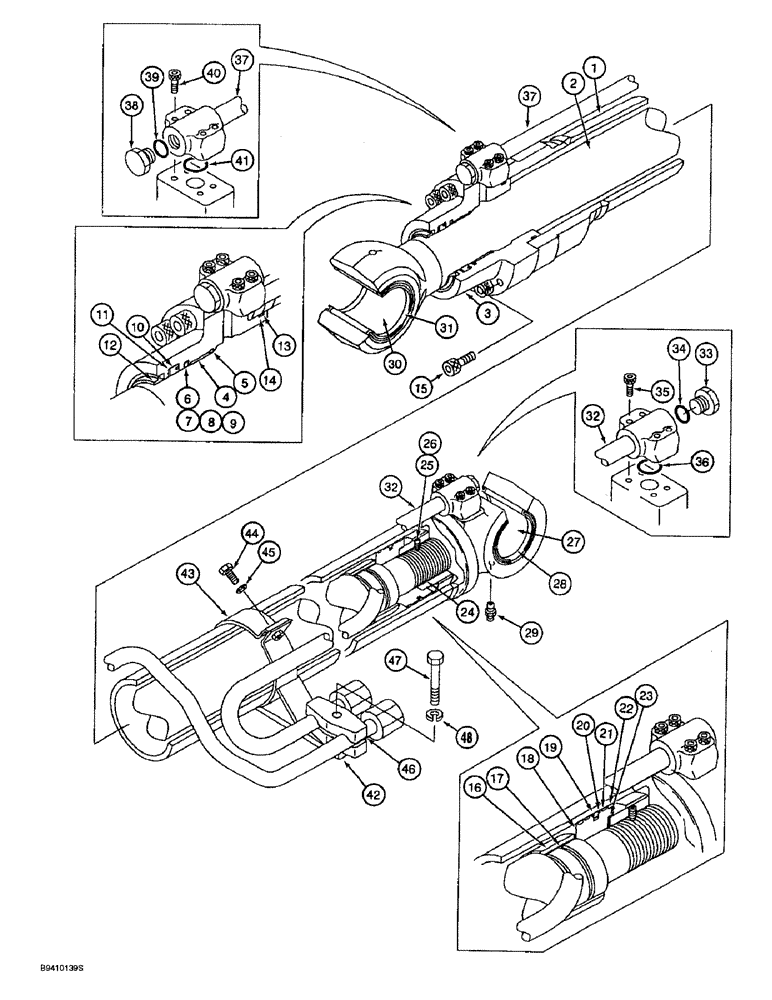

Запчасти Case 9045B (8-120) - BOOM CYLINDERS, MODELS WITHOUT LOAD HOLD OPTION (08) - HYDRAULICS

165866A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 130 (5-1/8) ID x 1278 mm (50-3/16 inch) stroke, boom, left-hand, Includes: Ref. 1 - 31

2шт.

1

160357A1

PIPE SET

KIT - cylinder tube replacement, includes Ref. 27 below

1шт.

2

160358A1

SET OF PARTS

KIT - rod replacement, includes Ref. 30 below

1шт.

160226A1

SEAL KIT

KIT - gland replacement, includes Ref. 3 - 5 below

1шт.

3

160171A1

CYLINDER END CAP

GLAND - cylinder

1шт.

4

160050A1

BUSHING

- gland

1шт.

5

155713A1

RING, SNAP

RING - retaining

1шт.

6

160123A1

BACK-UP RING

RING ASSEMBLY - buffer

1шт.

Part of seal replacement kit P/N 163672A1

1шт.

7

160015A1

BACK-UP RING

RING - slide

1шт.

Part of seal replacement kit P/N 163672A1

1шт.

8

159991A1

BACK-UP RING

RING - backup

1шт.

Part of seal replacement kit P/N 163672A1

1шт.

9

160020A1

RING

- square

1шт.

Part of seal replacement kit P/N 163672A1

1шт.

10

155145A1

RING,90mm ID x 105mm OD x 9mm Thk

SEAL - U-cup

1шт.

Part of seal replacement kit P/N 163672A1

1шт.

11

155249A1

BACK-UP RING

RING - backup

1шт.

Part of seal replacement kit P/N 163672A1

1шт.

12

161877A1

BACK-UP RING

WIPER - piston rod

1шт.

Part of seal replacement kit P/N 163672A1

1шт.

13

154769A1

O-RING

SEAL - gland

1шт.

Part of seal replacement kit P/N 163672A1

1шт.

14

159992A1

BACK-UP RING

RING - backup

1шт.

Part of seal replacement kit P/N 163672A1

1шт.

15

160299A1

BOLT,Hex Skt Hd

BOLT - hex, special

12шт.

16

160119A1

RING

- cushion

1шт.

17

160125A1

SEAL

- cushion ring

1шт.

Part of seal replacement kit P/N 163672A1

1шт.

18

160215A1

PISTON

- cylinder

1шт.

19

155323A1

SEALING RING

SEAL - piston

1шт.

Part of seal replacement kit P/N 163672A1

1шт.

20

159993A1

BACK-UP RING

RING - backup

2шт.

Part of seal replacement kit P/N 163672A1

1шт.

21

155320A1

RING

- wear

2шт.

Part of seal replacement kit P/N 163672A1

1шт.

22

155319A1

RING

- wear

2шт.

Part of seal replacement kit P/N 163672A1

1шт.

23

155722A1

SHIM

WASHER - flat, special

1шт.

Part of seal replacement kit P/N 163672A1

1шт.

24

156220A1

NUT

- special

1шт.

25

156223A1

SET SCREW

SCREW - set

1шт.

26

155977A1

BALL

- steel

1шт.

27

155408A1

BUSHING

- cylinder tube end

1шт.

28

162962A1

WIPER SEAL

WIPER - pin, cylinder end

2шт.

29

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

30

155408A1

BUSHING

- cylinder rod

1шт.

31

162962A1

WIPER SEAL

WIPER - pin, rod end

2шт.

32

LR012720

HYD TUBE

TUBE ASSEMBLY - hydraulic, cylinder end, right-hand, includes: Refs. 33 and 34, Replaces 160084A1

1шт.

32

LR012740

HYD TUBE

TUBE ASSEMBLY - hydraulic, cylinder end, left-hand, Replaces 160086A1

1шт.

33

152924A1

PLUG

- tube assembly sealing

1шт.

34

154503A1

O-RING

If Used

1шт.

35

87016471

HEX SOC SCREW,M10 x 30mm, Cl 12.9

Replaces 861-10050

8шт.

36

154528A1

O-RING

- hydraulic tube to cylinder tube

2шт.

37

LR012730

HYD TUBE

TUBE ASSEMBLY - hydraulic, rod end, right-hand, includes: Refs. 38 and 39, Replaces 160085A1

1шт.

37

LR012750

HYD TUBE

TUBE ASSEMBLY - hydraulic, rod end, left-hand, Replaces 160087A1

1шт.

38

152924A1

PLUG

- tube assembly sealing

1шт.

39

154503A1

O-RING

If Used

1шт.

40

87016471

HEX SOC SCREW,M10 x 30mm, Cl 12.9

Replaces 861-10050

8шт.

41

154528A1

O-RING

- hydraulic tube to cylinder tube

2шт.

163672A1

SEAL KIT

KIT - seal replacement, Includes: Refs 6 - 14, 17 and 19 - 23

1шт.

42

160336A1

BAND

CLAMP - band

2шт.

43

156374A1

MOUNTING CLIP

CLAMP - band

2шт.

44

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

BOLT - hex, special

4шт.

45

156227A1

WASHER

- lock, special

4шт.

46

155701A1

COLLAR

CLAMP - tube

4шт.

47

153910A1

BOLT,High Strength, Hex, M14 x 80mm

BOLT - hex, special

2шт.

48

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

2шт.
