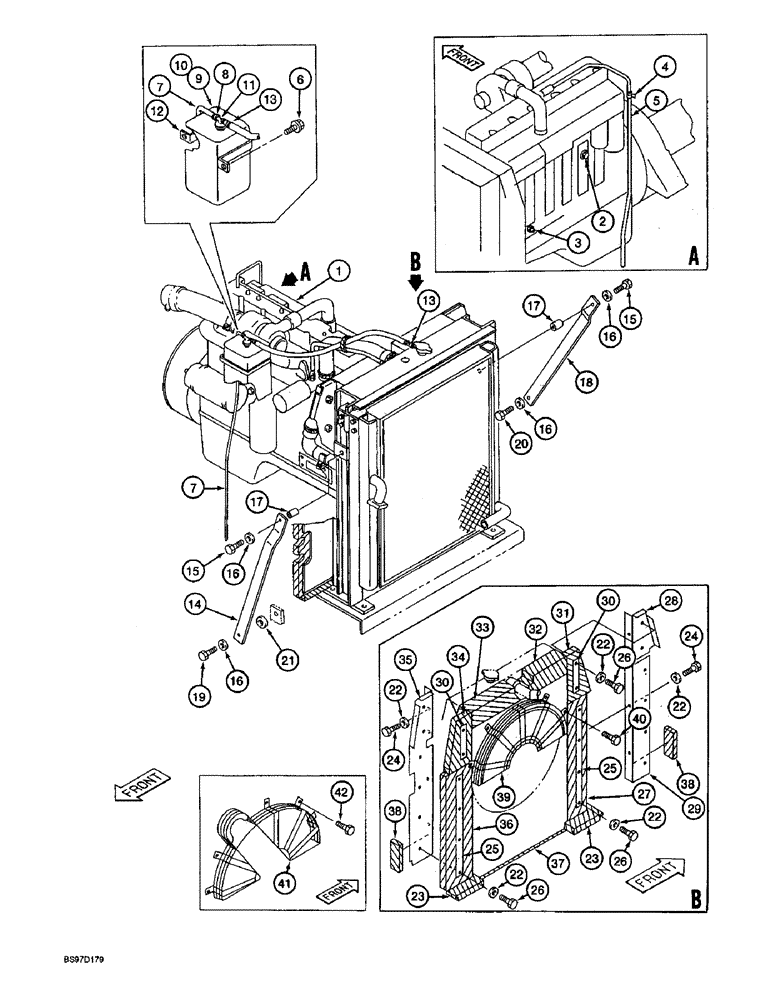

Запчасти Case 9045B (2-04) - RADIATOR SUPPORTS AND COOLANT OVERFLOW RESERVOIR (02) - ENGINE

1

REF

INSTRUCTION

ENGINE ASSEMBLY - see parts list Figures 2-12 thru 2-52 and 3-8 thru 3-16, Includes: Ref. 2 and 3

1шт.

2

1983238C1

SENSOR,1/2" - 14

SENDER - engine coolant temperature, coolant

1шт.

3

1546461C1

SWITCH

- oil pressure, 10 psi

1шт.

4

157916A1

CLAMP

- special, engine breather hose

1шт.

5

1981644C1

HOSE

- 1100 mm (43-5/16 inch) long, special, engine breather

1шт.

6

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special, reservoir holder

1шт.

7

157489A1

HOSE

- 1100 mm (43-1/3 inch) long, reservoir overflow

1шт.

8

153040A1

COLLAR

CLAMP - wire-type

1шт.

160639A1

RESERVOIR, COOLANT E

RESERVOIR ASSEMBLY - coolant overflow, Includes: Ref. 9 - 11

1шт.

9

161740A1

SWITCH

- sender, coolant level

1шт.

10

161847A1

RESERVOIR, COOLANT E

RESERVOIR - coolant overflow

1шт.

11

161848A1

PLUG

CAP - reservoir, removable

1шт.

12

164271A1

HOLDER

- coolant overflow reservoir

1шт.

13

153042A1

CLAMP

- adjustable, left-hand, front

1шт.

14

164270A1

SUPPORT

- radiator, wire type, radiator overflow hose

2шт.

15

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

Radiator support Hex, M16 x 70, 10.9

2шт.

16

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

4шт.

17

158958A1

SPACER

- special

2шт.

18

158959A1

SUPPORT

- radiator, left-hand, rear

1шт.

19

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

Radiator support Hex, M16 x 50, 10.9

2шт.

20

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

21

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

2шт.

22

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

20шт.

23

164284A1

SEAL

- cushion

2шт.

24

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

8шт.

25

158969A1

RING

RETAINER - seal

2шт.

26

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

12шт.

27

164283A1

SEAL

- cushion

1шт.

28

164272A1

BRACKET

- radiator, left-hand, front

1шт.

29

164273A1

BRACKET

- radiator

1шт.

30

158968A1

RING

RETAINER - seal

2шт.

31

165068A1

SEAL

- cushion

1шт.

32

158975A1

SEAL

- cushion

1шт.

33

158976A1

SEAL

- cushion

1шт.

34

158971A1

SEAL

- cushion

1шт.

35

164274A1

BRACKET

- radiator, left-hand, rear

1шт.

36

164275A1

SEAL

- cushion

1шт.

37

158965A1

SEAL

- cushion

1шт.

38

158977A1

SEAL

- cushion

2шт.

39

165066A1

GUARD ASSY.

GUARD - fan, machines without air conditioning

1шт.

40

162120A1

BOLT,Sems, Hex, M10 x 20mm, Spcl

BOLT - special, fan guard

4шт.

41

164278A1

GUARD ASSY.

GUARD - fan, machines with air conditioning

1шт.

42

162120A1

BOLT,Sems, Hex, M10 x 20mm, Spcl

BOLT - special, air conditioning fan guard

7шт.
