(8-110) - PILOT CONTROL SOLENOID VALVE

Запчасти Case 9045B (8-110) - PILOT CONTROL SOLENOID VALVE (08) - HYDRAULICS

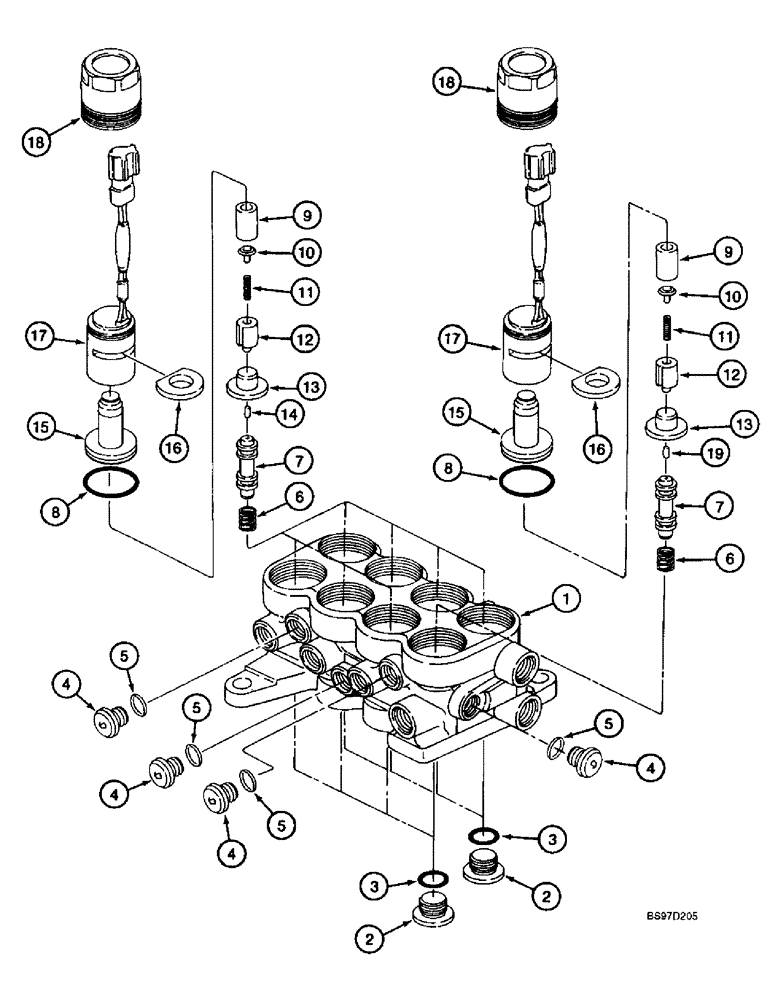

Схема запчастей Case 9045B - (8-110) - PILOT CONTROL SOLENOID VALVE (08) - HYDRAULICS
4
4
4
16
14
9
6
3
3
5
5
13
18
18
2
12
4
13
12
7
11
10
17
16
7
15
5
8
5
11
9
8
10
1
15
6
2
19
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

165454A1

VALVE

ASSEMBLY - solenoid, Includes: Ref. 1 - 19

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

2

165769A1

PLUG

- port, Includes: Ref. 3

8шт.

3

154475A1

O-RING

- plug

1шт.

4

165770A1

PLUG

- port, Includes: Ref. 5

4шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

6

165771A1

SPRING

PLUG - port

8шт.

7

NSS

NOT SOLD SEPARAT

SPOOL - valve

8шт.

8

159975A1

O-RING

- housing

8шт.

9

160068A1

SPACER

PIPE - special

8шт.

10

160246A1

SPRING SEAT

SEAT - spring

8шт.

11

160248A1

SPRING

- plunger

8шт.

12

160193A1

PLUNGER

- valve

8шт.

13

160194A1

STOP

- special, valve

8шт.

14

160024A1

ROD

- special, valve

7шт.

15

160302A1

PLUNGER

HOUSING - valve, inner

8шт.

16

160091A1

SPACER

- special, coil

8шт.

17

160137A1

COIL ASSY.

COIL - solenoid

8шт.

18

160067A1

SCREW

- special retaining

8шт.

19

160025A1

ROD

- special, valve

1шт.
