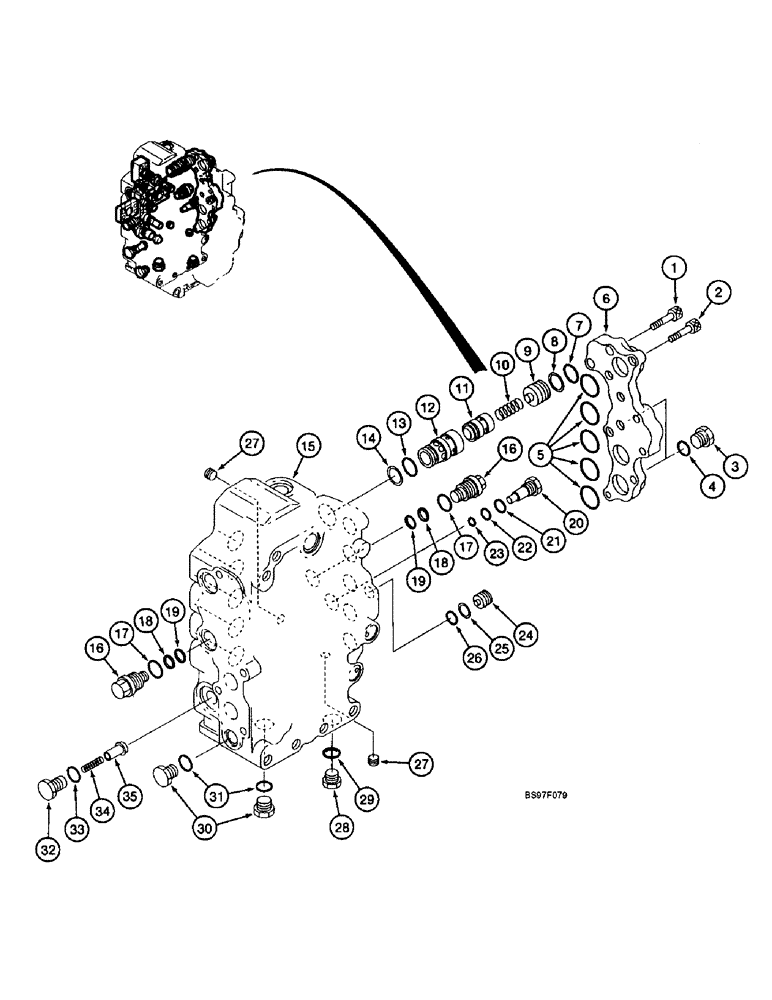

Запчасти Case 9045B (8-102) - HYDRAULIC CONTROL VALVE COMPONENTS, FIVE SPOOL VALVE SECTION, RELIEF AND CHECK VALVES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
VALVE ASSEMBLY - control, see Figure 8-94 for correct valve assembly and parts list Figures 8-94 - 8-108 for components, Includes: Ref. 1 - 35
1шт.
NSS
NOT SOLD SEPARAT
SECTION ASSEMBLY - 5 spool, parts list Figures 8-100 - 8-104, Includes: Ref. 1 - 35
1шт.
1
160288A1
BOLT,Hex Skt
BOLT - hex socket, special
5шт.
2
160287A1
BOLT,Hex Skt
BOLT - hex socket, special
4шт.
3
163972A1
PLUG
- port, cover, Includes: Ref. 4
2шт.
4
154467A1
O-RING,10.8mm ID x 2.4mm Width
- plug
1шт.
5
154547A1
O-RING
-, Serial Range: cover-housing
5шт.
6
160315A1
CAP
COVER - spool end
1шт.
7
153982A1
BACK-UP RING
RING - backup, valve
1шт.
9
160062A1
PLUG
- special, sleeve
1шт.
10
160240A1
SPRING
- poppet
1шт.
11
165495A1
SLEEVE
POPPET - valve
1шт.
12
165494A1
VALVE POPPET
SLEEVE - valve
1шт.
13
155094A1
O-RING
- plug
1шт.
14
154426A1
BACK-UP RING
RING - backup
1шт.
15
NSS
NOT SOLD SEPARAT
HOUSING - valve, five spool side
1шт.
165839A1
PLUG
ASSEMBLY - port, special, Includes: Ref. 16 - 19
2шт.
16
NSS
NOT SOLD SEPARAT
PLUG - port, special
1шт.
18
165779A1
RING
- backup
1шт.
19
165778A1
O-RING
- plug, inner
1шт.
160065A1
PLUG
- special, auxiliary spool, Includes: Ref. 20 - 23
1шт.
20
NSS
NOT SOLD SEPARAT
PLUG - special
1шт.
22
155086A1
O-RING
- plug, middle
1шт.
23
154458A1
O-RING
- seal, plug, inner
1шт.
24
160063A1
PLUG
- port
1шт.
25
153967A1
BACK-UP RING
RING - backup
1шт.
26
154482A1
O-RING
- plug
1шт.
27
157349A1
PLUG
- port
2шт.
28
163370A1
PLUG
- port, Includes: Ref. 29
1шт.
30
157348A1
PLUG
- port
2шт.
31
154475A1
O-RING
- plug
2шт.
32
155464A1
PLUG
- check
1шт.
33
155222A1
O-RING
- plug
1шт.
34
156026A1
SPRING
- compression
1шт.
35
155931A1
VALVE POPPET
VALVE - poppet, main relief isolation check
1шт.
Выбрано товаров: 39
