Запчасти Case 9045B (8-098) - HYDRAULIC CONTROL VALVE COMPONENTS, FOUR SPOOL VALVE SECTION, RELIEF AND CHECK VALVES (08) - HYDRAULICS

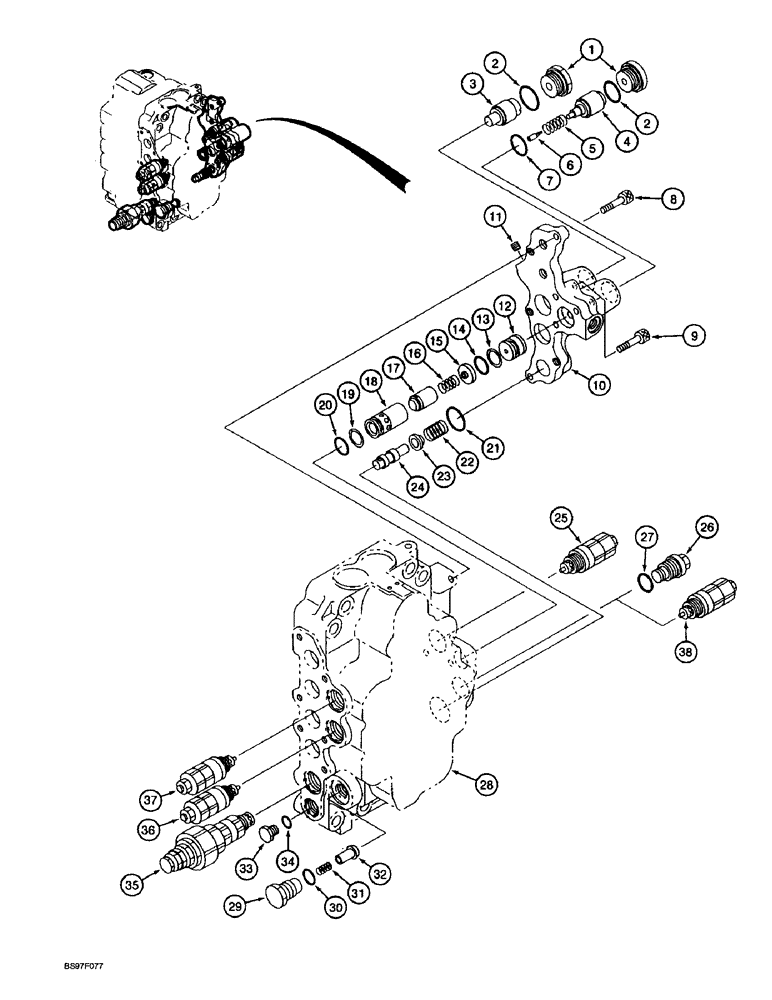

Схема запчастей Case 9045B - (8-098) - HYDRAULIC CONTROL VALVE COMPONENTS, FOUR SPOOL VALVE SECTION, RELIEF AND CHECK VALVES (08) - HYDRAULICS
3
20
2
34
6
14
29
12
28
21
2
30
8
32
11
38
15
16
35
33
18
10
25
23
7
9
1
19
24
31
17
22
5
26
27
13
37
36
4

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

VALVE ASSEMBLY - control, see Figure 8-94 for correct valve assembly and parts list Figures 8-94 - 8-108 for components, Includes: Ref. 1 - 38

1шт.

NSS

NOT SOLD SEPARAT

SECTION ASSEMBLY - 4 spool, parts list Figures 8-96 and 8-98, Includes: Ref. 1 - 38

1шт.

1

160053A1

PLUG

- valve

2шт.

2

155225A1

O-RING

- plug

2шт.

3

160190A1

PISTON

- valve, boom speed restriction

1шт.

4

160191A1

PISTON

- valve, pilot control for boom anti-drift

1шт.

5

160239A1

SPRING

- valve

1шт.

6

160185A1

VALVE POPPET

POPPET - valve

1шт.

7

154547A1

O-RING

- plug

2шт.

8

160287A1

BOLT,Hex Skt

BOLT - hex socket, special

5шт.

9

861-10085

HEX SOC SCREW,M10 x 85mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 85 mm, class 12.9

3шт.

10

160312A1

CAP

COVER - spool end

1шт.

11

165832A1

PLUG

- hex socket, special

1шт.

12

160061A1

PLUG

- special

1шт.

13

153982A1

BACK-UP RING

RING - backup

1шт.

14

154502A1

O-RING

-, Serial Range: sleeve-housing

1шт.

15

160133A1

SPACER

- spring seat

1шт.

16

160240A1

SPRING

- poppet

1шт.

17

160184A1

VALVE POPPET

POPPET - valve, spool end

1шт.

18

160177A1

SLEEVE

- valve, boom anti-drift

1шт.

19

155094A1

O-RING

- plug

1шт.

20

154426A1

BACK-UP RING

RING - backup

1шт.

21

154547A1

O-RING

- cover

4шт.

22

160238A1

SPRING

- return, piston return

1шт.

23

160175A1

SPRING SEAT

SEAT - spring

1шт.

24

NSS

NOT SOLD SEPARAT

SPOOL - valve, for shifting boom 2 spool

1шт.

25

164457A1

VALVE

ASSEMBLY - relief, bucket closing, parts list Figure 8-106

1шт.

26

REF

INSTRUCTION

PLUG ASSEMBLY - port, special, not used in this application, Includes: Ref. 27

1шт.

27

REF

INSTRUCTION

O-RING - plug, not used in this application

1шт.

28

NSS

NOT SOLD SEPARAT

HOUSING - control valve, four spool side

1шт.

29

155464A1

PLUG

- special

1шт.

30

155222A1

O-RING

- plug

1шт.

31

156026A1

SPRING

- compression

1шт.

32

155931A1

VALVE POPPET

VALVE - poppet, main relief isolation check

1шт.

33

157348A1

PLUG

- port

1шт.

34

154475A1

O-RING

- plug

1шт.

35

165835A1

VALVE

ASSEMBLY - relief, main, parts list Figure 8-108

1шт.

36

163380A1

VALVE

ASSEMBLY - relief, boom lowering circuit relief, parts list Figure 8-106

1шт.

37

164457A1

VALVE

ASSEMBLY - relief, bucket open circuit relief, parts list Figure 8-106

1шт.

38

164457A1

VALVE

ASSEMBLY - relief, parts list Figure 8-106

1шт.
