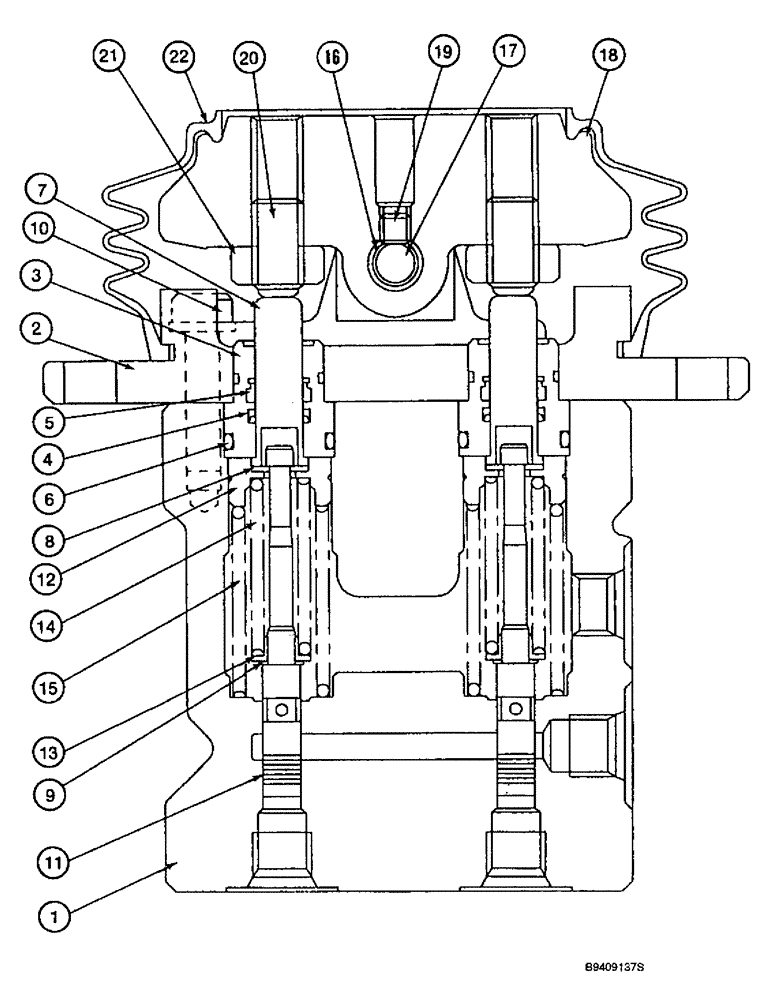

Запчасти Case 9045B (8-090) - PEDAL OPERATED REMOTE CONTROL VALVE, TWO SPOOL (08) - HYDRAULICS

159257A1

CONTROL BLOCK

VALVE ASSEMBLY - remote control, Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - remote control valve

1шт.

2

160308A1

COVER

- remote control valve

1шт.

3

160055A1

PLUG

- cover

2шт.

4

NSS

NOT SOLD SEPARAT

SEAL - cover plug

2шт.

5

NSS

NOT SOLD SEPARAT

SCRAPER - push rod

2шт.

Part of valve seal kit P/N 160130A1

1шт.

6

154491A1

O-RING

- plug

2шт.

Part of valve seal kit P/N 160130A1

1шт.

7

160023A1

THREADED ROD

ROD - push, spool

2шт.

8

LA00056

WASHER

- flat, special; Replaces 160286A1

4шт.

9

160285A1

WASHER

- flat, special

2шт.

10

160284A1

BOLT,Hex Skt

BOLT - hex socket, special

2шт.

11

NSS

NOT SOLD SEPARAT

SPOOL - valve

2шт.

12

160232A1

SPRING SEAT

SEAT - spool spring

2шт.

13

160283A1

WASHER

- spring seat

2шт.

14

160249A1

SPRING

- spool

2шт.

15

160250A1

SPRING

- spool, outer

2шт.

16

160035A1

BUSHING

- cam

2шт.

Part of valve seal kit P/N 160130A1

1шт.

17

160022A1

SHAFT

- cam, valve

1шт.

18

160090A1

CAM

- valve spool

1шт.

19

160071A1

SET SCREW

- set

1шт.

20

160282A1

SCREW

- push rod

2шт.

21

160281A1

LOCK NUT

- lock, push rod screw

2шт.

22

160001A1

BELLOWS

- valve dust cover

1шт.

160130A1

SEAL KIT

KIT - valve seal, Includes: Refs. 5, 6 and 16

1шт.
