Запчасти Case 9045B (8-078) - ARM AND BOOM HOLDING OPTION, BOOM COMPONENTS (08) - HYDRAULICS

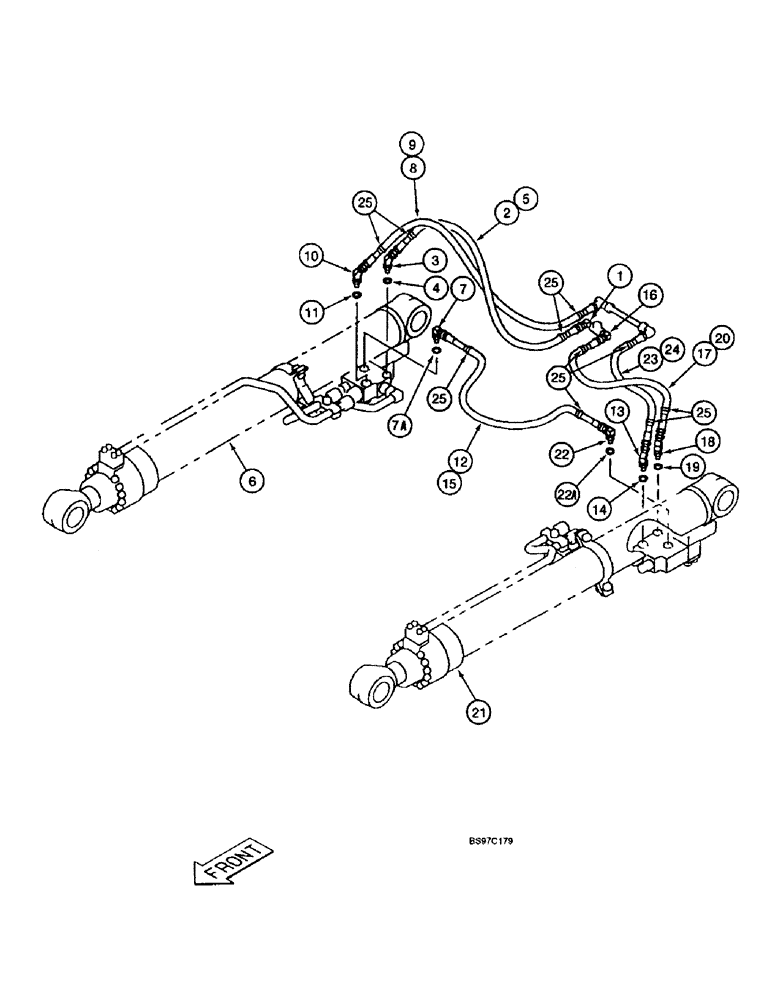

Схема запчастей Case 9045B - (8-078) - ARM AND BOOM HOLDING OPTION, BOOM COMPONENTS (08) - HYDRAULICS
15
24
14
23
20
25
3
18
1
7a
11
17
9
21
7
2
25
12
25
5
16
8
4
22a
22
25
19
25
13
10
6

Артикул

Название

Примечание

Количество

1

153495A1

ADAPTER

ELBOW - 90 degree, connects to ref 5 Figure 8-76

1шт.

2

163581A1

HYDRAULIC HOSE,9.50 mm ID x 600.00 mm

- Boom release signal line (From tee at arm and boom manifold bracket to port "P" of RH hydraulic cylinder lock valve port) 9.50 mm ID x 600.00 mm

1шт.

3

161087A1

ELBOW

- 90 degree, special, Includes: Ref. 4

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

5

157766A1

PLASTIC-RUBBER TUBE,15 mm ID, 19.5 mm OD, 500 mm Length

SLEEVE - corrugated, 500 mm (19-11/16 inch) long, signal line

1шт.

6

REF

INSTRUCTION

CYLINDER ASSEMBLY - boom, right-hand, see Figures 8-124 and 8-126 for correct cylinder and components

1шт.

7

158784A1

ELBOW

- 90 degree, special, Includes: Ref. 7A

1шт.

7a

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

8

163582A1

HYDRAULIC HOSE,9.50 mm ID x 800.00 mm

- Boom release signal return line (From RH hydraulic cylinder lock valve port "T" to tee, Ref 23, Figure 8-76) 9.50 mm ID x 800.00 mm

1шт.

9

157766A1

PLASTIC-RUBBER TUBE,15 mm ID, 19.5 mm OD, 500 mm Length

SLEEVE - corrugated, 500 mm (19-11/16 inch) long, return line

1шт.

10

157584A1

ELBOW

- 90 degree, special, Includes: Ref. 11

1шт.

11

154475A1

O-RING

- elbow

1шт.

12

157845A1

HOSE ASSY.,6.30 mm ID x 750.00 mm

HOSE, , Crossover Line Between Boom Cylinders 6.30 mm ID x 750.00 mm

1шт.

13

157584A1

ELBOW

- 90 degree, special, Includes: Ref. 14

1шт.

14

154475A1

O-RING

- elbow

1шт.

15

157766A1

PLASTIC-RUBBER TUBE,15 mm ID, 19.5 mm OD, 500 mm Length

SLEEVE - corrugated, 500 mm (19-11/16 inch) long, crossover line

1шт.

16

153495A1

ADAPTER

ELBOW - 90 degree, connects to ref 5 Figure 8-76

1шт.

17

163581A1

HYDRAULIC HOSE,9.50 mm ID x 600.00 mm

- Boom release signal line (From tee at arm and boom manifold bracket to port "P" of LH hydraulic cylinder lock valve port) 9.50 mm ID x 600.00 mm

1шт.

18

161087A1

ELBOW

- 90 degree, special, Includes: Ref. 19

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

20

157766A1

PLASTIC-RUBBER TUBE,15 mm ID, 19.5 mm OD, 500 mm Length

SLEEVE - corrugated, 500 mm (19-11/16 inch) long, signal line

1шт.

21

REF

INSTRUCTION

CYLINDER ASSEMBLY - boom, left-hand, see Figures 8-124 and 8-126 for correct cylinder and components

1шт.

22

158784A1

ELBOW

- 90 degree, special, Includes: Ref. 22A

1шт.

22a

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

23

163582A1

HYDRAULIC HOSE,9.50 mm ID x 800.00 mm

- Boom release signal return line (From LH hydraulic cylinder lock valve port "T" to elbow Ref 19, Figure 8-176 9.50 mm ID x 800.00 mm

1шт.

24

157766A1

PLASTIC-RUBBER TUBE,15 mm ID, 19.5 mm OD, 500 mm Length

SLEEVE - corrugated, 500 mm (19-11/16 inch) long, return line

1шт.

25

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.

Выбрано товаров: 27
