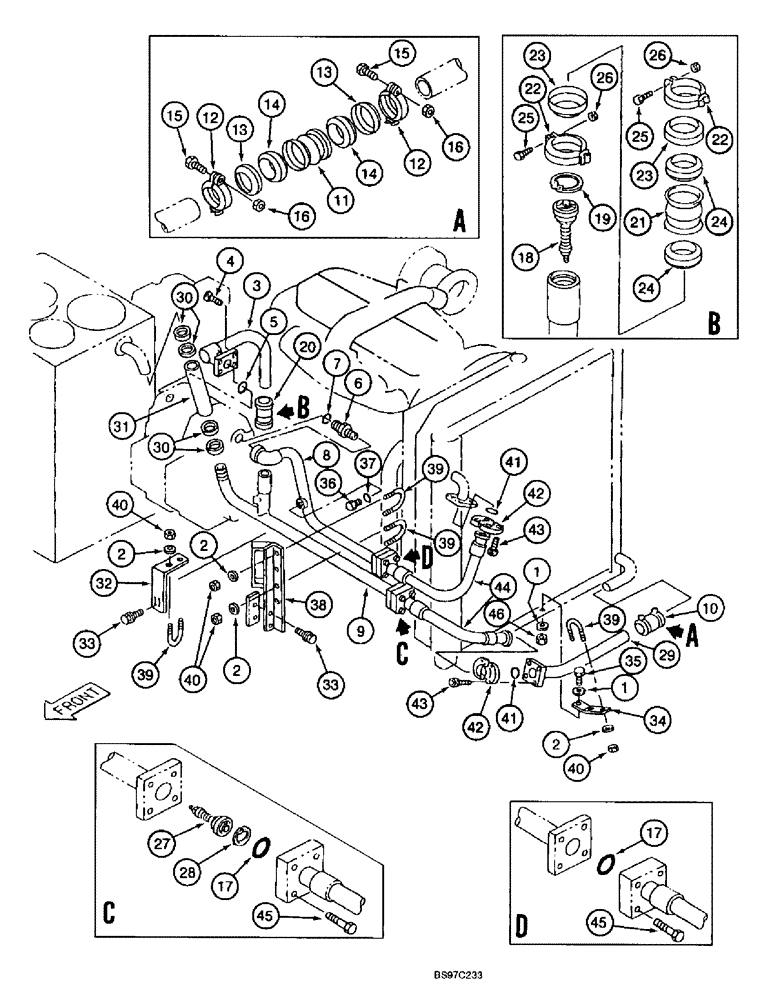

Запчасти Case 9040B (8-014) - COOLING SYSTEM SUPPLY AND RETURN LINES (08) - HYDRAULICS

1

150811A1

WASHER

- flat, special, 12 mm

2шт.

2

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

8шт.

3

159046A1

TUBE ASSY.

TUBE - pump return, to reservoir, Serial Range: -DAC0401132

1шт.

See Figure 1-2 for explanation of model variations.

1шт.

3

163653A1

TUBE ASSY.

TUBE - pump return, to reservoir, these P.I.N. (DAC0401132, DAC0411001, DAC04210010)

1шт.

3

163653A1

TUBE ASSY.

TUBE - pump return, to reservoir, Start Serial: DAC0411001

1шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

4шт.

5

154607A1

O-RING

-, Serial Range: tube-pump

1шт.

6

159047A1

ADAPTER

- straight, special, Includes: Ref. 7

1шт.

7

154559A1

O-RING

- adapter

1шт.

8

159048A1

TUBE

- cooler supply, at pump, Serial Range: -DAC04#2001

1шт.

See Figure 1-2 for explanation of model variations.

1шт.

8

165451A1

TUBE ASSY.,35.7 mm ID, 42.7 mm OD

TUBE - cooler supply, at pump, Start Serial: DAC04#2001

1шт.

See Figure 1-2 for explanation of model variations.

1шт.

9

159058A1

TUBE,42.7 mm OD, 1056, 275 mm Length

- cooler to reservoir return, models without load hold, Serial Range: -DAC0401132

1шт.

See Figure 1-2 for explanation of model variations.

1шт.

9

163654A1

TUBE,42.7 mm OD

- cooler to reservoir return, models without load hold, these P.I.N. (DAC0401132, DAC0411001, DAC0421001)

1шт.

9

163654A1

TUBE,42.7 mm OD

- cooler to reservoir return, models without load hold, Serial Range: DAC0421001-DAC03#2001

1шт.

9

165452A1

TUBE ASSY.,35.7 mm ID, 42.7 mm OD

TUBE - cooler to reservoir return, models without load hold, Start Serial: DAC04#2001

1шт.

See Figure 1-2 for explanation of model variations.

1шт.

9

162840A1

TUBE,35.7 mm ID, 42.7 mm OD

- cooler to reservoir return, models with load hold, Serial Range: -DAC0401132

1шт.

See Figure 1-2 for explanation of model variations.

1шт.

9

163655A1

TUBE,42.7 mm OD

- cooler to reservoir return, models with load hold, Serial Range: DAC0401132-DAC04#2001

1шт.

9

163655A1

TUBE,42.7 mm OD

- cooler to reservoir return, models with load hold, Serial Range: DAC0421001-DAC04#2001

1шт.

See Figure 1-2 for explanation of model variations.

1шт.

9

165470A1

TUBE ASSY.,35.7 mm ID, 42.7 mm OD

TUBE - cooler to reservoir return, models with load hold, Start Serial: DAC04#2001

1шт.

See Figure 1-2 for explanation of model variations.

1шт.

10

159051A1

TUBE

COUPLING ASSEMBLY - special, Includes: Ref. 11 - 16

1шт.

11

159831A1

SLEEVE

- special

1шт.

12

159832A1

SHAFT

CLAMP - coupling

2шт.

13

159833A1

RETAINER

- coupling gasket

2шт.

14

159834A1

GASKET

GASKET - coupling

2шт.

15

159835A1

BOLT

BOLT - special

2шт.

16

159836A1

SPECIAL NUT

- special

2шт.

17

154569A1

O-RING

- seal

2шт.

18

159054A1

VALVE

- check

1шт.

19

800-2150

SNAP RING,M50, Int

RING - internal retaining, No. 50

1шт.

20

159822A1

TUBE

COUPLING ASSEMBLY - special, Includes: Ref. 21 - 26

1шт.

21

159823A1

SLEEVE

- special

1шт.

22

159824A1

COLLAR

CLAMP - coupling

2шт.

23

159825A1

RETAINER

- coupling gasket

2шт.

24

159826A1

GASKET

GASKET - coupling

2шт.

25

159835A1

BOLT

BOLT - special

2шт.

26

159836A1

SPECIAL NUT

- special

2шт.

27

159056A1

VALVE

- check

1шт.

28

800-2140

SNAP RING,M40, Int

RING, SNAP, M40, Int

1шт.

29

159340A1

TUBE,42.7 mm OD, 417, 19.4 mm Length

- cooler return, at cooler

1шт.

30

157287A1

COLLAR

CLAMP - adjustable

4шт.

31

158803A1

HOSE

- 265 mm (10-7/16 inch) long

1шт.

32

159059A1

BRACKET

- mounting

1шт.

33

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

4шт.

34

159343A1

BRACKET

- mounting, Serial Range: -DAC0402001

1шт.

See Figure 1-2 for explanation of model variations.

1шт.

34

164282A1

BRACKET

- mounting, Start Serial: DAC0402001

1шт.

See Figure 1-2 for explanation of model variations.

1шт.

35

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

1шт.

36

152924A1

PLUG

- tube port, Includes: Ref. 37

1шт.

37

154503A1

O-RING

- plug

1шт.

38

159360A1

BRACKET

- mounting

1шт.

39

152065A1

U-BOLT,M10 x 56mm W x 68mm L

BOLT - U-type

4шт.

41

153626A1

O-RING

- hose to cooler intake port

2шт.

42

157856A1

CLAMP BRACKET

FLANGE - split

4шт.

43

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9

8шт.

44

159050A1

HOSE ASSY.

HOSE - 770 mm (30-5/16 inch) long, Serial Range: -DAC04#2001

2шт.

See Figure 1-2 for explanation of model variations.

1шт.

44

164281A1

SPACER

HOSE - 800 mm (31-1/2 inch) long, Start Serial: DAC04#2001

2шт.

See Figure 1-2 for explanation of model variations.

1шт.

45

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, 12 - 1.75 x 50 mm, class 10.9

8шт.

46

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

1шт.

40

829-1410

NUT,M10 x 1.5, Cl 10.9

8шт.
