Запчасти Case 9040B (8-012) - PUMP RTN LINE (08) - HYDRAULICS

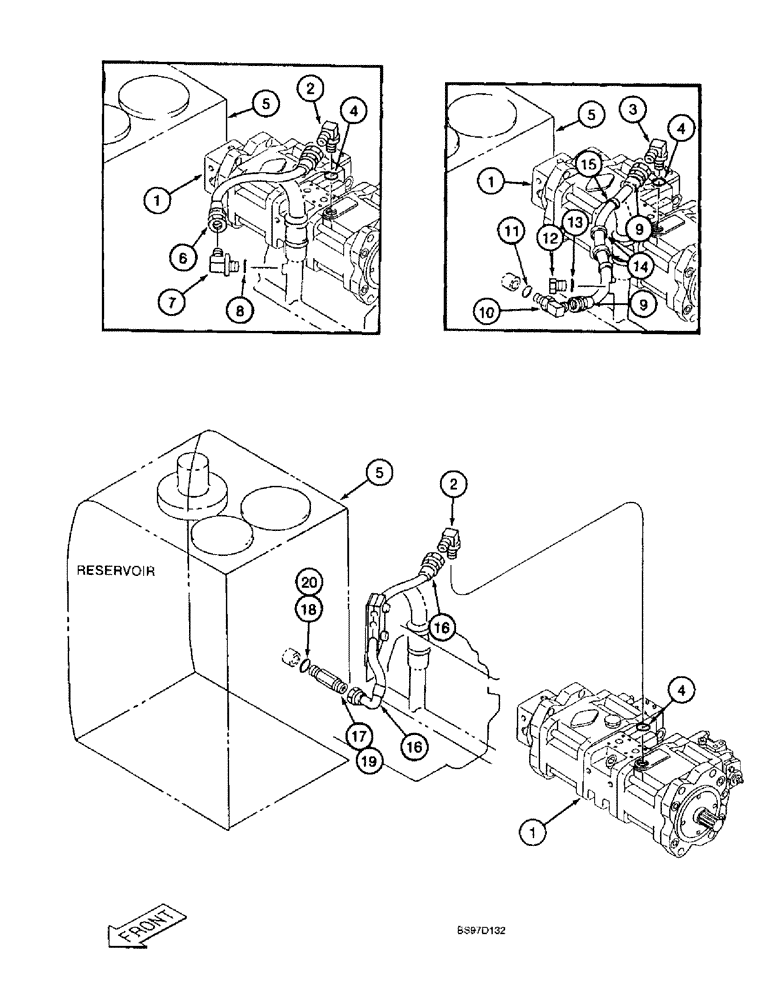

Схема запчастей Case 9040B - (8-012) - PUMP RTN LINE (08) - HYDRAULICS
16
9
17
8
12
11
5
1
7
15
13
1
4
9
19
1
14
20
4
5
2
3
16
2
18
6
10
4
5

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP - hydraulic, see figure 8-4 for correct pump and related parts or figures 8-116 - 8-124 for components

1шт.

2

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

- special, 90 degree, all models except, Serial Range: DAC0401127-DAC0401131

1шт.

3

159371A1

ELBOW

- 90 degree, special, Includes: Ref. 4, Serial Range: DAC0401127-DAC0401131

1шт.

4

154503A1

O-RING

- 157580A1 or 159371A1 elbow

1шт.

5

REF

INSTRUCTION

RESERVOIR - hydraulic, see figure 8-2 for reservoir and related parts

1шт.

6

161012A1

HYDRAULIC HOSE

- 630 mm (24-13/16 inch) long, Pump return, Serial Range: -DAC0401127

1шт.

7

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

- special, 90 degree, Serial Range: -DAC0401127

1шт.

8

154503A1

O-RING

- 157580A1 elbow, Serial Range: -DAC0401127

1шт.

9

163805A1

HOSE ASSY.

HOSE - 900 mm (35-1/2 inch) long, Serial Range: DAC0401127-DAC0401131

1шт.

10

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

- 90 degree, Includes: Ref. 11, Serial Range: DAC0401127-DAC0401131

1шт.

11

154487A1

O-RING

- 150919A1 elbow, Serial Range: DAC0401127-DAC0401131

1шт.

12

152924A1

PLUG

- tube port, if used, Includes: Ref. 13, Serial Range: DAC0401127-DAC0401131

1шт.

13

154503A1

O-RING

- plug, Serial Range: DAC0401127-DAC0401131

1шт.

14

157826A1

GUARD - hose, used with 161268A1 hose, Serial Range: DAC0401127-DAC0401131

1шт.

15

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long, used with 161268A1 hose, Serial Range: DAC0401127-DAC0401131

1шт.

16

164794A1

HOSE ASSY.

HOSE - 790 mm (31-1/8 inch) long, pump to reservoir return line, Start Serial: DAC0401132

1шт.

16

164794A1

HOSE ASSY.

HOSE - 790 mm (31-1/8 inch) long, pump to reservoir return line, Start Serial: DAC0411001

1шт.

16

164794A1

HOSE ASSY.

HOSE - 790 mm (31-1/8 inch) long, pump to reservoir return line, Start Serial: DAC0421001

1шт.

16

164794A1

HOSE ASSY.

HOSE - 790 mm (31-1/8 inch) long, pump to reservoir return line to DAC043100

1шт.

17

158759A1

HYD CONNECTOR

ADAPTER - straight , Includes: Ref. 18, Serial Range: -DAC0401132

1шт.

17

158759A1

HYD CONNECTOR

ADAPTER - straight , Includes: Ref. 18, Serial Range: -DAC0411001

1шт.

17

158759A1

HYD CONNECTOR

ADAPTER - straight , Includes: Ref. 18, Serial Range: -DAC0421001

1шт.

17

158759A1

HYD CONNECTOR

ADAPTER - straight , Includes: Ref. 18, Start Serial: DAC0431001

1шт.

18

154487A1

O-RING

- 158759A1 adapter, Serial Range: -DAC0401132

1шт.

18

154487A1

O-RING

- 158759A1 adapter, Serial Range: -DAC0411001

1шт.

18

154487A1

O-RING

- 158759A1 adapter, Serial Range: -DAC0421001

1шт.

18

154487A1

O-RING

- 158759A1 adapter, Start Serial: DAC0431001

1шт.

19

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 20, Serial Range: -DAC0401132

1шт.

19

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 20, Serial Range: -DAC0411001

1шт.

19

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 20, Serial Range: -DAC0421001

1шт.

19

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 20, Start Serial: DAC0431001

1шт.

20

154503A1

O-RING

- 151654A1adapter, Serial Range: -DAC0401132

1шт.

, Serial Range: -DAC0411001

1шт.

, Serial Range: -DAC0421001

1шт.

, Start Serial: DAC0431001

1шт.
