Запчасти Case 9040B (8-010) - FILTER AND RESERVOIR RETURN LINES (08) - HYDRAULICS

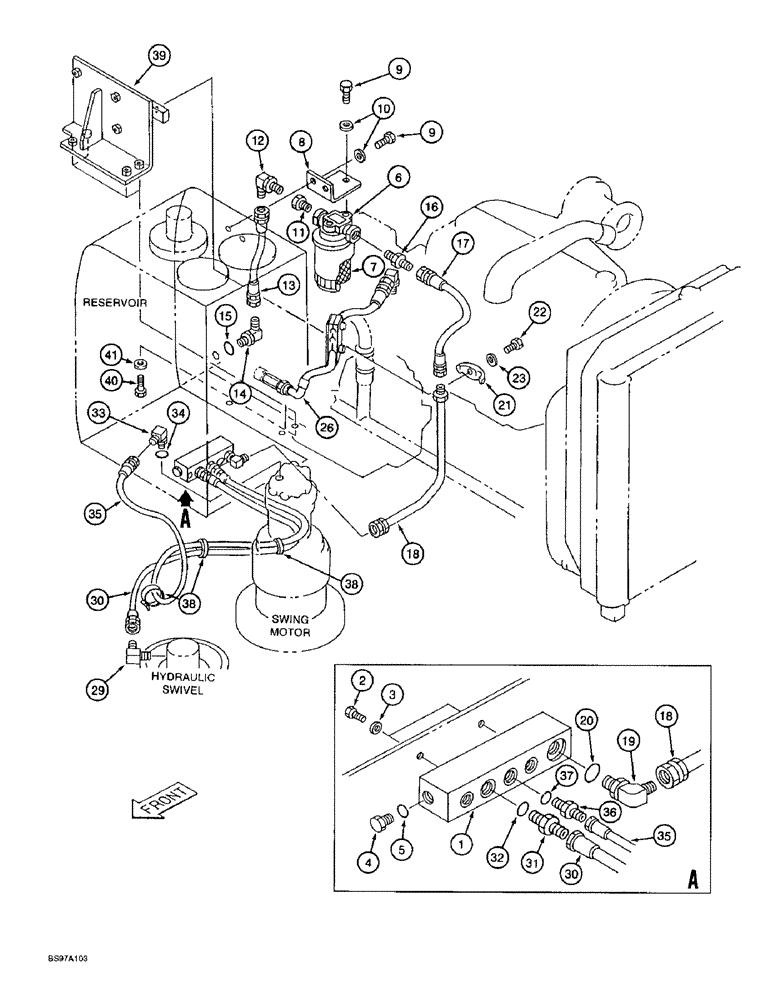

Схема запчастей Case 9040B - (8-010) - FILTER AND RESERVOIR RETURN LINES (08) - HYDRAULICS
23
18
17
9
16
22
36
3
6
9
26
5
1
19
39
38
20
33
41
31
34
35
37
13
29
12
32
2
4
10
38
40
15
35
21
11
30
14
30
18
7
8

Артикул

Название

Примечание

Количество

1

159084A1

MANIFOLD

- hydraulic

1шт.

2

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

2шт.

3

150811A1

WASHER

- flat, special, 12 mm

2шт.

4

159085A1

PLUG

- manifold, if used, Includes: Ref. 5

1шт.

5

154487A1

O-RING

- plug

1шт.

6

150792A1

FILTER ASSY

FILTER ASSEMBLY - oil, Includes: Ref. 7

1шт.

Per ECN's S9910-84 and S9910-84A, Ref. 6, 150792A1 filter assembly, should now only be used on 90A series excavators. The 90B series excavators should use the following: 9010B prior to DAC0102561, 9020B prior to DAC0202849, 9030B prior to DAC0302954, 9040B prior to DAC0402339 and 9045B prior to DAC0452182 must order one piece each of 169041A1 filter assembly, 169174A1 elbow and 169040A1 adapter. The elbow and adapter must replace the old fittings at the filter inlet and outlet. Machines at and after the ser

1шт.

7

150794A1

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

8

153456A1

BRACKET

- mounting

1шт.

9

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

4шт.

10

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

11

151077A1

BUSHING

REDUCER - special, at filter

1шт.

12

153622A1

ADAPTER

ELBOW - 90 degree, special

1шт.

13

159356A1

HYDRAULIC HOSE,19.00 mm ID x 390.00 mm

- Filter to reservoir 19.00 mm ID x 390.00 mm

1шт.

14

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

- special, 90 degree, Includes: Ref. 15

1шт.

15

154503A1

O-RING

- elbow

1шт.

16

159088A1

ADAPTER

- straight

1шт.

17

159087A1

HYDRAULIC HOSE,19.00 mm ID x 400.00 mm

- Filter to tube 19.00 mm ID x 400.00 mm

1шт.

18

159086A1

TUBE ASSY.

TUBE - filter, Serial Range: hose-manifold

1шт.

19

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

- special, 90 degree, Includes: Ref. 20

1шт.

20

154503A1

O-RING

- elbow

1шт.

21

151486A1

CLAMP BRACKET

CLAMP - tube

1шт.

22

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, 12 - 1.75 x 50 mm, class 10.9

1шт.

23

150811A1

WASHER

- flat, special, 12 mm

1шт.

26

REF

INSTRUCTION

HOSE - pump to reservoir return line, see figure 8-12

1шт.

29

150602A1

ADAPTER

ELBOW - 90 degree

1шт.

30

159060A1

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

- Swivel to manifold 12.70 mm ID x 1500.00 mm

1шт.

31

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ADAPTER - straight, Includes: Ref. 32

1шт.

32

154487A1

O-RING

- elbow

1шт.

33

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

- 90 degree, Includes: Ref. 34

1шт.

34

154475A1

O-RING

- elbow

1шт.

35

160619A1

HYDRAULIC HOSE

HOSE - 1750 mm (68-7/8 inch) long, swing, Serial Range: motor-manifold

1шт.

36

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - straight, Includes: Ref. 37

1шт.

37

154475A1

O-RING

- adapter

1шт.

38

150498A1

MOUNTING CLIP

STRAP - tie

1шт.

39

159090A1

BRACKET

- mounting, Serial Range: -DAC04#2001

1шт.

See Figure 1-2 for explanation of model variations.

1шт.

39

165469A1

BRACKET

- mounting, Start Serial: DAC04#2001

1шт.

See Figure 1-2 for explanation of model variations.

1шт.

40

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

4шт.

41

150811A1

WASHER

- flat, special, 12 mm

4шт.

Выбрано товаров: 41
