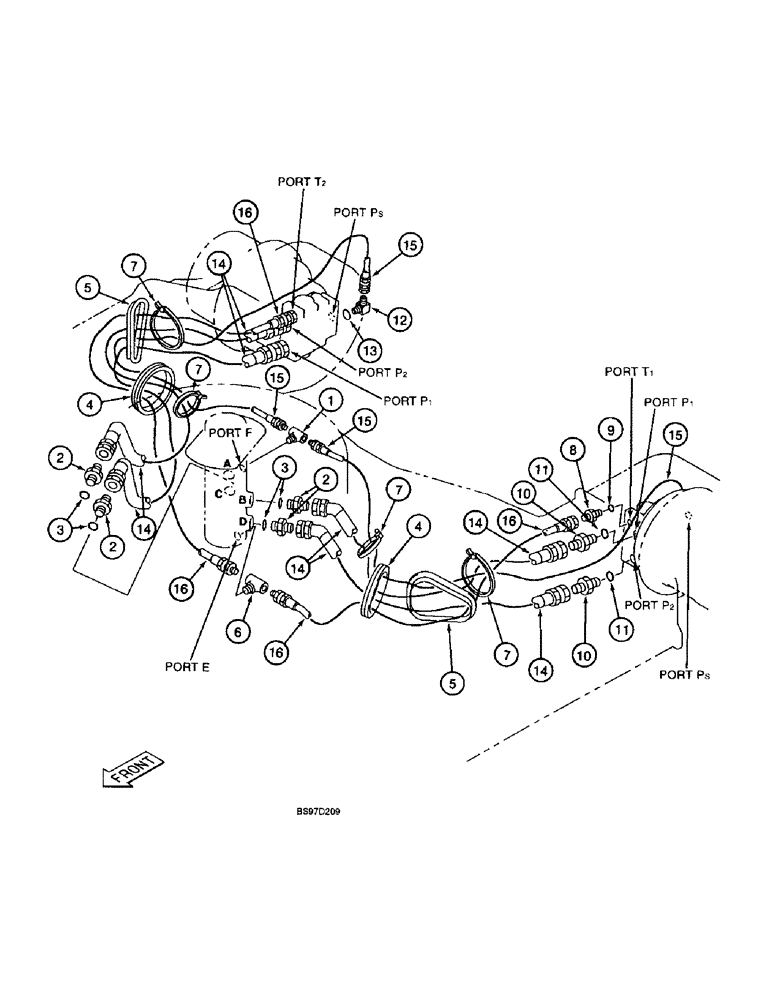

Запчасти Case 9040B (6-24) - TRACK DRIVE HYD CIRCT,SWIVL TO TRACK DRVE MOTOR (06) - POWER TRAIN

1

152509A1

TEE

- special, in hydraulic swivel port F

1шт.

2

153001A1

ADAPTER

- special, in swivel ports A, B, C and D

4шт.

3

154503A1

O-RING

- adapter

4шт.

4

159398A1

RUBBER BLOCK

GUARD - hose

2шт.

5

159658A1

REDUCER

GUARD - hose

2шт.

6

152195A1

TEE

- special, in hydraulic swivel port E

1шт.

7

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

4шт.

8

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ADAPTER - straight, in right-hand motor port P2 and left-hand motor port P1, Includes: Ref. 9

2шт.

9

154487A1

O-RING

- adapter

1шт.

10

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ADAPTER - straight, in right-hand motor port P1 and left-hand motor port P2, Includes: Ref. 11

4шт.

11

154523A1

O-RING

- adapter

1шт.

12

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, in port Ps of drive motors, Includes: Ref. 13

2шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

14

159418A1

HYDRAULIC HOSE,25.4mm ID x 2350mm L

- Adapter (2) in port A to port P2 in RH motor, All models except Timber King 25.40 mm ID x 2350.00 mm

1шт.

14

159418A1

HYDRAULIC HOSE,25.4mm ID x 2350mm L

- Adapter (2) in port C to port P1 in RH motor, All models except Timber King 25.40 mm ID x 2350.00 mm

1шт.

14

159418A1

HYDRAULIC HOSE,25.4mm ID x 2350mm L

- Adapter (2) in port B to port P1 in LH motor, All models except Timber King 25.40 mm ID x 2350.00 mm

1шт.

14

159418A1

HYDRAULIC HOSE,25.4mm ID x 2350mm L

- Adapter (2) in port D to port P2 in RH motor, All models except Timber King 25.40 mm ID x 2350.00 mm

1шт.

15

157203A1

HOSE,2800.00 mm

- nylon, special, 2550 mm (100-3/8 inch) long, special tee (1) in port F to elbow (12) in port Ps of right-hand motor, all models except timber king

1шт.

15

157203A1

HOSE,2800.00 mm

- nylon, special, 2550 mm (100-3/8 inch) long, from special tee (1) in port F to elbow (12) in port Ps of left-hand motor, all models except timber king

1шт.

16

151919A1

HOSE ASSY.,12.70 mm ID x 2360.00 mm

HYDRAULIC HOSE - From special tee (6) in port E to adapter (8) in port T2 of RH motor, All models except Timber King 12.70 mm ID x 2360.00 mm

1шт.

16

151919A1

HOSE ASSY.,12.70 mm ID x 2360.00 mm

HYDRAULIC HOSE - From special tee (6) in port E to adapter (8) in port T1 of LH motor, All models except Timber King 12.70 mm ID x 2360.00 mm

1шт.

14

164198A1

HYDRAULIC HOSE,25.40 mm ID x 2470.00 mm

- Adapter (2) in port A to port P2 in RH motor, Timber King models 25.40 mm ID x 2470.00 mm

1шт.

14

164198A1

HYDRAULIC HOSE,25.40 mm ID x 2470.00 mm

- Adapter (2) in port C to port P1 in RH motor, Timber King models 25.40 mm ID x 2470.00 mm

1шт.

14

164198A1

HYDRAULIC HOSE,25.40 mm ID x 2470.00 mm

- Adapter (2) in port B to port P1 in LH motor, Timber King models 25.40 mm ID x 2470.00 mm

1шт.

14

164198A1

HYDRAULIC HOSE,25.40 mm ID x 2470.00 mm

- Adapter (2) in port D to port P2 in RH motor, Timber King models 25.40 mm ID x 2470.00 mm

1шт.

15

157790A1

HOSE,6.3mm ID x 3000mm L

- 3000 mm (118-1/8 inch) long, special tee (1) in port F to elbow (12) in port Ps of right-hand motor, timber king models

1шт.

15

157790A1

HOSE,6.3mm ID x 3000mm L

- 3000 mm (118-1/8 inch) long, special tee (1) in port F to elbow (12) in port Ps of left-hand motor, timber king models

1шт.

16

164199A1

HYDRAULIC HOSE,12.70 mm ID x 2500.00 mm

- Special tee (6) in port E to adapter (8) in port T2 of RH motor, Timber King models 12.70 mm ID x 2500.00 mm

1шт.

16

164199A1

HYDRAULIC HOSE,12.70 mm ID x 2500.00 mm

- Special tee (6) in port E to adapter (8) in port T1 of LH motor, Timber King models 12.70 mm ID x 2500.00 mm

1шт.
