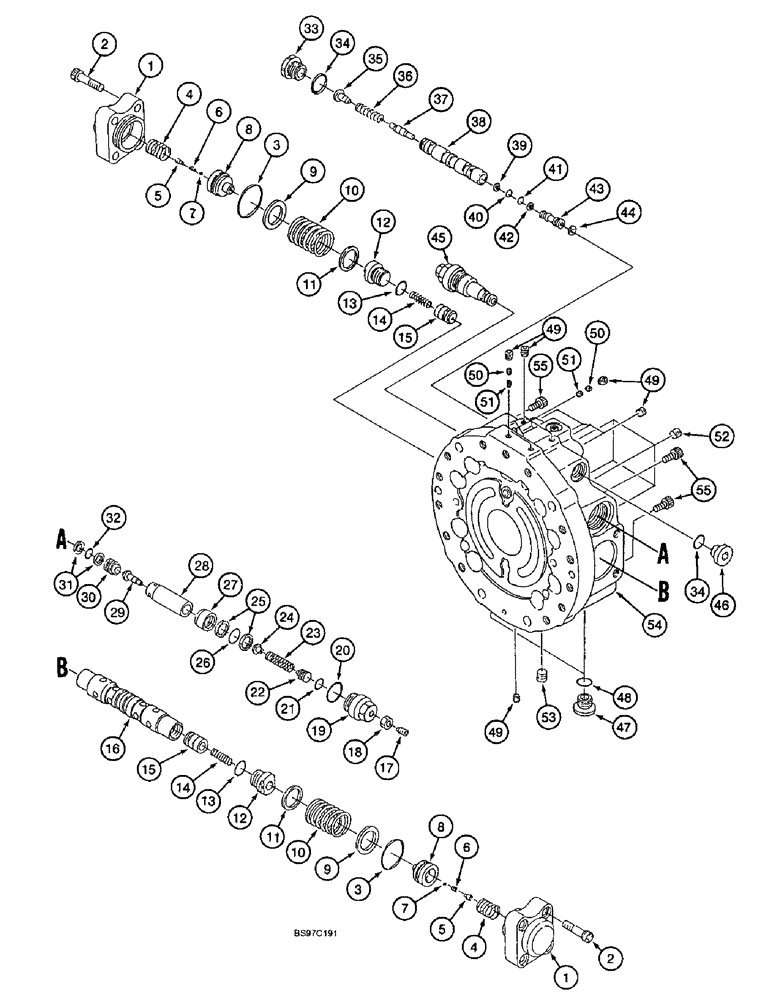

Запчасти Case 9040B (6-16) - TRACK DRIVE MOTOR, BASE PLATE ASSEMBLY AND VALVES, ALL MODELS EXCEPT TIMBER KING MODELS (06) - POWER TRAIN

NSS

NOT SOLD SEPARAT

BASE PLATE ASSEMBLY - track drive motor, Includes: Ref. 1 - 55

1шт.

1

NSS

NOT SOLD SEPARAT

CAP - plunger

2шт.

2

861-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

SCREW - hex socket 12 - 1.75 x 40 mm, class 12.9

8шт.

3

154589A1

O-RING

- seal, plunger cap, replaces 159987A1

2шт.

Part of motor seal kit P/N 160219A1.

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - piston, outer

2шт.

5

NSS

NOT SOLD SEPARAT

GUIDE - spring

2шт.

6

NSS

NOT SOLD SEPARAT

SPRING - piston, inner

2шт.

7

NSS

NOT SOLD SEPARAT

BALL - steel

2шт.

8

NSS

NOT SOLD SEPARAT

PISTON - plunger

2шт.

9

160202A1

SPRING SEAT

SEAT - spring

2шт.

10

160261A1

SPRING

- plunger

2шт.

11

156110A1

SPRING SEAT

SEAT - spring

2шт.

12

NSS

NOT SOLD SEPARAT

PLUG - plunger

2шт.

13

154495A1

O-RING

- plug

2шт.

Part of motor seal kit P/N 160219A1.

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING - check valve

2шт.

15

NSS

NOT SOLD SEPARAT

VALVE - check

2шт.

16

NSS

NOT SOLD SEPARAT

PLUNGER - valve

1шт.

17

NSS

NOT SOLD SEPARAT

SCREW - set

1шт.

18

NSS

NOT SOLD SEPARAT

NUT - set screw

1шт.

19

NSS

NOT SOLD SEPARAT

PLUG - valve

1шт.

20

155225A1

O-RING

- seal

1шт.

Part of motor seal kit P/N 160219A1.

1шт.

21

155063A1

O-RING

- seal

1шт.

22

NSS

NOT SOLD SEPARAT

GUIDE - spring

1шт.

23

NSS

NOT SOLD SEPARAT

SPRING - free piston

1шт.

24

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

25

153977A1

BACK-UP RING

RING - backup

2шт.

Part of motor seal kit P/N 160219A1.

1шт.

26

154495A1

O-RING

- seal

1шт.

Part of motor seal kit P/N 160219A1.

1шт.

27

NSS

NOT SOLD SEPARAT

PISTON - free

1шт.

28

NSS

NOT SOLD SEPARAT

HOUSING - relief

1шт.

29

NSS

NOT SOLD SEPARAT

POPPET - relief housing

1шт.

30

NSS

NOT SOLD SEPARAT

SEAT - poppet

1шт.

31

153964A1

BACK-UP RING

RING - backup

2шт.

Part of motor seal kit P/N 160219A1.

1шт.

32

154479A1

O-RING

- seal

1шт.

Part of motor seal kit P/N 160219A1.

1шт.

33

160080A1

PLUG

- port, special, valve

1шт.

34

154487A1

O-RING

- port plug, replaces 159974A1

3шт.

Part of motor seal kit P/N 160219A1.

1шт.

35

160260A1

COLLAR

GUIDE - spring

1шт.

36

160265A1

SPRING

- spool

1шт.

37

NSS

NOT SOLD SEPARAT

SPOOL C - valve

1шт.

38

NSS

NOT SOLD SEPARAT

SPOOL A - valve

1шт.

39

153937A1

BACK-UP RING

RING - backup

1шт.

Part of motor seal kit P/N 160219A1.

1шт.

40

154443A1

O-RING

- seal, replaces 159988A1

1шт.

Part of motor seal kit P/N 160219A1.

1шт.

41

154447A1

O-RING

- seal

1шт.

Part of motor seal kit P/N 160219A1.

1шт.

42

153940A1

BACK-UP RING

RING - backup

1шт.

Part of motor seal kit P/N 160219A1.

1шт.

43

160197A1

FILTER

- valve

1шт.

44

160111A1

RING, SNAP

RING - snap, special

1шт.

45

160148A1

VALVE, PRESSURE RELI

VALVE ASSEMBLY - relief

2шт.

46

155483A1

PLUG

- port

1шт.

47

155483A1

PLUG

- port

2шт.

48

154487A1

O-RING

- port plug, replaces 159974A1

2шт.

Part of motor seal kit P/N 160219A1.

1шт.

49

155497A1

PLUG

- port, replaces 160077A1

10шт.

50

NSS

NOT SOLD SEPARAT

ORIFICE - base plate

2шт.

51

NSS

NOT SOLD SEPARAT

ORIFICE - base plate

2шт.

52

151026A1

PLUG

- port

5шт.

53

151030A1

PLUG

- port

1шт.

54

NSS

NOT SOLD SEPARAT

PLATE - base

1шт.

55

863-12085

SCREW,Hex Soc Hd, M12 x 85, 12.9

BOLT - hex socket, 12 - 1.75 x 85 mm, class 12.9, attaches base plate assembly to track drive motor housing

4шт.

160219A1

SEAL KIT

KIT - seal, motor, includes Refs. 3, 13, 20, 25, 26, 31, 32, 34, 39 - 42 and 48 on this figure and Refs. 3, 6, 22, 23, 27 and 33 on Figure 6-12

1шт.
