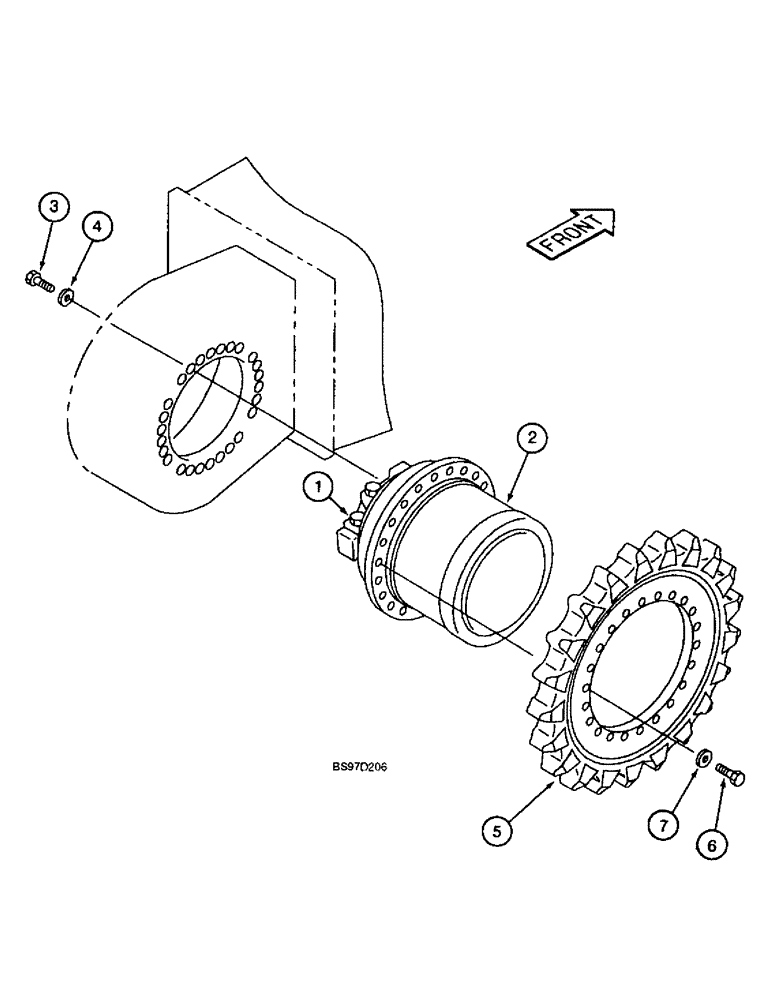

Запчасти Case 9040B (6-02) - FINAL DRIVE TRANSMISSION & TRACK DRIVE MOTOR,, TIMBER KING MODELS (06) - POWER TRAIN

159423A1

MOTOR

ASSEMBLY - track drive, Includes: Ref. 1 and 2

2шт.

1

160142A1

REDUCER

TRANSMISSION ASSEMBLY - see parts list figure 6-4, all models except timber king

1шт.

2

160141A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - track drive, see parts list figure 6-12, all models except timber king

1шт.

3

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

all models except timber king Hex, M16 x 60, 10.9

48шт.

4

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special, all models except timber king

48шт.

5

159679A1

SPROCKET ASSY.

SPROCKET - track drive, all models except timber king

2шт.

6

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

all models except timber king Hex, M16 x 60, 10.9

48шт.

7

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special, all models except timber king

48шт.

163850A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - track drive, Includes: Ref. 1 and 2

2шт.

1

162111A1

REDUCER

TRANSMISSION ASSEMBLY - final drive, see parts list figure 6-8, timber king models

1шт.

2

164484A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - track drive, see parts list figure 6-14, timber king models

1шт.

3

627-24070

BOLT,Hex, M24 x 3 x 70mm, Cl 10.9, Full Thd

- hex, full threads, 24 - 3.0 x 70 mm, class 10.9, Timber King models

36шт.

4

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

- flat, special, timber king models

36шт.

5

151758A1

SPROCKET ASSY.

SPROCKET - track drive, timber king models

2шт.

6

827-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9, Full Thd

- hex, 20 - 2.5 x 65 mm, class 10.9, Timber king models

48шт.

7

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

- flat, special, timber king models

48шт.
