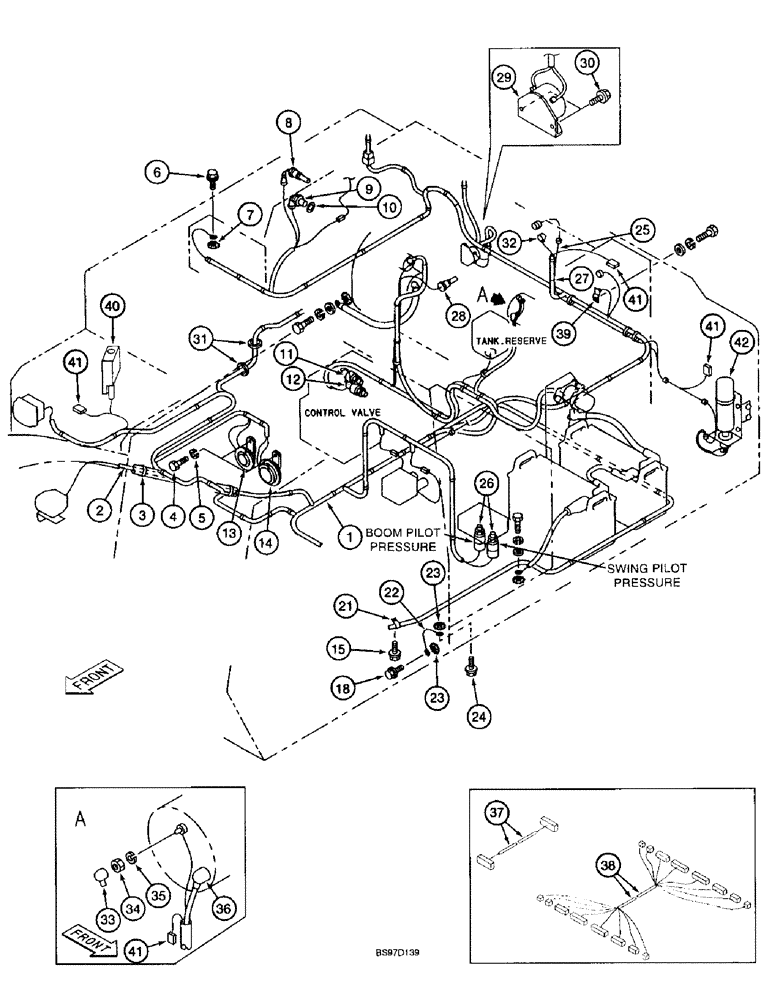

Запчасти Case 9040B (4-10) - MAIN WIRING HARNESS AND CONNECTIONS, PRIOR TO P.I.N. DAC04#2001 (04) - ELECTRICAL SYSTEMS

1

164723A1

HARNESS

- main wiring, replaces 161071A1

1шт.

2

159913A1

HARNESS

- wiring, working lamps

1шт.

3

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

4

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

5

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

6

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

1шт.

7

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER - external tooth lock, 6 mm

1шт.

8

159147A1

SENSOR

- temperature, hydraulic oil

1шт.

Ref. #8 159147A1 is the hyd. oil temperature sensor. Ref. #29 159147A1 is really used as the engine coolant temperature sensor. Ref. #29 screws into ref. #9 reducer bushing shown on figure 2-2.

1шт.

9

159148A1

SWITCH

- temperature, hydraulic oil

1шт.

10

159901A1

SEALING WASHER

WASHER - sealing

1шт.

11

159899A1

PRESSURE SWITCH

SWITCH - pressure, upper pilot pressure

1шт.

12

159900A1

PRESSURE SWITCH

SWITCH - pressure, travel pilot pressure

1шт.

13

159949A1

HORN

- electric, small

1шт.

14

159948A1

HORN

- electric, large

1шт.

15

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm, class 10.9

1шт.

16

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

18

627-6008

BOLT,Hex, M6 x 1 x 8mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 8 mm, class 10.9

1шт.

19

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

20

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 6.6 x 12 x 1.6 mm

1шт.

21

158962A1

CLIP

- harness

1шт.

22

159912A1

CABLE ASSY.

STRAP - ground

1шт.

23

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER - external tooth lock, 6 mm

2шт.

24

627-6008

BOLT,Hex, M6 x 1 x 8mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 8 mm, class 10.9

1шт.

25

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

26

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 6.6 x 12 x 1.6 mm

1шт.

27

159599A1

PRESSURE SWITCH

SWITCH - pressure

2шт.

28

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.

29

159147A1

SENSOR

- temperature, hydraulic oil

1шт.

Ref. #8 159147A1 is the hyd. oil temperature sensor. Ref. #29 159147A1 is really used as the engine coolant temperature sensor. Ref. #29 screws into ref. #9 reducer bushing shown on figure 2-2.

1шт.

30

162218A1

ALARM

- travel

1шт.

31

159905A1

BOLT,Sems, Hex, M6 x 25mm, Spcl

BOLT - hex, special

2шт.

32

150520A1

GROMMET

- rubber

2шт.

33

159184A1

CAP

- terminal

3шт.

34

159173A1

CAP

- terminal, no longer used

1шт.

35

829-1405

NUT,M5, Cl 10

- hex, 5 mm - 0.8, class 10, no longer used

1шт.

36

892-11005

LOCK WASHER,M5

WASHER, LOCK, , No longer used M5

1шт.

37

159173A1

CAP

- terminal

1шт.

38

825-1404

NUT,M4, Cl 8

1шт.

39

892-11004

LOCK WASHER,M4

WASHER, LOCK, M4

1шт.

40

L126191

THERMOSTATIC SWITCH

THERMOCOUPLE - circuit breaking, includes lead wires, cold start, see item 10 on figure 4-42

1шт.

41

159175A1

CAP

- terminal

1шт.

42

161374A1

RESERVOIR ASSY.

RESERVOIR - washer fluid, windshield

1шт.

43

231959A1

DIODE

- electrical

4шт.

44

L126094

VALVE

ASSEMBLY - solenoid, ether injection, see figure 4-42, item 1

1шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.
