Запчасти Case 9040B (4-06) - STARTER ASSEMBLY - 114769A1 (04) - ELECTRICAL SYSTEMS

114769A1

STARTING MOTOR

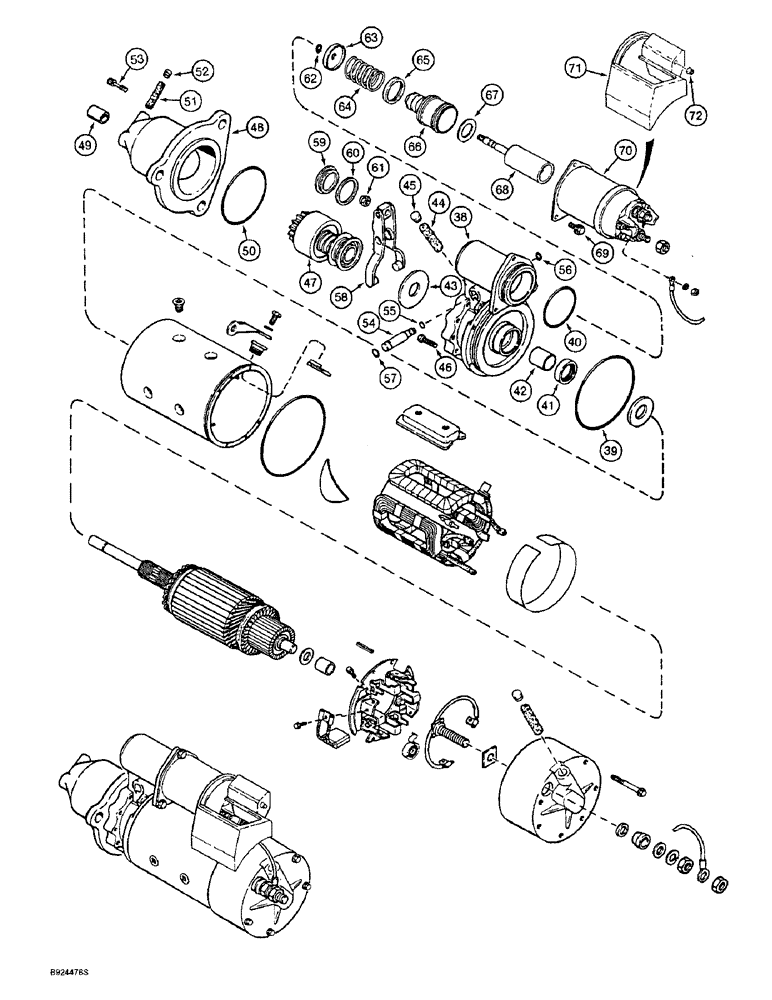

STARTER ASSEMBLY - engine, new, 24 volt, continued from figure 4-4, see figure 2-84 or 2-86 for mounting, Includes: Ref. 38 - 72 and 2 - 37 on Fig. 4-4

1шт.

38

A49772

HOUSING

HOUSING - shift lever

1шт.

39

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

O-RING - 4-1/4 ID x 1/8 inch wide

1шт.

Part of bushing kit P/N A187514

1шт.

40

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

O-RING, -228, 70 Duro, 2.234" ID x .139" Thk

1шт.

Part of bushing kit P/N A187514

1шт.

Part of starter, shift lever kit P/N A187515

1шт.

41

R21582

OIL SEAL

SEAL - oil

1шт.

Part of bushing kit P/N A187514

1шт.

42

A49765

BUSHING

BUSHING - armature

1шт.

Part of bushing kit P/N A187514

1шт.

43

A185121

WASHER

WASHER - shift lever housing

1шт.

Part of bushing kit P/N A187514

1шт.

44

A49567

WICK

WICK - oil, armature bushing

1шт.

Part of bushing kit P/N A187514

1шт.

45

A49573

PLUG

PLUG - oil wick

1шт.

Part of bushing kit P/N A187514

1шт.

46

414-416

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT - hex, 1/4 NF x 1 inch

5шт.

47

A47523

DRIVE

DRIVE - starter

1шт.

48

A49773

HOUSING

HOUSING - drive end

1шт.

49

A47257

BUSHING

BUSHING - armature, drive end housing

1шт.

Part of bushing kit P/N A187514

1шт.

50

A43854

O-RING,3.237" ID x 0.106" THK

O-RING - housing, drive end housing to shift lever housing

1шт.

Part of bushing kit P/N A187514

1шт.

Part of starter, shift lever kit P/N A187515

1шт.

51

A47888

WICK

WICK - oil, drive end housing

1шт.

Part of bushing kit P/N A187514

1шт.

52

A47989

SPRING

PLUG - oil wick, drive end housing

1шт.

Part of bushing kit P/N A187514

1шт.

53

1546551C1

BOLT,Torx Hd, 5/16" - 18 x 0.86"

SCREW - special, drive end housing

6шт.

54

A42199

PIN

SHAFT - shift lever

1шт.

Part of starter, shift lever kit P/N A187515

1шт.

55

A47259

O-RING,0.244" ID x 0.391" OD

O-RING - shaft, inner

1шт.

Part of starter, shift lever kit P/N A187515

1шт.

56

100-1137

SNAP RING,#37, Ext

Ring, Snap, , shift lever shaft #37, Ext

1шт.

Part of starter, shift lever kit P/N A187515

1шт.

57

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

O-RING, -012, 70 Duro, .364" ID x .070" Thk

1шт.

Part of starter, shift lever kit P/N A187515

1шт.

58

A49775

LEVER

LEVER - shift

1шт.

Part of starter, shift lever kit P/N A187515

1шт.

59

R21587

PLUG

PLUG - inspection, lever housing, inspectiion, shift lever housing

1шт.

60

A41924

GASKET

GASKET - housing

1шт.

Part of bushing kit P/N A187514

1шт.

Part of starter, shift lever kit P/N A187515

1шт.

61

131-489

LOCK NUT,5/16"-24, G8

NUT - hex, self-locking

1шт.

Part of bushing kit P/N A187514

1шт.

Part of starter, shift lever kit P/N A187515

1шт.

62

100-1137

SNAP RING,#37, Ext

Ring, Snap, , solenoid plunger #37, Ext

1шт.

63

A43419

SEAT

SEAT - spring

1шт.

64

A41242

SPRING

SPRING - plunger return

1шт.

65

A43380

BACK-UP RING

SEAT - plunger spring

1шт.

66

A49589

BOOT

BOOT - plunger

1шт.

67

A41922

WASHER

WASHER - plunger seat

1шт.

68

A49757

PLUNGER

PLUNGER - solenoid

1шт.

69

1546550C1

BOLT,Torx Wshr Hd, 1/4" - 20 x 0.56"

SCREW - includes washer

3шт.

70

1546546C1

SOLENOID

SOLENOID ASSEMBLY - starter, parts list figure 4-8

1шт.

71

L128826

SHIELD

GUARD - starter terminal

1шт.

72

1546549C1

NUT

NUT - hex flange, special, No. 10 - 32 NF

1шт.

A187514

KIT

KIT - bushing, Includes: Refs. 39 - 45, 49 - 52, 60 and 61 see also figure 4-4

1шт.

A187515

KIT

KIT - shift lever, starter, Includes: Refs. 40, 50, 54-58, 60 and 61 above

1шт.
