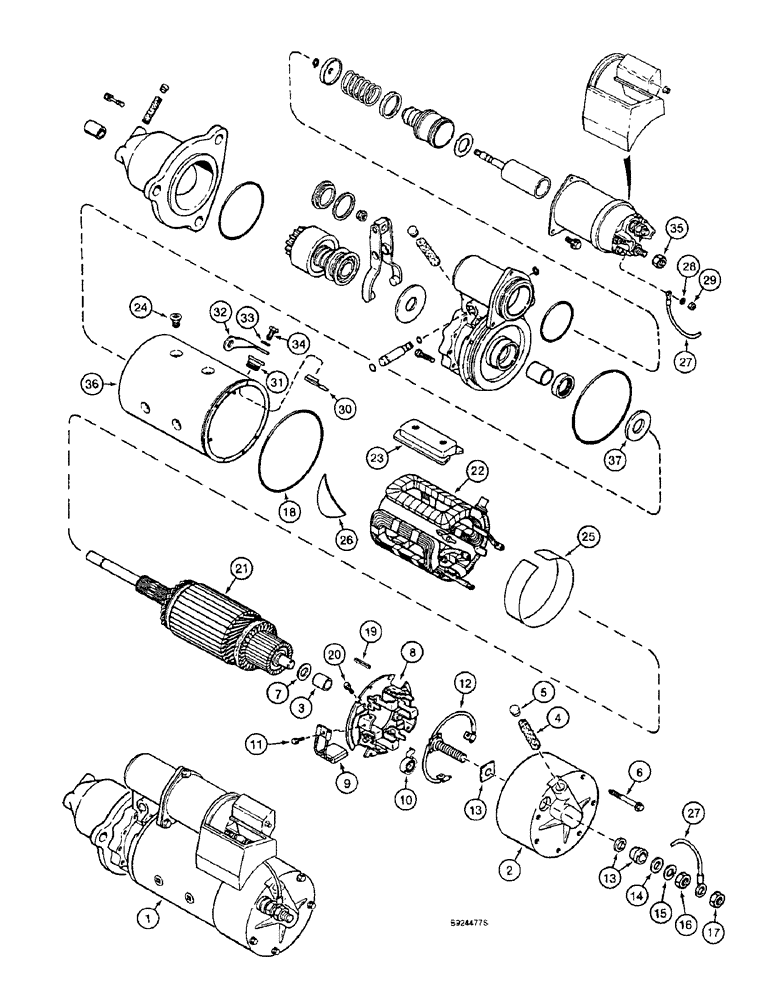

Запчасти Case 9040B (4-04) - STARTER ASSEMBLY - 114769A1 (04) - ELECTRICAL SYSTEMS

1

114769A1

STARTING MOTOR

STARTER ASSEMBLY - engine, new, 24 volt, Includes: Ref. 2 - 37 and 38 - 72 on Fig. 4-6

1шт.

2

A187561

COVER

COVER ASSEMBLY - commutator end

1шт.

3

R15046

SPACER

BUSHING - cover

1шт.

Part of bushing kit P/N A187514

1шт.

4

A49769

WICK

WICK - oil

1шт.

Part of bushing kit P/N A187514

1шт.

5

A49573

PLUG

PLUG - oil wick

1шт.

Part of bushing kit P/N A187514

1шт.

6

A187511

CAPTIVE WASHER SCREW

BOLT - commutator frame

6шт.

Part of starter brush kit P/N A187513

1шт.

Part of bushing kit P/N A187514

1шт.

7

95-81175

WASHER,0.69" ID x 1.12" OD x 0.11" Thk

WASHER - flat, 11/16 x 1-1/8 x 1/8 inch

1шт.

Part of bushing kit P/N A187514

1шт.

8

A49778

BRUSH ASSY.

MOUNT - brush, starter

1шт.

9

A49777

COMMUTATOR BRUSH

BRUSH - starter

4шт.

Part of starter brush kit P/N A187513

1шт.

10

A49575

SPRING

SPRING - brush

4шт.

Part of starter brush kit P/N A187513

1шт.

11

A47894

SCREW,#8 - 32 x 5/16"

SCREW - brush retainer

4шт.

Part of starter brush kit P/N A187513

1шт.

12

A49764

TERMINAL CONNECTOR

WIRE - terminal, commutator end

1шт.

13

A49768

KIT

KIT - insulator, terminal

1шт.

14

95-81101

WASHER,0.52" ID x 0.88" OD x 0.07" Thk

WASHER - flat, 33/64 x 7/8 x 1/16 inch

1шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

16

425-148

JAM NUT,Jam, 1/2"-13, G5

NUT - hex, jam, 1/2 inch NC

1шт.

17

A47890

NUT

NUT - flange type, special, 1/2 inch NC

1шт.

18

238-5158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

O-RING, -158, 70 Duro, 4.737" ID x .103" Thk

1шт.

Part of starter brush kit P/N A187513

1шт.

Part of bushing kit P/N A187514

1шт.

19

A49753

PIN, SPLIT (COTTER)

PIN, COTTER PIN - roll

2шт.

20

A47894

SCREW,#8 - 32 x 5/16"

SCREW - brush retainer

4шт.

21

A49770

ARMATURE

ARMATURE - starter

1шт.

22

A49776

COIL ASSY.

COIL - field

1шт.

23

R15115

SHOE

SHOE - pole

4шт.

24

188-100

SCREW,Cross Flat Hd, 3/8"-24 x 5/8"

SCREW - machine, flat Phillips, 3/8 NF x 21/32 inch

8шт.

25

A49767

RUBBER INSULATOR

INSULATOR - field coil terminal

1шт.

26

A41977

RUBBER INSULATOR

INSULATOR - field coil

2шт.

27

A478955

ELECTRICAL WIRE

WIRE WIRE - field coil terminal

1шт.

28

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

29

129-667

NUT,#10-32, LH

NUT, #10-32, LH

1шт.

30

A49501

RUBBER INSULATOR

INSULATOR - inner, field terminal

1шт.

31

A49500

RUBBER INSULATOR

INSULATOR - outer, field terminal

1шт.

32

A49779

TERMINAL CONNECTOR

CONNECTOR - field terminal to solenoid

1шт.

33

A42100

WASHER

WASHER - flat, special

1шт.

34

A49751

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW - field terminal connector

1шт.

35

A47890

NUT

NUT - flange type, special, 1/2 inch NC

1шт.

36

NSS

NOT SOLD SEPARAT

FRAME - field, order A187568 starter assembly

1шт.

37

A40892

WASHER

WASHER - thrust

1шт.

Part of bushing kit P/N A187514

1шт.

A187513

KIT

KIT brush, starter, Includes: Refs. 6, 9 thru 11 and 18

1шт.

A187514

KIT

KIT - bushing, Includes: Refs. 3 thru 7, 18 and 37 see also Figure 4-6

1шт.
