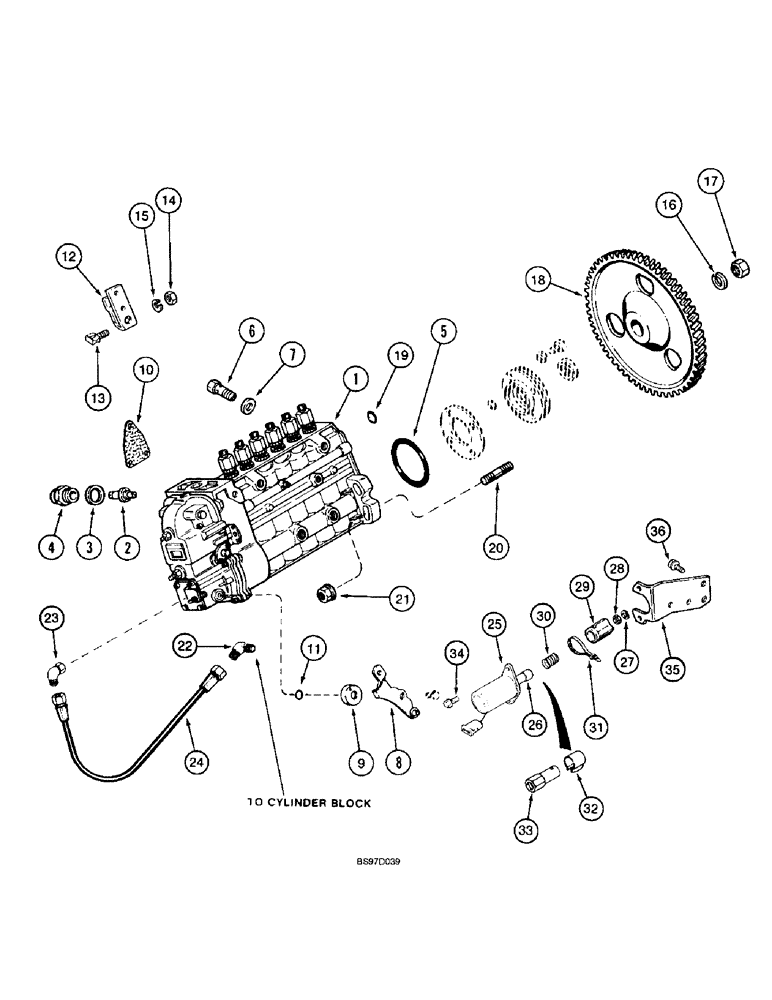

Запчасти Case 9040B (3-22) - FUEL INJECTION PUMP AND DRIVE, 6T-830 ENGINE, PRIOR TO P.I.N. DAC04#2001 (03) - FUEL SYSTEM

1

J921163

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new, Includes: Ref. 2 - 17

1шт.

JR921163

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 17

1шт.

JC921163

CORE-INJECTION PUMP

Return number - For N.A. only

1шт.

JC913339

CORE

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly, Includes: Ref. 2 - 17

1шт.

2

A77720

PIN

PIN - timing

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

SEALING WASHER, M18 x 24 x 1.5

1шт.

4

J912888

PLUG

PLUG - timing

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

O-RING - sealing

1шт.

6

J912886

VALVE

VALVE - overflow

1шт.

7

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm, replaces 933697R1

1шт.

8

J923230

LEVER

LEVER - pump shutoff

1шт.

9

691292C1

RETAINER

HOUSING - spring return

1шт.

10

A46322

GASKET

GASKET - mounting

1шт.

11

680187C1

O-RING,2.5mm Thk x 9mm ID

O-RING - sealing, special

1шт.

12

1808728C1

LEVER

LEVER - throttle control

1шт.

13

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

14

829-1306

NUT,M6, Cl 10

NUT - hex, 6 mm - 1.0, class 10, Throttle lever

1шт.

15

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

16

A77775

LOCK WASHER

WASHER - lock

1шт.

17

A41852

LOCK NUT

NUT - hex, self-locking

1шт.

18

J931378

GEAR

GEAR - fuel pump, replaces J912614

1шт.

19

J916284

O-RING

O-RING - sealing, fuel injection pump

1шт.

20

J915036

STUD

STUD - pump mounting, 55 mm (2-5/32 in)

4шт.

21

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

NUT - hex flange, 10 mm - 1.5, Fuel pump to timing gear housing, replaces J902662

4шт.

22

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

ELBOW, 90º, 7/16-20 45 degree flare x 1/8 inch PT

1шт.

23

J915172

FITTING

ELBOW - 90 degree, 7/16-20 straight thread x 1/8 inch PT

1шт.

24

J906747

HOSE,6.35mm ID x 508mm L

Lubrication

1шт.

25

J928161

SOLENOID

SOLENOID - fuel shutoff, 24 volt, Includes: Ref. 26 - 33

1шт.

26

A77807

SET

KIT - plunger, ball socket and clip, no longer available, order one each of Refs. 32 and 33

1шт.

27

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

28

425-154

JAM NUT,Jam, 1/4"-28, G5

NUT - hex, jam, 1/4 inch NF

1шт.

29

J925171

BOOT

BOOT - protective, plunger

1шт.

30

J923887

SPRING

SPRING - return, plunger

1шт.

31

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP STRAP, CABLE, .098" x 8"

1шт.

32

J923885

SPRING

CLIP - spring

1шт.

33

J928173

BALL JOINT

SOCKET - ball joint

1шт.

34

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

BOLT, Hex Flg, M6 x 15, 8.8, Full Thd

2шт.

35

J923254

SUPPORT

BRACKET - solenoid mounting

1шт.

36

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

BOLT - heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.
