Запчасти Case 9040B (3-20) - FUEL FILTER AND TRANSFER PUMP, 6T-830 EMISSIONS CERTIFIED ENGINE, P.I.N. DAC04#2001 AND AFTER (03) - FUEL SYSTEM

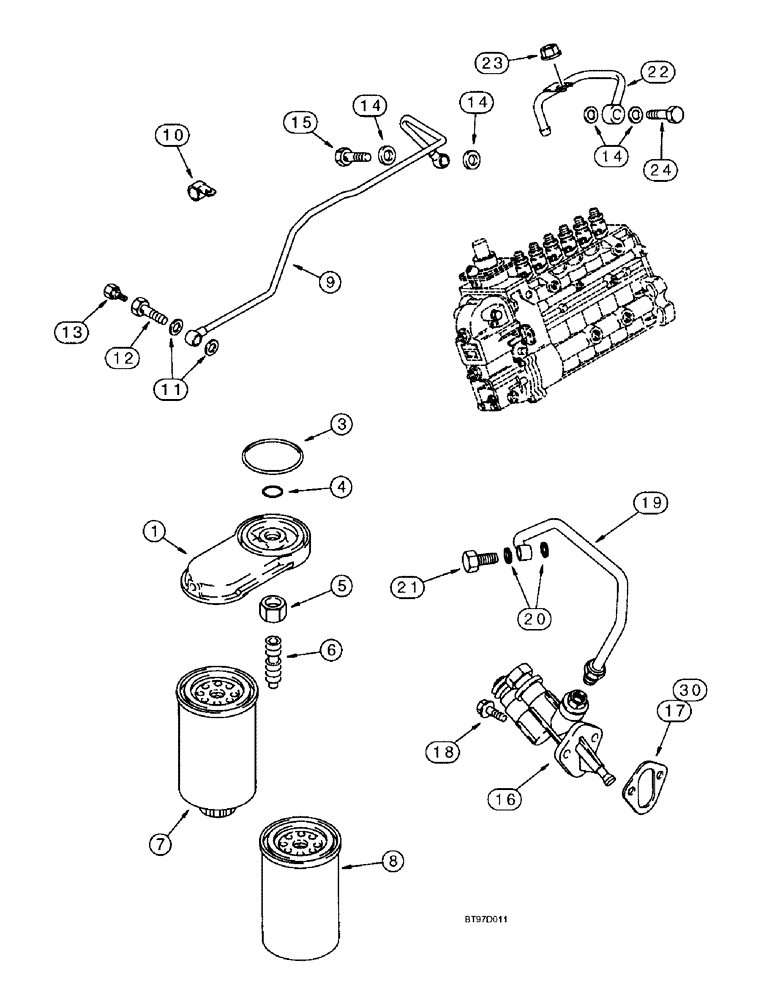

Схема запчастей Case 9040B - (3-20) - FUEL FILTER AND TRANSFER PUMP, 6T-830 EMISSIONS CERTIFIED ENGINE, P.I.N. DAC04#2001 AND AFTER (03) - FUEL SYSTEM
24
20
11
4
16
15
22
23
19
9
14
8
18
3
7
5
14
1
6
30
21
12
13
17
14
10

Артикул

Название

Примечание

Количество

1

J897331

SUPPORT

HEAD - fuel filter

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID, filter head

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID, adapter

1шт.

5

J903293

JAM NUT

- hex, special, 16 mm - 2.0

1шт.

6

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

- fuel filter

1шт.

7

J925274

FILTER, FUEL

FILTER - fuel, primary

1шт.

8

J931063

FUEL FILTER

FILTER - fuel, secondary

1шт.

9

J918873

FUEL TUBE,8 mm OD x 531.9, 92.9 mm L

TUBE - supply, fuel

1шт.

10

J914711

CLIP

CLAMP - P-type

1шт.

11

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

12

J911446

BANJO BOLT,M12 x 1.5 x 24mm

BOLT, BANJO, M12 x 1.5 x 24

1шт.

13

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm

2шт.

15

J924725

BANJO BOLT,M14 x 1.5 x 26mm

BOLT - banjo connector

1шт.

16

J930566

FEED PUMP

PUMP - fuel lift and transfer

1шт.

17

J931348

GASKET

- mounting, fuel transfer pump

1шт.

18

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

19

J918539

FUEL TUBE,8 mm OD x 320.7 mm L

TUBE - supply

1шт.

20

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

21

J916361

BANJO BOLT

BOLT - banjo connector, 12 - 1.5 x 24 mm

1шт.

22

J928028

FUEL TUBE,8 mm OD x 228.7 mm L

TUBE - fuel drain

1шт.

23

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8

1шт.

24

J912886

VALVE

- overflow

1шт.

Выбрано товаров: 23
