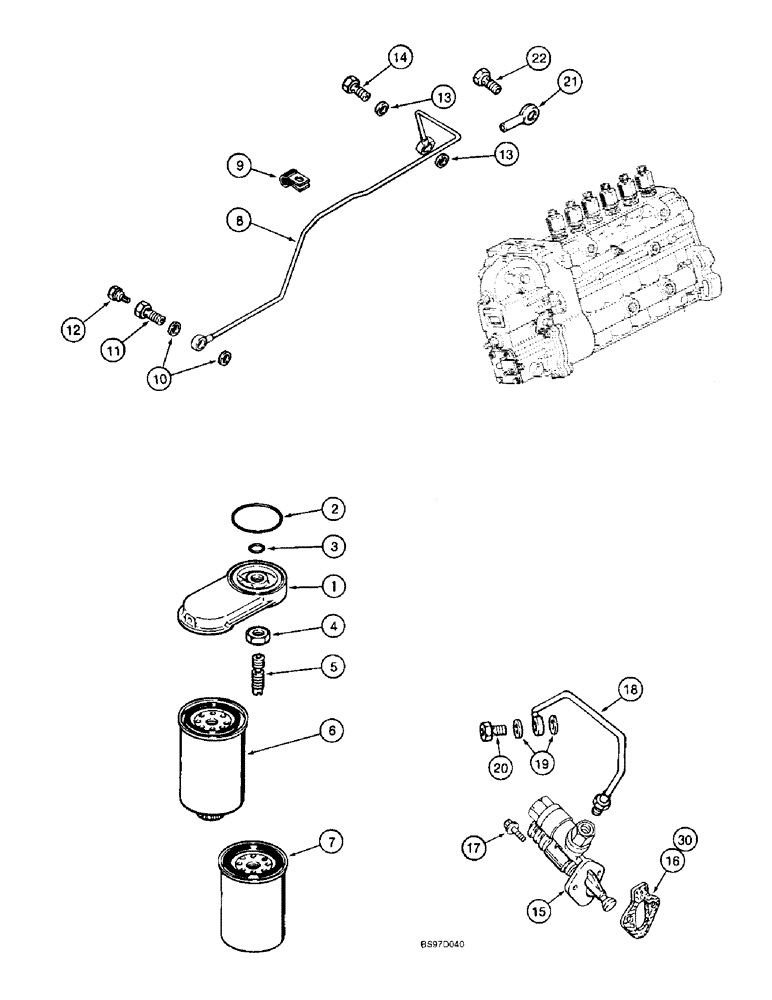

Запчасти Case 9040B (3-18) - FUEL FILTER AND TRANSFER PUMP, 6T-830 ENGINE, PRIOR TO P.I.N. DAC04#2001 AND AFTER (03) - FUEL SYSTEM

1

J897331

SUPPORT

HEAD - fuel filter, replaces J915240

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID, filter head

1шт.

3

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID, adapter

1шт.

4

J903293

JAM NUT

- hex, special, 16 mm - 2.0

1шт.

5

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

- fuel filter, replaces J903845

1шт.

6

J925274

FILTER, FUEL

FILTER - fuel, primary

1шт.

7

J931063

FUEL FILTER

FILTER - fuel, secondary, replaces J903640

1шт.

8

J912923

FUEL TUBE,8 mm OD x 509.8 mm L

TUBE - fuel supply

1шт.

9

J914711

CLIP

CLAMP - P-type

1шт.

10

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

BOLT - connector, banjo hex, special

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - hex, special, vent

1шт.

13

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm

2шт.

14

J907541

BANJO BOLT

BOLT - banjo connector

1шт.

15

J932226

FEED PUMP

PUMP - fuel lift and transfer, replaces J917998 and J930201

1шт.

16

J931348

GASKET

- mounting, fuel transfer pump, replaces J914304 and J923054

1шт.

17

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

2шт.

18

J906790

FUEL TUBE,8 mm OD x 306.3 mm L

TUBE - supply

1шт.

19

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

20

J916361

BANJO BOLT

BOLT - banjo connector, 12 - 1.5 x 24 mm

1шт.

21

J911447

CONNECTOR, ELEC

CONNECTOR - banjo, fuel return

1шт.

22

J912886

VALVE

- overflow, see Ref. 6, figure 3-22

1шт.

23

J926764

GASKET KIT

KIT - transfer pump repair, not shown, use to repair J917998 pump only, Includes: Ref. 24 - 31

1шт.

24

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

2шт.

25

NSS

NOT SOLD SEPARAT

GASKET - check valve, not shown

2шт.

26

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

3шт.

28

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.

29

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.

30

J931348

GASKET

- mounting, fuel transfer pump

2шт.

31

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

1шт.
