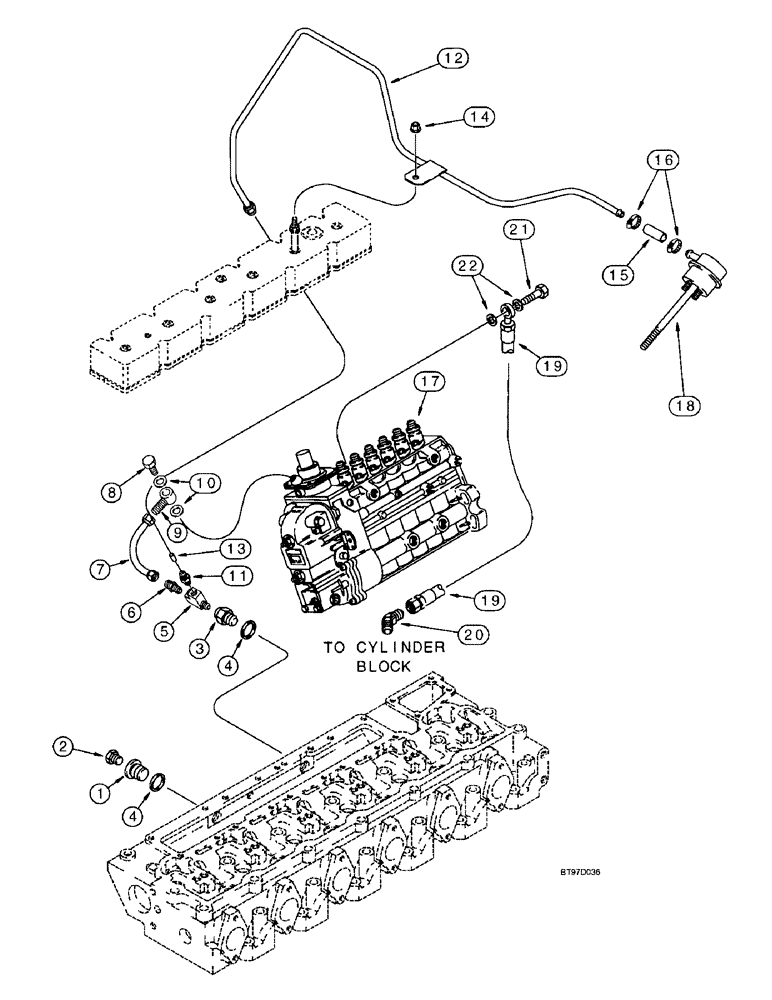

Запчасти Case 9040B (3-16) - ANEROID AND WASTEGATE SYSTEM, 6T-830 EMISSIONS CERTIFIED ENGINE, P.I.N. DAC04#2001 AND AFTER (03) - FUEL SYSTEM

1

J908110

PLUG

- threaded

1шт.

2

86637724

PLUG,1/8" - 27 NPT

Headless Hex Soc, 1/8"-27 NPTF

1шт.

3

J921594

PLUG

- threaded orifice, cylinder, Serial Range: head-tee

1шт.

4

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug

2шт.

5

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

- street, 1/8 inch female PT branch x female PT x PT

1шт.

6

222-21

FITTING,7/16"-24 x 1/8" NPTF

Compression, Tee to aneroid tube 7/16"-24 x 1/8" NPTF

1шт.

7

J926739

TUBE

- aneroid, nylon

1шт.

8

J903035

BANJO BOLT

BOLT - banjo hex, 12 - 1.5 x 24 mm

1шт.

9

J919644

FITTING

CONNECTOR - banjo

1шт.

10

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

11

A77796

CONNECTOR, ELEC

ADAPTER - straight, 1/4 barb end x 1/8 inch PT, tee to wastegate tube

1шт.

12

J926969

TUBE,6.35 mm OD x 661.7 mm L

- wastegate

1шт.

13

222-102

SLEEVE,1/4" Tube

1шт.

14

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

- hex flange, 10 mm - 1.5, Wastegate tube to valve cover

1шт.

15

J920871

HOSE,1294.00 mm

- 51 mm (2 inch) long

1шт.

16

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adj, 1/4 - 5/8 inch dia.

2шт.

17

J926877

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, parts list figure 3-24

1шт.

18

J535106

ACTUATOR

- turbo wastegate, see figure 2-38

1шт.

18

J593679R

REMAN-SOLENOID

9040B, P.I.N. DAC04#2001 & Aft., Reman Actuator For New PN's J535106 & J593679

1шт.

18

J593679C

CORE-SOLENOID

Return Number

1шт.

19

J916779

FUEL HOSE,508.00 mm

Cylinder Block To Injection Pump 508.00 mm

1шт.

20

222-1704

ELBOW,45 Degree, 7/16"-24, 45 Degree Fl x 1/4 NPT

- 45 degree, 7/16-20 flare x 1/8 inch PT

1шт.

21

J918002

BANJO BOLT

SCREW - banjo, hose to injection pump

1шт.

22

J918190

SEALING WASHER,10mm ID x 15.5mm OD x 1mm Thk

WASHER - sealing, special, 10 x 15.5 x 1 mm

2шт.
