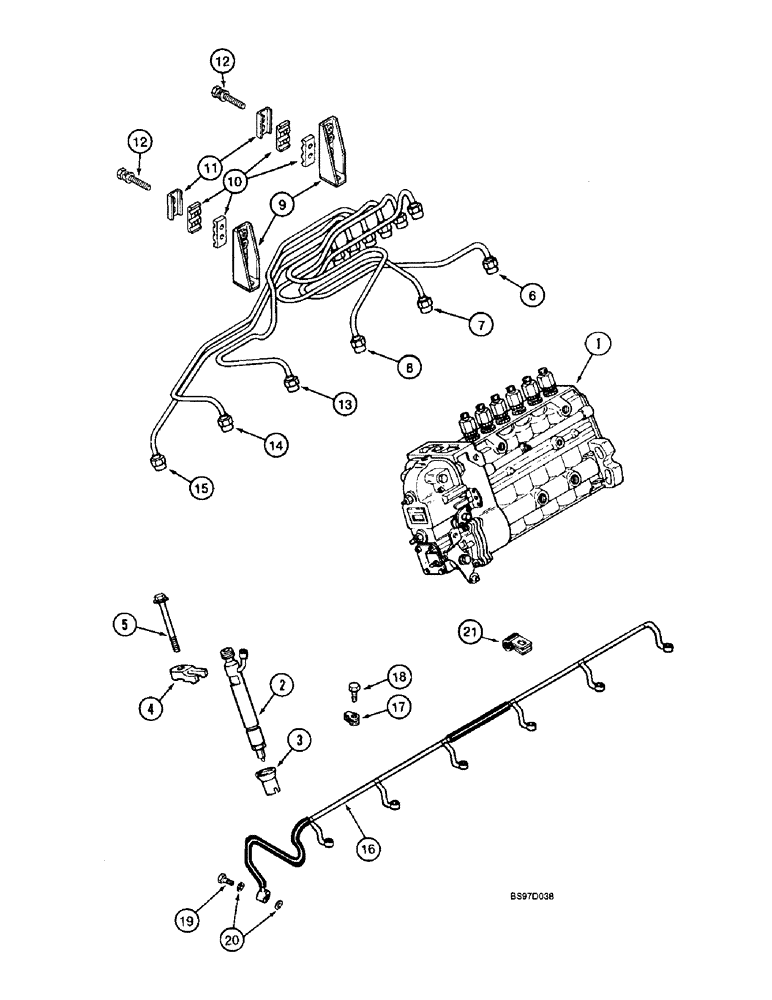

Запчасти Case 9040B (3-12) - FUEL INJECTION SYSTEM, 6T-830 ENGINE, PRIOR TO P.I.N. DAC04#2001 (03) - FUEL SYSTEM

1

J921163

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, see parts list figure 3-22

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, parts list figure 3-26

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector

6шт.

4

J910279

CLAMP

- fuel injector

6шт.

5

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 80 mm

6шт.

6

J906783

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel injector, No. 1 cylinder

1шт.

7

J906784

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel injector, No. 2 cylinder

1шт.

8

J906785

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel injector, No. 3 cylinder

1шт.

9

J917776

BRACE

BRACKET - fuel tube

2шт.

10

J917747

CLAMP

- fuel tube

4шт.

11

J904519

SUPPORT

BRACE - tube retaining

2шт.

12

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

4шт.

13

J910521

FUEL TUBE

TUBE - fuel injector, No. 4 cylinder

1шт.

14

J906787

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel injector, No. 5 cylinder

1шт.

15

J906788

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel injector, No. 6 cylinder

1шт.

16

J920595

TUBE ASSY.

MANIFOLD - fuel drain

1шт.

17

J903380

SEAL

- connector

6шт.

18

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

19

J924726

BANJO BOLT

VALVE - check

1шт.

20

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

- sealing

2шт.

21

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P-type, 1/4 inch ID, used to hold Ref. 16 manifold

1шт.
