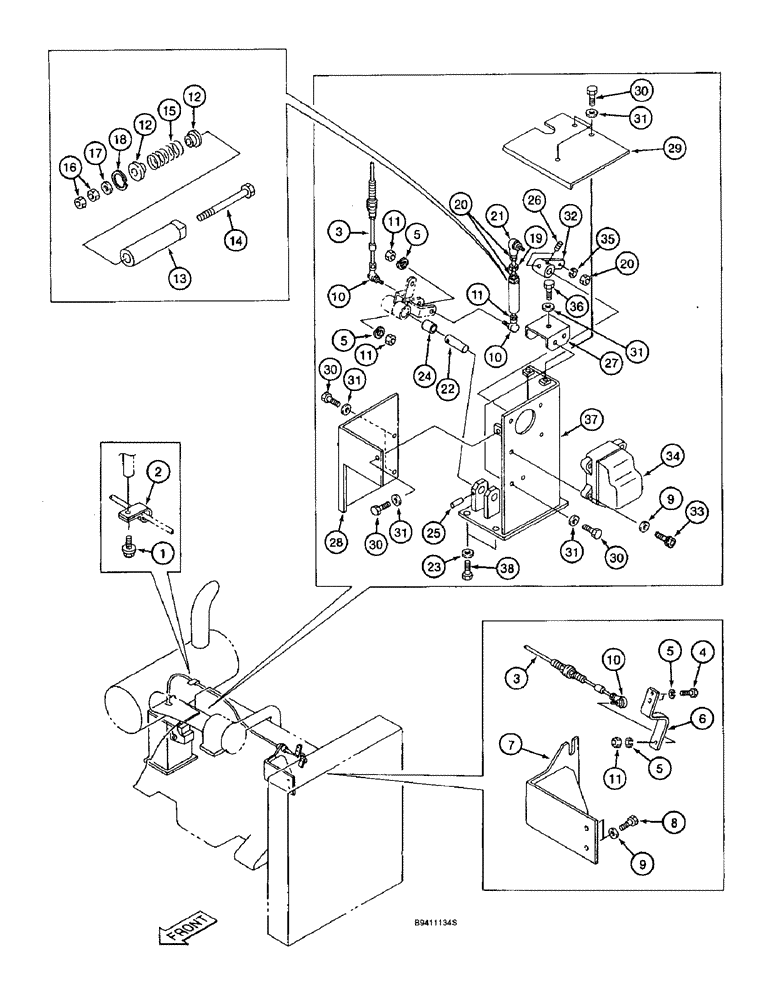

Запчасти Case 9040B (3-08) - THROTTLE AND FUEL SHUTOFF CONTROLS, PRIOR TO P.I.N. DAC04#2001 (03) - FUEL SYSTEM

1

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

1шт.

2

156462A1

COLLAR

CLAMP - P-type

1шт.

3

160367A1

CONTAINER

CABLE - throttle control, 1650 mm (66 inch) long

1шт.

4

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm, class 10.9

2шт.

5

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

5шт.

6

160646A1

LEVER

- engine control

1шт.

7

160645A1

BRACKET

- engine control lever

1шт.

8

828-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

- hex, 10 - 1.5 x 55 mm, class 10.9

2шт.

9

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

6шт.

10

157155A1

BALL JOINT

JOINT - ball (rod end), Includes: Ref. 11

3шт.

11

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

150535A1

SPRING

ASSEMBLY - cable return, Includes: Ref. 12 - 18

1шт.

12

150453A1

COLLAR CLAMP

GUIDE - spring

2шт.

13

150537A1

TUBE

HOUSING - spring

1шт.

14

150540A1

BOLT,Hex, M6 x 95mm, Spcl

BOLT - hex

1шт.

15

150543A1

SPRING

- cable return

1шт.

16

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 6.6 x 12 x 1.6 mm

1шт.

18

800-2122

SNAP RING,M22, Internal

RING, SNAP, M22, Int

1шт.

19

150547A1

ROD,THREADED

ROD - threaded

1шт.

20

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

3шт.

21

153235A1

BALL JOINT

JOINT - ball (rod end)

1шт.

22

158985A1

PIN

- plain, special

1шт.

23

150811A1

WASHER

- flat, special, 12 mm

4шт.

160647A1

LINK

ASSEMBLY - control, special, Includes: Ref. 24

1шт.

24

160377A1

BEARING, NEEDLE,16 mm ID x 24 mm OD x 26 mm

BEARING - needle

1шт.

25

738-1632

LOCK PIN,M6 x 32, Slotted

PIN - roll, 6 x 32 mm

1шт.

26

878-10812

SET SCREW,Hex Skt, M8 x 12mm, Cup Pt

SCREW - set, hex socket, 8 - 1.25 x 12 mm, cup point

2шт.

27

160651A1

BRACKET

- special

1шт.

28

160648A1

COVER

- engine control bracket, side

1шт.

29

160654A1

COVER

- engine control bracket, top

1шт.

30

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

8шт.

32

160649A1

LEVER

- engine control

1шт.

33

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 40 mm, class 12.9

4шт.

34

160614A1

MOTOR, ELECTRIC

MOTOR - throttle control

1шт.

34

160614A1R

REMAN-ELECTRIC MOTOR

9040B CASE CRAWLER EXCAVATOR, MOTOR, Throttle Control, PRIOR TO P.I.N. DAC04#2001 (11/94-)

1шт.

34

160614A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

35

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

36

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, class 10.9

1шт.

37

160650A1

BRACKET

- engine control

1шт.

38

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

4шт.

31

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

9шт.
