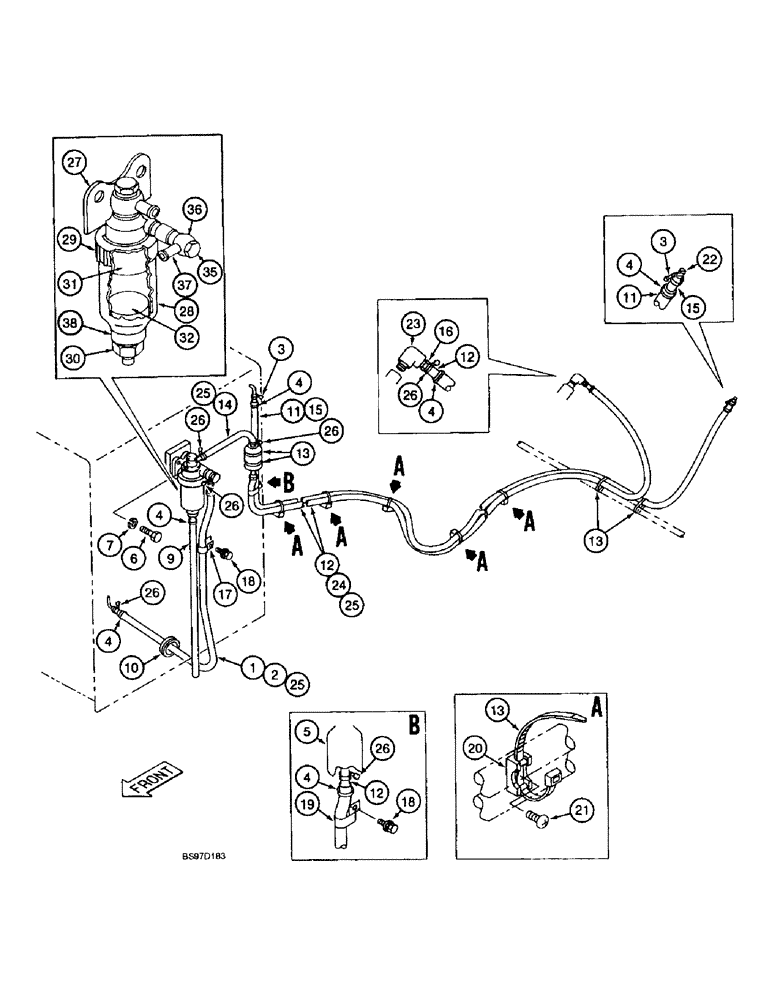

Запчасти Case 9040B (3-06) - FUEL LINES, P.I.N. DAC04#2001 AND AFTER (03) - FUEL SYSTEM

1

165490A1

PLASTIC-RUBBER TUBE

TUBE - vinyl

1шт.

2

158062A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 1000 mm (39-3/8 inch) long

1шт.

3

153043A1

COLLAR

CLAMP - wire-type

2шт.

4

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

7шт.

5

D139225

FILTER, FUEL

FILTER - fuel, in-line, replaces D145357 fuel filter

1шт.

6

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

7

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

9

157629A1

LARGE HOSE,9.5 mm ID, 14.5 mm OD

TUBE - drain

1шт.

10

150520A1

GROMMET

- rubber

1шт.

11

151563A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 3800 mm (149-5/8 inch) long

1шт.

12

165492A1

PLASTIC-RUBBER TUBE

TUBE - vinyl, Serial Range: filter-pump

1шт.

13

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

7шт.

14

165489A1

LARGE HOSE

TUBE - vinyl, Serial Range: separator-filter

1шт.

15

150618A1

PLASTIC-RUBBER TUBE,9.5 mm ID, 14.5 mm OD, 4000 mm Length

TUBE - vinyl, 9.5 ID x 4000, fuel distributor to tank

1шт.

16

157931A1

ADAPTER

- straight, special

1шт.

17

159024A1

COLLAR

CLAMP - P-type

1шт.

18

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

2шт.

19

150585A1

CLAMP

- P-type

1шт.

20

150860A1

COLLAR

BRACKET - support

5шт.

21

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

5шт.

22

151470A1

SPACER

- rubber

1шт.

23

165421A1

ELBOW

- 90 degree

1шт.

24

158070A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 2800 mm (110-1/4 inch) long

1шт.

25

165488A1

SPACER

- rubber

6шт.

26

157706A1

CLAMP

- wire-type

6шт.

151071A1

WATER TRAP

SEPARATOR ASSEMBLY - water, Includes: Ref. 27 - 38

1шт.

27

156289A1

FILTER HEAD

COVER - water separator

1шт.

28

156240A1

FILTER BOWL

HOUSING - water separator

1шт.

29

156184A1

RING NUT

NUT - ring-type

1шт.

30

155467A1

PLUG, DRAIN

PLUG - drain

1шт.

31

156291A1

PLATE

- baffle

1шт.

32

156290A1

FLOAT

INDICATOR - floating

1шт.

33

155175A1

O-RING

- separator, middle section of separator, not shown

1шт.

34

155174A1

O-RING

- separator, lower section of separator, not shown

1шт.

35

156185A1

BANJO BOLT

BOLT - special

2шт.

36

155297A1

GASKET

GASKET - banjo fitting

4шт.

37

156292A1

FITTING

- banjo-type

2шт.

38

155353A1

PLUG

CAP - drain

1шт.
