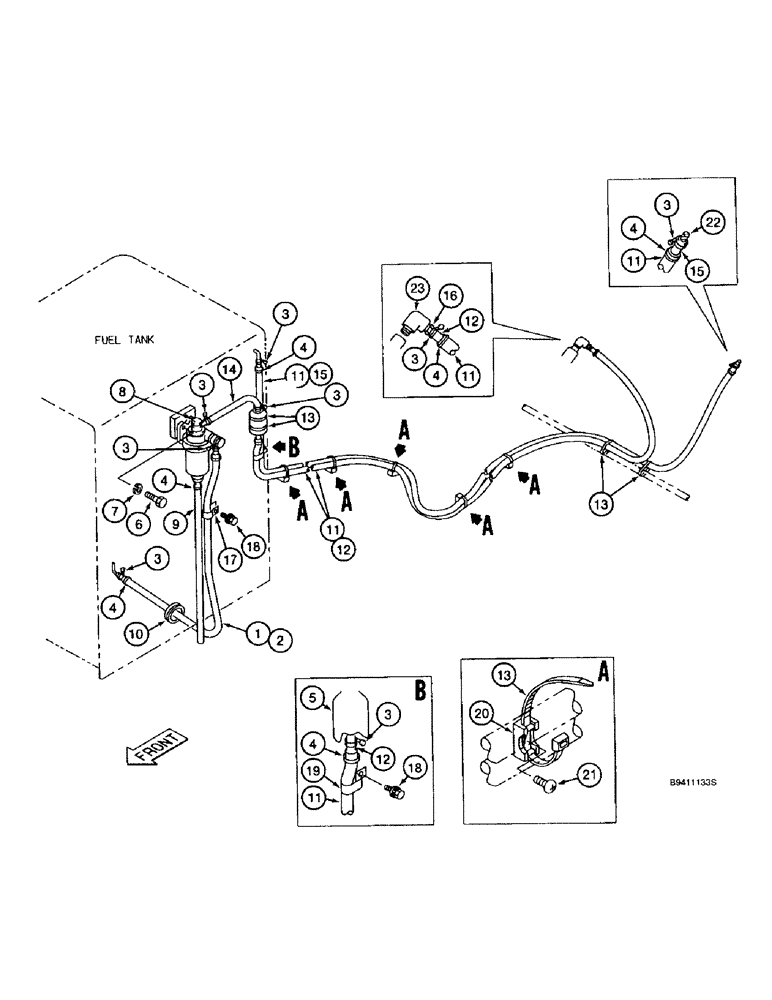

Запчасти Case 9040B (3-04) - FUEL LINES, PRIOR TO P.I.N. DAC04#2001 (03) - FUEL SYSTEM

1

150239A1

PLASTIC-RUBBER TUBE,9.50mm ID, 14.70mm OD

TUBE - fuel tank to separator

1шт.

2

150774A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 1000 mm (39-3/8 inch) long

1шт.

3

153043A1

COLLAR

CLAMP - wire-type

8шт.

4

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

7шт.

5

D139225

FILTER, FUEL

FILTER - fuel, in-line, replaces D145357 fuel filter

1шт.

6

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

2шт.

7

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

8

151071A1

WATER TRAP

SEPARATOR ASSEMBLY - water, parts list figure 3-6

1шт.

9

157629A1

LARGE HOSE,9.5 mm ID, 14.5 mm OD

TUBE - drain

1шт.

10

150520A1

GROMMET

- rubber

1шт.

11

151563A1

PLASTIC-RUBBER TUBE

SLEEVE - corrugated, 3800 mm (149-5/8 inch) long

2шт.

12

150614A1

PLASTIC-RUBBER TUBE,9.5 mm ID, 14.5 mm OD, 4000 mm Length

TUBE - vinyl, 9.5 ID x 4000 mm, filter to pump

1шт.

13

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

9шт.

14

157590A1

TUBE,9.5 mm ID, 14 mm OD, 300 mm Length

- vinyl, separator to filter

1шт.

15

150618A1

PLASTIC-RUBBER TUBE,9.5 mm ID, 14.5 mm OD, 4000 mm Length

TUBE - vinyl, 9.5 ID x 4000, fuel distributor to tank

1шт.

16

157929A1

FITTING

ADAPTER - straight, special

1шт.

17

157807A1

COLLAR

CLAMP - P-type, 20 mm ID

1шт.

18

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

2шт.

19

150585A1

CLAMP

- P-type

1шт.

20

150860A1

COLLAR

BRACKET - support

5шт.

21

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

5шт.

22

151470A1

SPACER

- rubber

1шт.

23

152161A1

ELBOW

- 90 degree

1шт.
