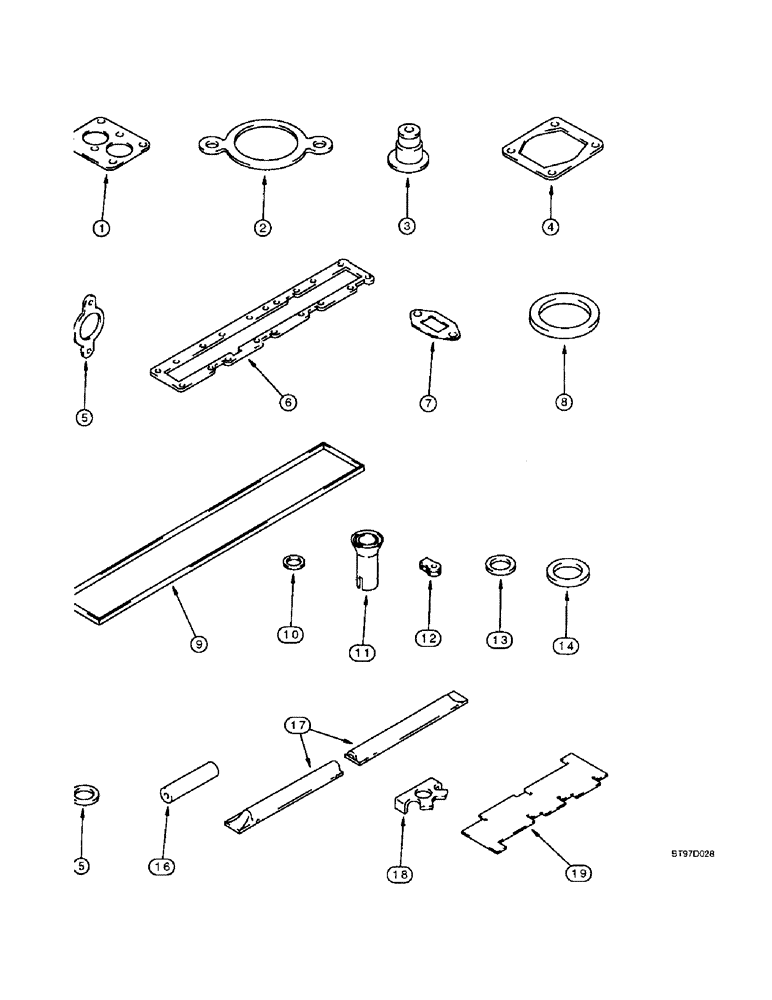

Запчасти Case 9040B (2-92) - VALVE GRIND GASKET KIT, 6T-830 ENGINE, PRIOR TO P.I.N. DAC04#2001 (02) - ENGINE

A77794

GASKET KIT

KIT - gasket, valve grind, Includes: Ref. 1 - 19

1шт.

When the valve grind gasket kit is used, also order the required cylinder head gasket on Figure 2-48.

1шт.

1

J914310

GASKET,0.8mm Thk

- thermostat housing

1шт.

2

J918779

GASKET,1.19mm Thk

- outlet tube, water

1шт.

3

J915707

SEAL

- intake and exhaust valve stem and guide

12шт.

4

J911941

GASKET

- mounting, turbocharger

1шт.

5

J929012

GASKET,0.5mm Thk

- exhaust manifold, 0.54 mm thick, replaces J921787

6шт.

6

J914311

MANIFOLD GASKET

- intake manifold cover

1шт.

7

J931350

GASKET

- turbo oil drain tube, replaces J914388

1шт.

8

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - cap sealing, oil fill cap to valve cover

1шт.

9

J905449

SEAL,7.179mm W x 2090mm L

SEAL - valve cover

1шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt, rocker arm

6шт.

11

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector

6шт.

12

J903380

SEAL

- connector, fuel injection nozzle

7шт.

13

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

Breather tube (Replaces J909397) -115, 70 Duro, .674" ID x .103" Thk

1шт.

14

J906659

SEAL

- injector nozzle, 7 mm injector tip

6шт.

15

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Coolant filter shutoff valve -111, 70 Duro, .424" ID x .103" Thk

1шт.

16

J930827

HOSE,51.00 mm

Breather Tube to Connector, Replaces J918610 51.00 mm

1шт.

17

J919677

TUBE

- oil, rocker arm

1шт.

18

J914708

LOCKING PLATE

PLATE - locking, , bolt, exhaust manifold

12шт.

19

J823921

GAUGE

- cylinder head, bolt length

1шт.
