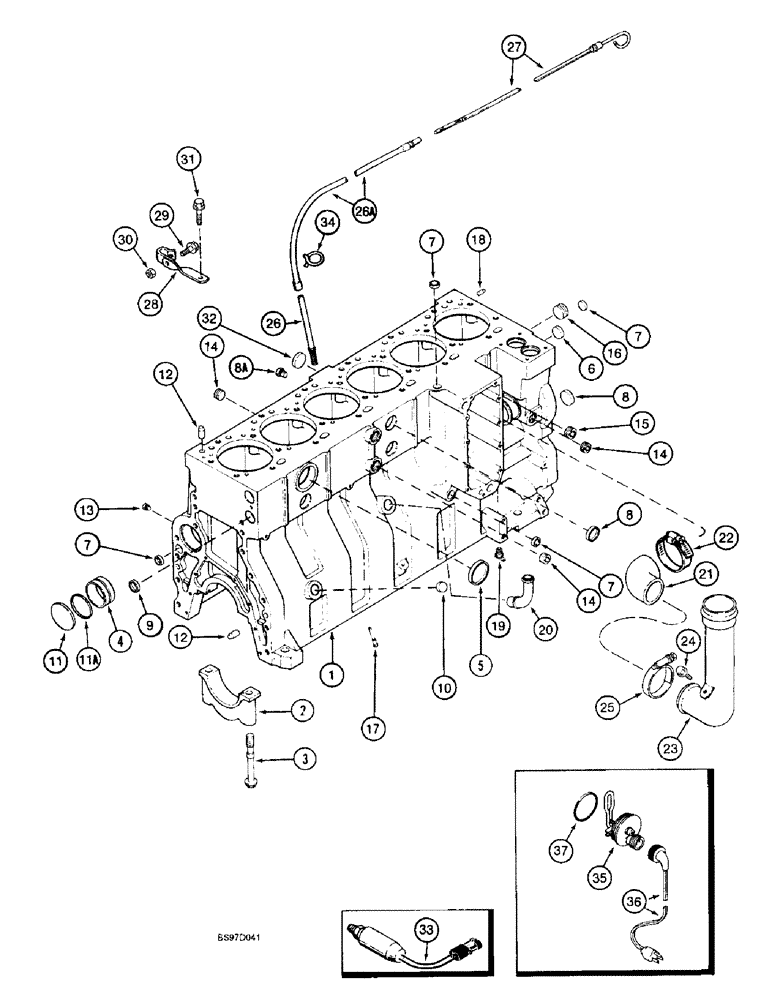

Запчасти Case 9040B (2-68) - CYLINDER BLOCK, 6T-830 ENGINE, PRIOR TO P.I.N. DAC04#2001 (02) - ENGINE

1989190C1

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - complete, 6T-830, includes all parts except fan, fan belt, air cleaner, muffler and exhaust pipe, for service order basic engine below, Includes: Ref. 1 - 8A

1шт.

1989190C1R

REMAN-REPLACEMENT EN

Remanufactured

1шт.

6T-830C

CORE-REPLACEMENT ENG

Return Number, Complete

1шт.

1989098C4

BASIC ENGINE

ENGINE ASSEMBLY - basic, includes all pars except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel & housing, oil fill & dipstick, fuel injection pump, injectors & lines, front pulley, belt tensioner & turbocharger

1шт.

AR174398

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

AC174398

CORE-BASIC ENGINE

Return Number. KNOWN POTENTIAL CORE VARIATIONS, REFER TO CORE CRITERIA FOR PROPER CORE IDENTIFICATION

1шт.

J926152

SKELETON ENGINE

BLOCK ASSEMBLY - short, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Includes: Ref. , Includes: Ref. 1 - 8A

1шт.

1

J929604

CRANKCASE

BLOCK ASSEMBLY - stripped engine, replaces J926145 stripped block assembly, no longer available, order J926152 short block assembly, Includes: Ref. 2 - 8A

1шт.

Order Ref. 9 - 20 when ordering J926152 short block.

1шт.

2

J917313

BEARING CAP

CAP - bearing, main

7шт.

3

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

SCREW, Hex Flg Hd, M14 x 128

14шт.

4

J901685

BUSHING

BUSHING - camshaft, see figure 2-65, Ref. 6

7шт.

5

A77782

PLUG

PLUG - expansion, 58 mm O.D.

1шт.

6

A77586

PLUG

PLUG - expansion, 28.9 mm O.D.

1шт.

7

A77506

PLUG

PLUG - expansion, 21 mm O.D.

4шт.

8

J905401

PLUG

PLUG - expansion, 35 mm O.D.

4шт.

8a

J929561

FLANGE BOLT,Hex, M10 x 1.5 x 16mm

BOLT - hex flange, special, 10 - 1.5 x 16 mm, located at single boss above oil fill tube on left-hand side of engine

1шт.

A77716

BLOCK

KIT - block hardware, no longer available, order components separately, Includes: Ref. 9 - 20

1шт.

Order Ref. 9 - 20 when ordering J926152 short block.

1шт.

9

A77530

PLUG

PLUG - expansion, 30 mm O.D.

2шт.

10

J920706

PLUG

PLUG - expansion, 22 mm O.D., not used in this application

2шт.

11

41-3044

PLUG,Exp, 2 3/4"

PLUG, Exp, 2 3/4"

1шт.

11a

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

O-RING - sealing, 66 mm ID

1шт.

12

J901846

PIN,12.01mm OD x 24mm L

PIN - dowel

4шт.

13

J906619

PLUG,1/8" - 27

PLUG - hex, 1/8 inch PT

6шт.

14

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

5шт.

15

A77505

PLUG

PLUG - hex socket, 3/4 inch PT

2шт.

16

A77533

PLUG

PLUG - hex socket, 1 inch PT

1шт.

17

J928031

NOZZLE,8.5mm OD x 30mm L

NOZZLE - piston cooling, replaces J919003

12шт.

18

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long

2шт.

19

217-103

COCK, DRAIN

VALVE - 1/4 inch PT

1шт.

20

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain, see figure 2-30 for connecting turbocharger parts

1шт.

21

J920762

ELBOW

HOSE - 79 mm (3-1/8 inch)

1шт.

22

J918521

HOSE CLAMP,59mm - 83mm

CLAMP - adj, 1-13/16 - 2-3/4 inch dia.

1шт.

23

J907208

TUBE,50.8 mm DIA x 295.3 mm L

TUBE - water inlet

1шт.

24

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

1шт.

25

J922847

CLAMP

CLAMP - hose

1шт.

26

A77645

TUBE

TUBE - oil dipstick, at block

1шт.

26a

NSS

NOT SOLD SEPARAT

TUBE - oil dipstick extension, for service order J279239 oil tube assembly

1шт.

27

J915026

DIPSTICK

DIPSTICK - oil, engine

1шт.

28

J916288

CLAMP

BRACE - tube support, retains dipstick tube to exhaust manifold

1шт.

29

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

1шт.

30

825-1408

NUT,M8, Cl 8

Nut, , Retains dipstick tube to dipstick tube brace M8, Cl 8

1шт.

31

845-10020

BOLT - heavy hex flange, 10 - 1.50 x 20 mm, retains dipstick tube brace to front boss on top of the exhaust manifold

1шт.

32

J905401

PLUG

PLUG - expansion, 35 mm OD, oil fill hole

1шт.

33

1546461C2

SWITCH

SWITCH - oil pressure, 10 psi, installed in No. 2 oil port on the injection pump side of the engine, replaces 1546461C1

1шт.

34

214-1308

HOSE CLAMP,#8, 1/2", Spring

CLAMP, HOSE, , Retains dipstick tube to dipstick tube brace #8, 1/2", Spring

1шт.

196804A1

KIT

KIT - engine block heater, replaces A77595 kit, Includes: Ref. 35 and 36

1шт.

35

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 120 volt, engine block

1шт.

36

196466A1

ELECTRIC CABLE

CABLE - engine block heater, replaces J905113

1шт.

37

J910517

O-RING

O-RING - heater sealing, engine block heater

1шт.
