(2-66) - CAMSHAFT, 6T-830 EMISSIONS CERTIFIED ENGINE, P.I.N. DAC04#2001 AND AFTER

Запчасти Case 9040B (2-66) - CAMSHAFT, 6T-830 EMISSIONS CERTIFIED ENGINE, P.I.N. DAC04#2001 AND AFTER (02) - ENGINE

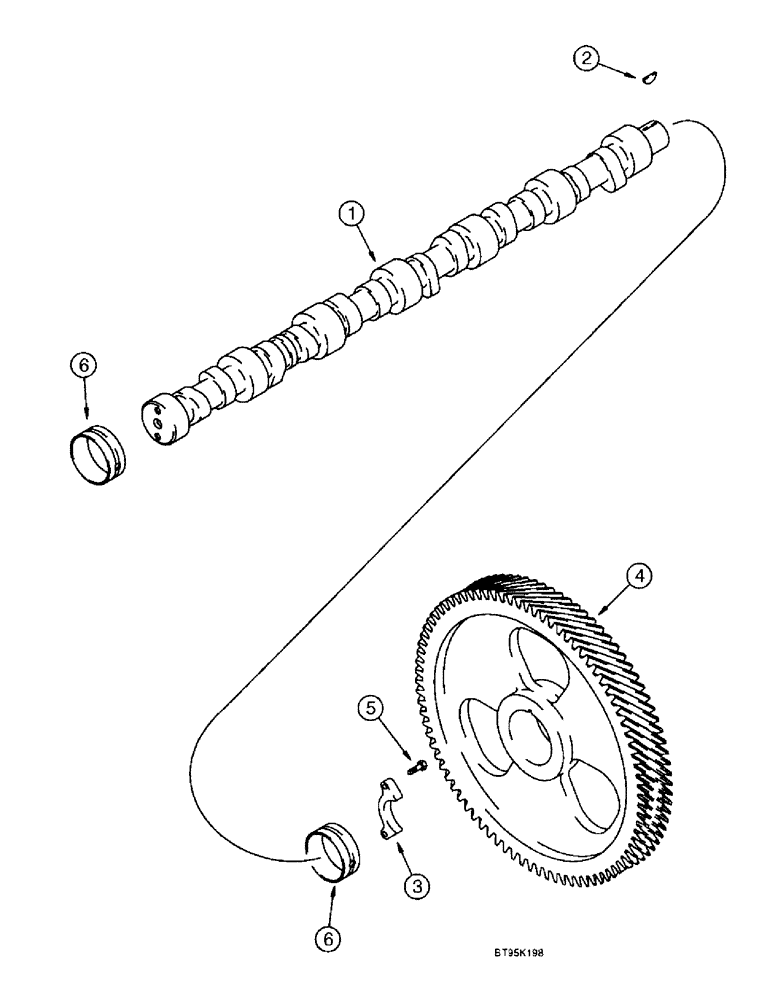

Схема запчастей Case 9040B - (2-66) - CAMSHAFT, 6T-830 EMISSIONS CERTIFIED ENGINE, P.I.N. DAC04#2001 AND AFTER (02) - ENGINE
3
6
6
2
5
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J924471

CAMSHAFT

- engine

1шт.

1

J923478R

REMAN-CAMSHAFT

Reman for new P/N J924471

1шт.

1

J923478C

CORE-CAMSHAFT

Return Number

1шт.

2

836-4065

WOODRUFF KEY,M4 x 6.5 x 15.72

1шт.

3

J927155

SUPPORT

- thrust, camshaft

1шт.

4

J918777

GEAR

- camshaft

1шт.

5

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

6

J901685

BUSHING

- camshaft

7шт.

Выбрано товаров: 0
