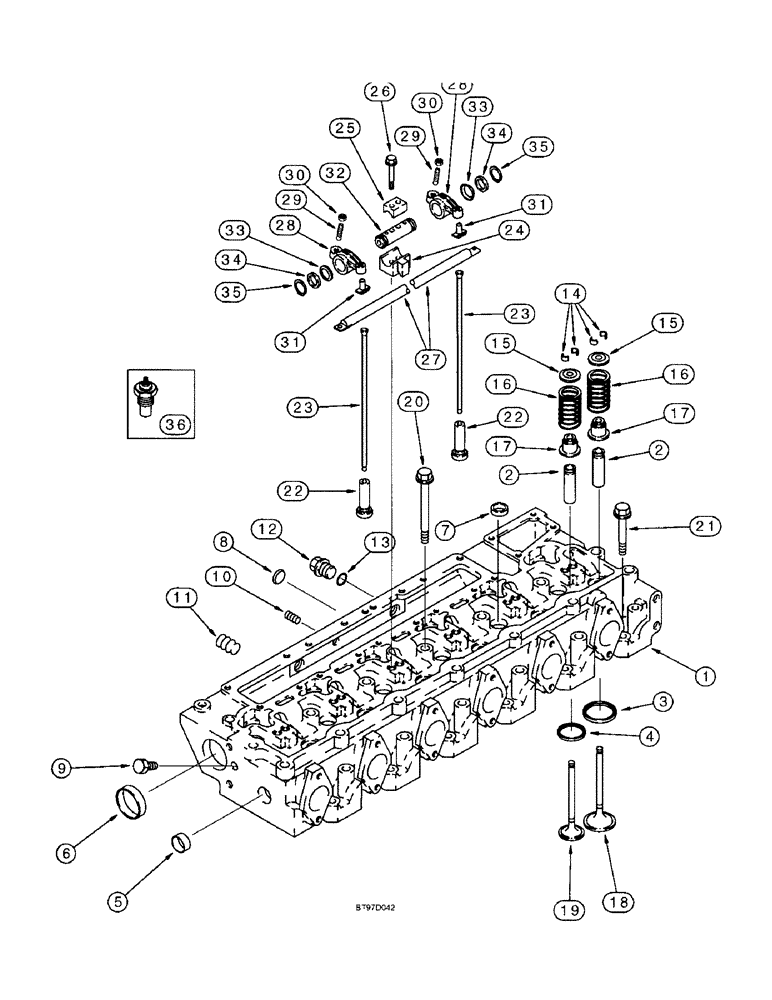

Запчасти Case 9040B (2-56) - CYLINDER HEAD AND VALVE MECHANISM, 6T-830 ENGINE, PRIOR TO P.I.N. DAC04#2001 (02) - ENGINE

JR925644

REMAN-CYLINDER HEAD

HEAD ASSEMBLY - cylinder, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 21

1шт.

JC913111

HEAD (CYLINDER)

RETURN NUMBER - use this part number to return cylinder head core for credit when using a remanufactured assembly, Includes: Ref. 1 - 21

1шт.

J925644

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, with valves, Includes: Ref. 1 - 21

1шт.

1

J920026

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, without valves, no longer available, order J925644 head assembly, Includes: Ref. 2 - 8

1шт.

2

J923564

VALVE GUIDE

GUIDE - valve stem

12шт.

3

J924582

INSERT

- seat, intake valve

6шт.

3

J925468

SEAT, VALVE

INSERT - seat, intake valve, 0.254 mm oversize, service repair only

6шт.

The oversize valve insert is not part of head assembly and must be ordered separately.

1шт.

3

J925470

SEAT, VALVE

INSERT - seat, intake valve, 0.508 mm oversize, service repair only

6шт.

The oversize valve insert is not part of head assembly and must be ordered separately.

1шт.

4

J929005

INSERT

- seat, exhaust valve, replaces J924583 insert

6шт.

4

J929006

INSERT

- seat, exhaust valve, 0.254 mm oversize, service repair only, replaces J925469

6шт.

The oversize valve insert is not part of head assembly and must be ordered separately.

1шт.

4

J929007

INSERT

- seat, exhaust valve, 0.508 mm oversize, service repair only, replaces J925471

6шт.

The oversize valve insert is not part of head assembly and must be ordered separately.

1шт.

5

J920443

PLUG

- expansion, 30 mm O.D., replaces A77530

1шт.

6

A77782

PLUG

- expansion, 58 mm O.D.

2шт.

7

41-1616

PLUG,Cup, 1", Stainless

Replaces A77539 Cup, 1", Stainless

5шт.

8

J912900

PLUG

- expansion, 24 mm

1шт.

9

A77534

PLUG

- hex, 1/16 inch PT

1шт.

10

A77428

PLUG

- hex socket, 1/4 inch PT

1шт.

11

A77429

PLUG

- hex socket, 1/2 inch PT

2шт.

12

J924148

PLUG,M22 x 1.5

- hex magnetic, special, 22 mm - 1.5

2шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug

2шт.

14

J901177

VALVE

KEEPER - valve

24шт.

15

J912976

RETAINER

- valve spring

12шт.

16

J906412

VALVE SPRING

SPRING, VALVE

12шт.

17

J915707

SEAL

- intake and exhaust valve stem and guide

12шт.

18

J924492

STD INLET VALVE

VALVE - intake

6шт.

19

J921444

STD EXHAUST VALVE

VALVE - exhaust

6шт.

20

J917728

BOLT

- cylinder head, 160 mm long

14шт.

21

J917729

BOLT,Flng, M14 x 80mm

BOLT - cylinder head, 80 mm long

12шт.

22

J931623

TAPPET

- valve, push rod, replaces J925031

12шт.

23

J905194

PUSH ROD

ROD - push, rocker arm

12шт.

24

J905870

SUPPORT

- shaft, rocker arm

6шт.

25

J901693

CLAMP

- retaining, shaft, rocker, Serial Range: shaft-support

6шт.

26

868-10065

12 PT SCREW,M10 x 65mm, Cl 12.9

SCREW - 12 point flange, 10 - 1.5 x 65 mm, class 12.9, Rocker shaft to support to cylinder head

12шт.

27

J919677

TUBE

- oil, rocker arm

1шт.

J901717

ROCKER

ARM ASSEMBLY - rocker

12шт.

28

NSS

NOT SOLD SEPARAT

ARM - rocker, Includes: Ref. 29 - 31

1шт.

29

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

30

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

31

NSS

NOT SOLD SEPARAT

INSERT - rocker

1шт.

32

J919435

SHAFT

- rocker

6шт.

33

J906100

SPRING CUP

WASHER - spring

12шт.

34

J907206

WASHER,22.5mm ID x 30mm OD x 1mm Thk

- flat, special

12шт.

35

100-1187

SNAP RING,#87, Ext

Ring, Snap, (Replaces B18206) #87, Ext

12шт.

36

1983238C1

SENSOR,1/2" - 14

SENDER - engine coolant temperature, installed in middle, left-hand side of cylinder head

1шт.

The 1983238C1 engine coolant sender is still used in the hole in the block that has 1/2" NPTF thread. The 159147A1 engine coolant sender goes into 153493A1 reducer bushing. These have M16 x 1.5 metric thread. See 9020B catalog, figure 2-56 artwork, where Ref. 1 is pointing. There are two threaded holes with an unthreaded hole between them. The reducer bushing goes into the hole to the left. The 9010B through 9045B excavators actually use two engine coolant senders to activate two different cab warning funct

1шт.
